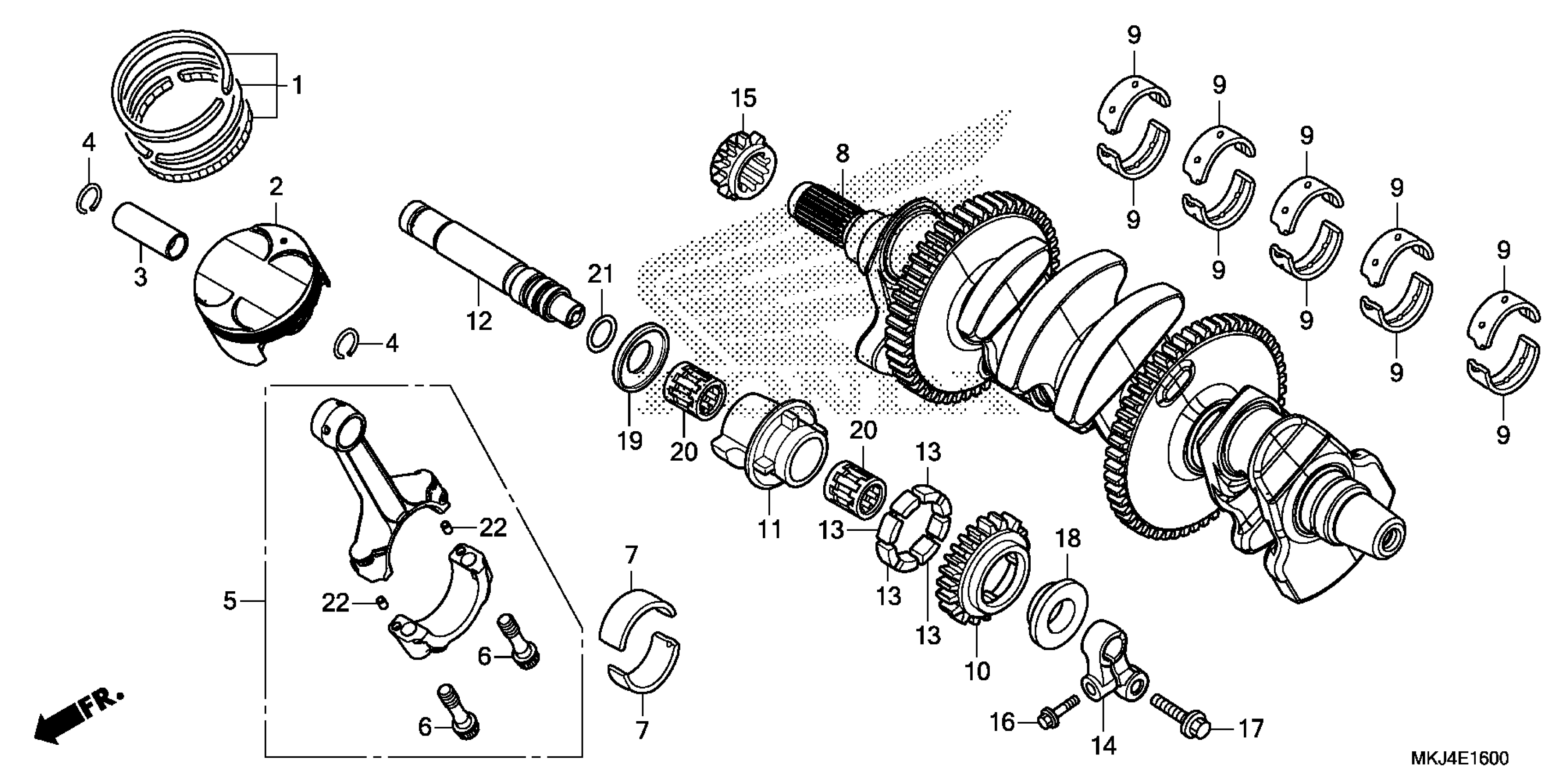

Honda CB1000RAAC (19) MOTORCYCLE, JPN, VIN# JH2SC801-KK100001 TO JH2SC801-KK199999 CRANKSHAFT@PISTON Diagram

RING SET, PISTON (STD)

13031-MEL-010

$50.32

RING SET, PISTON (OVER SIZE) (0.25) | (Optional).

13041-MEL-010

$47.83

PISTON

13101-MKJ-D00

$267.34

PISTON (O.S. 0.25) | (Optional).

13103-MKJ-D00

$263.52

PIN, PISTON

13111-MCJ-750

$16.38

CLIP, PISTON PIN (17MM)

13112-MEL-000

$2.57

ROD ASSY., CONNECTING

13210-MKJ-D00

$217.84

BOLT, CONNECTING ROD

13213-MEL-003

$5.75

BEARING A, CONNECTING ROD (BLUE)

13214-MEL-003

$12.84

BEARING B, CONNECTING ROD (BLACK)

13215-MEL-003

$12.10

BEARING C, CONNECTING ROD (BROWN)

13216-MEL-003

$12.10

BEARING D, CONNECTING ROD (GREEN)

13217-MEL-003

$12.10

BEARING E, CONNECTING ROD (YELLOW)

13218-MEL-003

$12.10

CRANKSHAFT

13310-MKJ-D00

$1,260.25

BEARING B, CRANKSHAFT (BROWN)

13314-MEL-003

$11.13

BEARING C, CRANKSHAFT (GREEN)

13315-MEL-003

$10.50

BEARING D, CRANKSHAFT (YELLOW)

13316-MEL-003

$10.50

BEARING E, CRANKSHAFT (PINK)

13317-MEL-003

$10.50

BEARING F, CRANKSHAFT (RED)

13318-MEL-003

$10.50

GEAR, BALANCER (26T)

13421-MEL-D20

$99.05

WEIGHT, BALANCER

13430-MEL-000

$120.79

SHAFT, BALANCER

13431-MEL-000

$98.21

RUBBER, DAMPER

13435-MAT-000

$2.92

HOLDER, BALANCER SHAFT

13436-MM5-000

$55.44

SPROCKET, TIMING (17T)

14312-MEL-000

$34.31

BOLT, FLANGE (6X18)

90002-MCZ-000

$1.49

BOLT, FLANGE (8X25)

90037-GHB-680

$2.30

WASHER A, BALANCER SIDE

90457-MAT-000

$5.69

WASHER B, BALANCER SIDE

90458-MAT-000

$5.26

BEARING B, NEEDLE (18X27X23.8) (BLUE)

91015-MEL-003

$20.93

BEARING C, NEEDLE (18X27X23.8) (WHITE)

91016-MEL-003

$20.93

BEARING D, NEEDLE (18X27X23.8) (GREEN)

91017-MEL-003

$20.02

O-RING (15X2.5) (Honda Code 0386995)

91302-377-000

$5.31

PIN C, DOWEL (4X6.5)

94303-04065

$2.14
