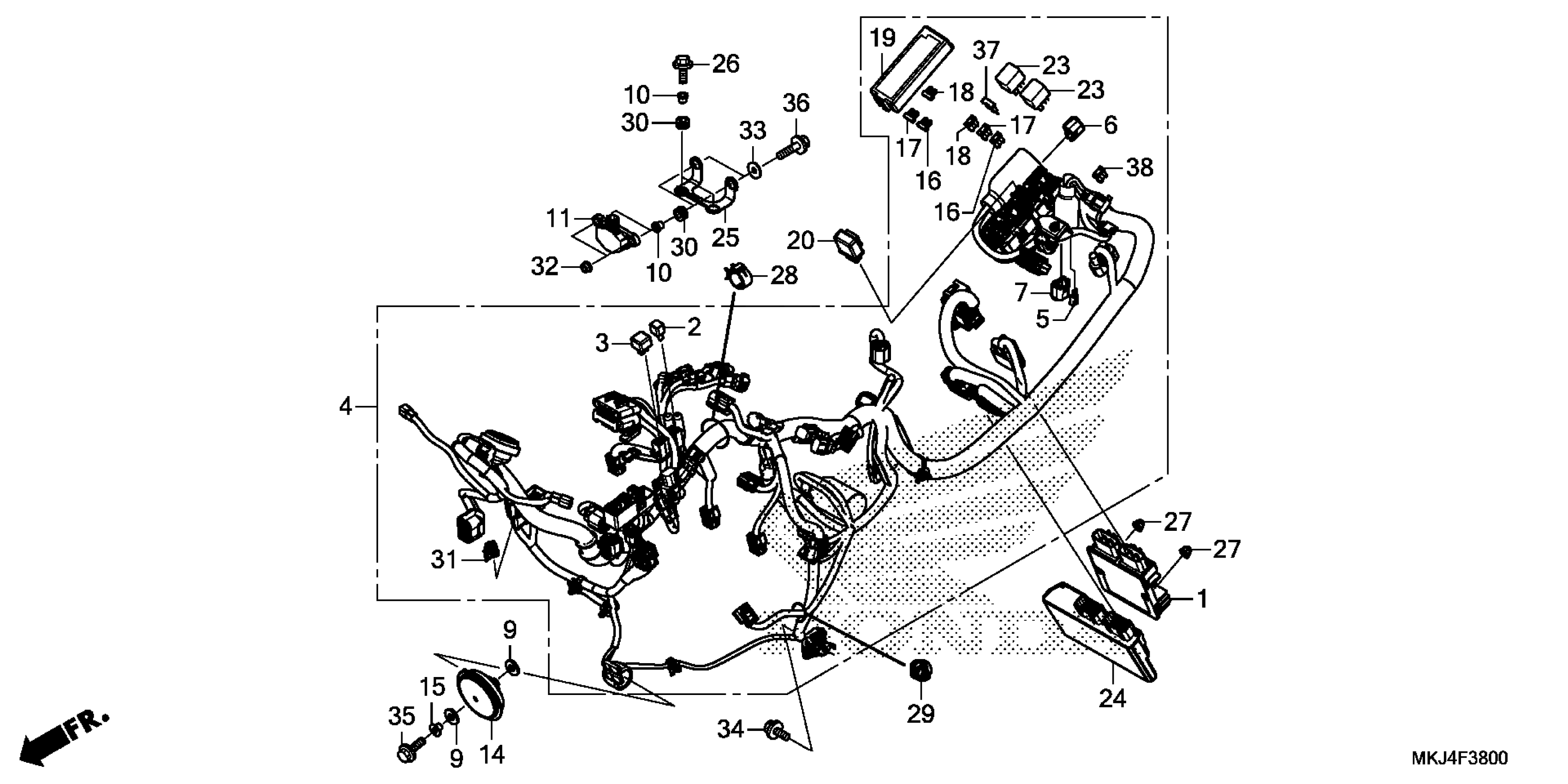

Honda CB1000RAAC (18) MOTORCYCLE, JPN, VIN# JH2SC801-JK000001 TO JH2SC801-JK099999 WIRE HARNESS Diagram

#

Description
Price

1

RECTIFIER, REGULATOR

31600-MKJ-D01

$349.28

2

RESISTOR

31700-GFZ-J01

$9.26

3

RECTIFIER, SILICON

31700-MM8-610

$23.09

4

WIRE HARNESS

32100-MKJ-A02

$1,556.62

5

CONNECTOR, DIODE (2P) (3A)

32146-S84-003

$13.70

6

CAP, DUMMY (WPC 4P 090 M) (NATURAL)

32605-GEV-761

$7.69

7

CAP, DUMMY (4P) (RED) (Honda Code 7679160)

32606-GEV-761

$4.18

9

RUBBER, TAILLIGHT BRACKET

33714-KL3-620

$2.32

10

COLLAR, TAILLIGHT SETTING

33715-GB0-900

$2.71

11

SENSOR ASSY., BANK ANGLE

35160-MGS-D31

$138.63

14

HORN (HIGH)

38110-KPP-T01

$32.35

15

COLLAR, HORN SETTING

38117-KFE-701

$0.71

16

FUSE, BLADE (7.5A)

38221-SNA-A31

$2.96

17

FUSE, BLADE (10A)

38221-SNA-A41

$2.96

18

FUSE, BLADE (15A)

38221-SNA-A51

$3.44

19

COVER (UPPER)

38255-MKJ-D00

$9.65

20

RELAY, TURN SIGNAL

38301-KZZ-J01

$52.56

23

RELAY (MICRO ISO 4P) This part replaces 38501-MEL-003.

38501-MKP-DN1

Unavailable

24

PGM-FI UNIT

38770-MKJ-A02

$955.74

25

STAY, BANK ANGLE SENSOR

50355-MKJ-D00

$6.94

26

BOLT, FLANGE (6X16)

90020-GHB-640

$2.09

27

NUT, CAP (6MM)

90308-MT8-000

$2.50

28

CLIP, CABLE (25MM)

90690-GHB-671

$2.01

29

CLAMP, HARNESS

90690-MEF-800

$1.21

30

RUBBER, TAILLIGHT MOUNTING

90851-961-000

$3.56

31

CLIP, CONNECTOR (DARK BROWN)

91535-TA0-003

$3.95

32

NUT, FLANGE (6MM)

94050-06080

$0.60

33

WASHER, PLAIN (6MM)

94103-06800

$0.72

34

BOLT, FLANGE (6X16)

95701-06016-08

$1.34

35

BOLT, FLANGE (6X18) (Honda Code 2410918)

95701-06018-07

$1.50

36

BOLT, FLANGE (6X25)

96001-06025-00

$2.49

37

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$9.92

38

FUSE, MINI (30A) (Honda Code 5359666)

98200-43000

$1.62
