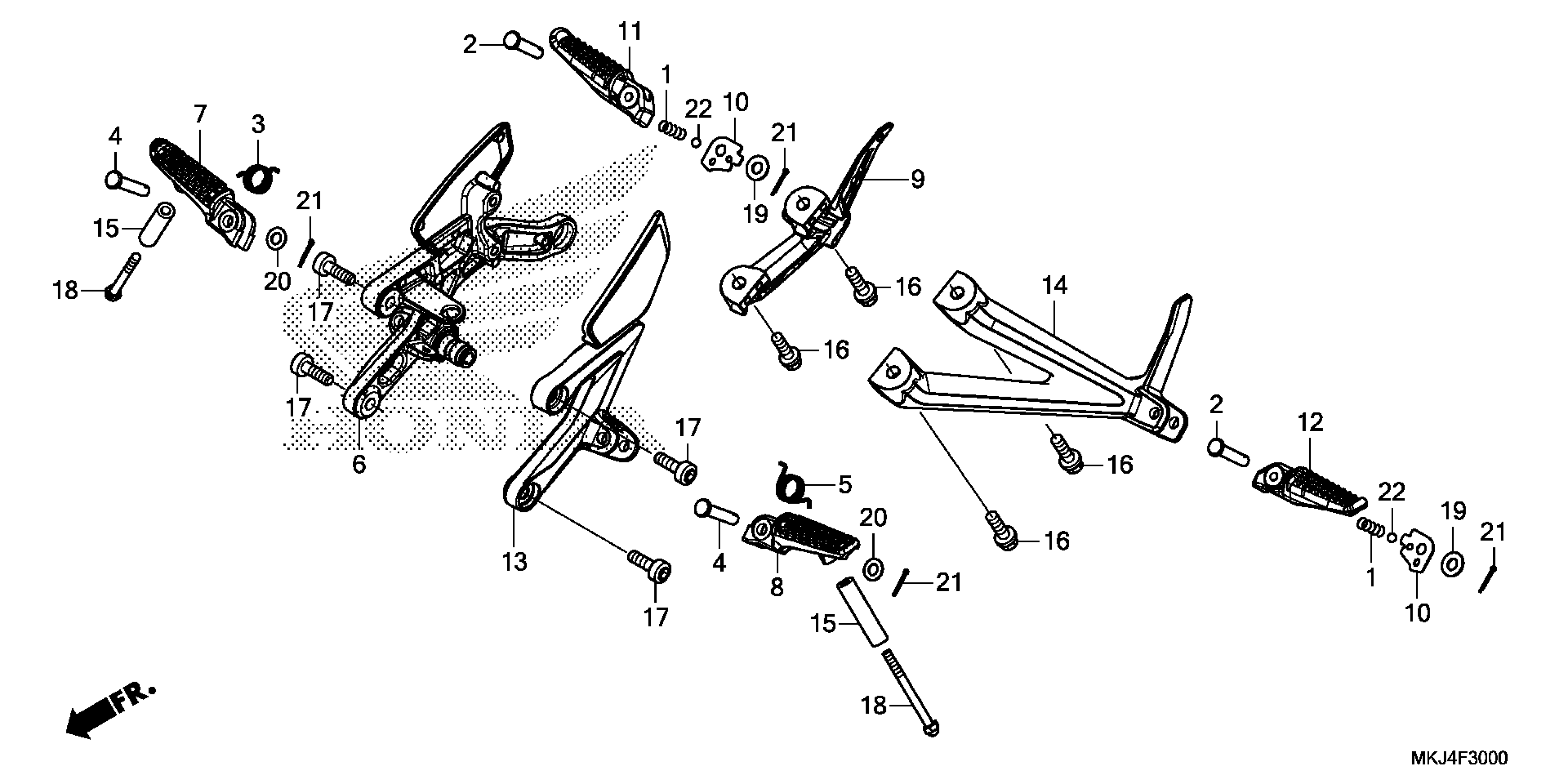

Honda CB1000RAAC (18) MOTORCYCLE, JPN, VIN# JH2SC801-JK000001 TO JH2SC801-JK099999 STEP Diagram

#

Description
Price

1

SPRING, KICK STARTER STOPPER

28333-300-000

$2.80

2

PIN, STEP BAR JOINT

50603-033-010

$3.06

3

SPRING, R. STEP RETURN

50617-MCJ-750

$4.05

4

PIN, STEP BAR

50639-ML0-010

$4.84

5

SPRING, L. STEP RETURN

50644-MCJ-750

$4.05

6

HOLDER, R. MAIN STEP *NHB38M* (MAT ALTAIR SILVER METALLIC)

50655-MKJ-D00ZB

$106.72

7

ARM, R. MAIN STEP (COO) This part replaces 50660-MEL-000.

50660-MEL-305

$45.62

7

ARM, R. MAIN STEP (COO)

50660-MEL-305

$45.62

8

ARM, L. MAIN STEP (COO) This part replaces 50665-MEL-000.

50665-MEL-305

$45.62

8

ARM, L. MAIN STEP (COO)

50665-MEL-305

$45.62

9

HOLDER, R. PILLION STEP

50665-MKJ-D00

$124.99

10

PLATE, PILLION STEP CLICK

50718-MN8-000

$2.29

11

ARM, R. PILLION STEP

50720-MKF-D40

$58.57

12

ARM, L. PILLION STEP

50730-MKF-D40

$58.57

13

HOLDER, L. MAIN STEP *NHB38M* (MAT ALTAIR SILVER METALLIC)

50755-MKJ-D00ZB

$91.91

14

HOLDER, L. PILLION STEP

50765-MKJ-D00

$124.99

15

COLLAR, STEP (LOWER)

51486-MKJ-D00

$7.03

16

BOLT, FLANGE (8X25)

90105-MKF-D40

$2.80

17

BOLT, SOCKET (8X26)

90158-KY4-900

$2.62

18

BOLT, HEX. CAP (6X65)

92501-06065-0A

$1.96

19

WASHER, PLAIN (8MM)

94101-08000

Unavailable

20

WASHER, PLAIN (8MM)

94102-08000

$0.87

21

PIN, COTTER (2.0X15)

94201-20150

$1.04

22

BALL, STEEL (#8) (1/4)

96211-08000

Unavailable
