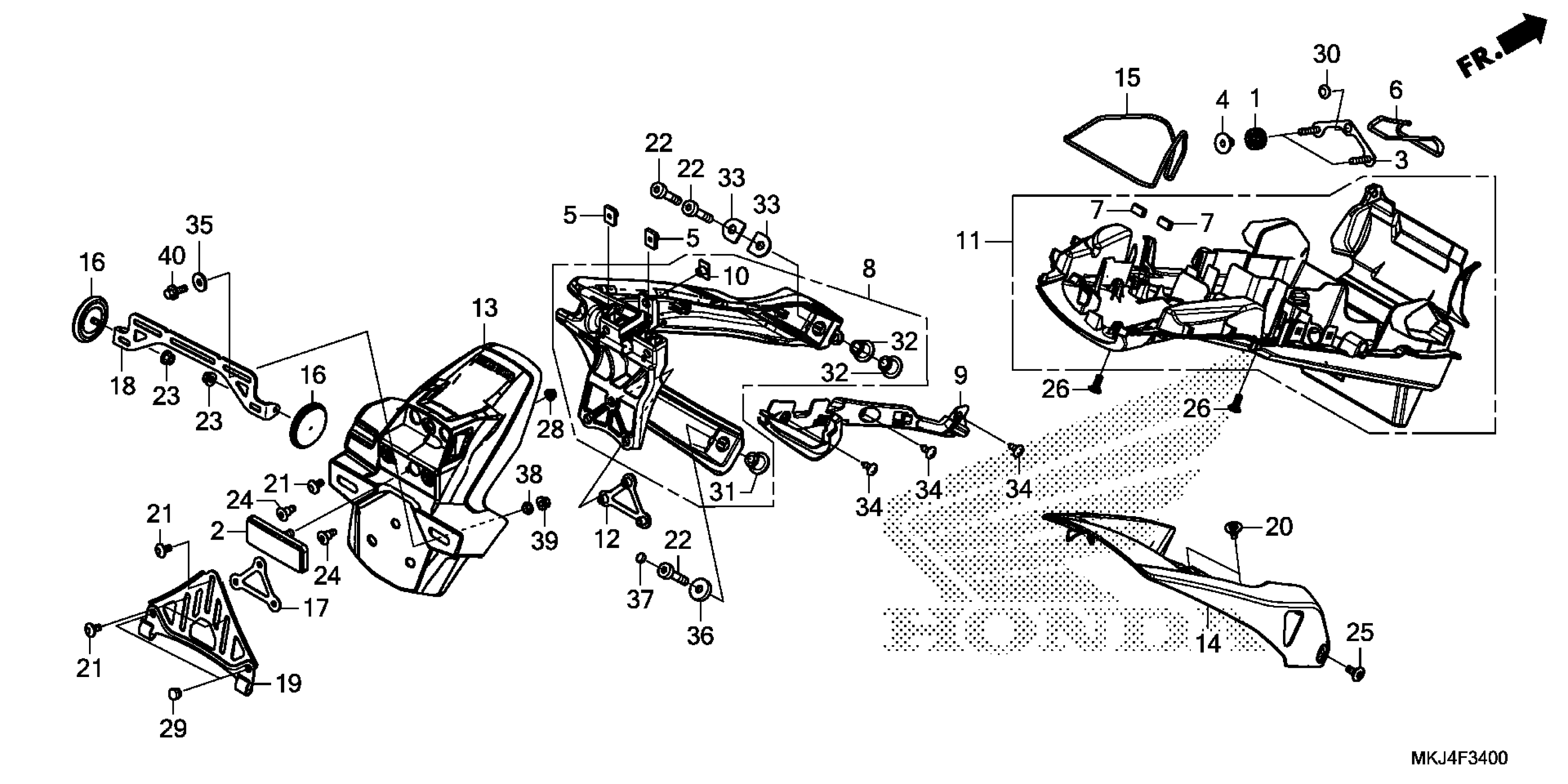

Honda CB1000RAAC (18) MOTORCYCLE, JPN, VIN# JH2SC801-JK000001 TO JH2SC801-JK099999 REAR FENDER Diagram

RUBBER A, TAILLIGHT MOUNTING

33705-KW7-900

$2.49

REFLECTOR, REFLEX (STANLEY)

33741-MS6-921

$13.93

STAY, REGULATE RECTIFIER

50203-MKJ-D00

$9.70

COLLAR, FR. FENDER (BLACK) (FOR RR.)

61104-428-730

$4.21

NUT, HEADLIGHT SETTING

61304-162-013

$3.47

BAND, FR. NUMBER PLATE

64111-181-000

$8.11

RUBBER, PROTECTOR

64121-MEJ-000

$1.49

STAY, RR. FENDER

80101-MKJ-D00

$282.20

COVER, LICENSE LIGHT CORD

80102-MKJ-D00

$17.03

NUT, RR. FENDER

80104-KJ2-000

$4.08

FENDER B, RR.

80105-MKJ-D00

$195.15

STAY, NUMBER BRACKET

80107-MKJ-D00

$11.08

FENDER SET D (TYPE1) (WL)

80110-MKJ-A00ZA

$68.80

FENDER C, RR.

80120-MKJ-D00

$49.54

BAND, TOOL

80123-GN5-900

$2.67

REFLECTOR, RR. REFLEX (RED)

33741-HB9-641

$13.66

PLATE, NUMBER BRACKET

80108-MKJ-A00

$11.80

STAY, REFLECTOR

84700-MKJ-A00

$45.79

BRACKET, NUMBER PLATE

84701-MKJ-A00

$32.33

BOLT, SPECIAL (6MM)

90103-MKE-A00

$2.92

SCREW, PAN (6X12)

90106-MAV-000

$2.18

BOLT, SOCKET (8X40)

90108-MKJ-D00

$4.49

NUT, U (6MM) NUT, FLANGE (6MM)

90301-473-003

$4.07

SCREW, PAN (6X17)

90113-KEY-900

$1.93

BOLT, SPECIAL (6X15)

90114-MKJ-D00

$2.41

SCREW, SPECIAL (6X16)

90116-MFL-D20

$2.59

NUT, FLANGE (5MM) (FUSE RASHI)

90301-MG8-000

$4.66

RUBBER, SEPARATOR MOUNTING

90572-KV3-300

$4.05

PLUG, HOLE (10MM) (NA USE ALT:90852-SA5-000)

90680-692-000

$4.28

COLLAR A, RR. FENDER

91501-MKJ-D00

$6.21

COLLAR B, RR. FENDER

91502-MKJ-D00

$6.49

WASHER, RR. FENDER

91505-MKJ-D00

$5.79

SCREW, TAPPING (5X12)

93903-25280

$1.49

WASHER, PLAIN (6MM)

94103-06800

$1.49

WASHER, PLAIN (8MM)

94103-08800

$1.49

PLUG, HEX. (6MM)

12392-MJ0-000

$4.53

COLLAR, FR. FENDER (RR.)

61105-KM7-910

$3.10

NUT, FLANGE (6MM)

94050-06000

$1.49

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.55
