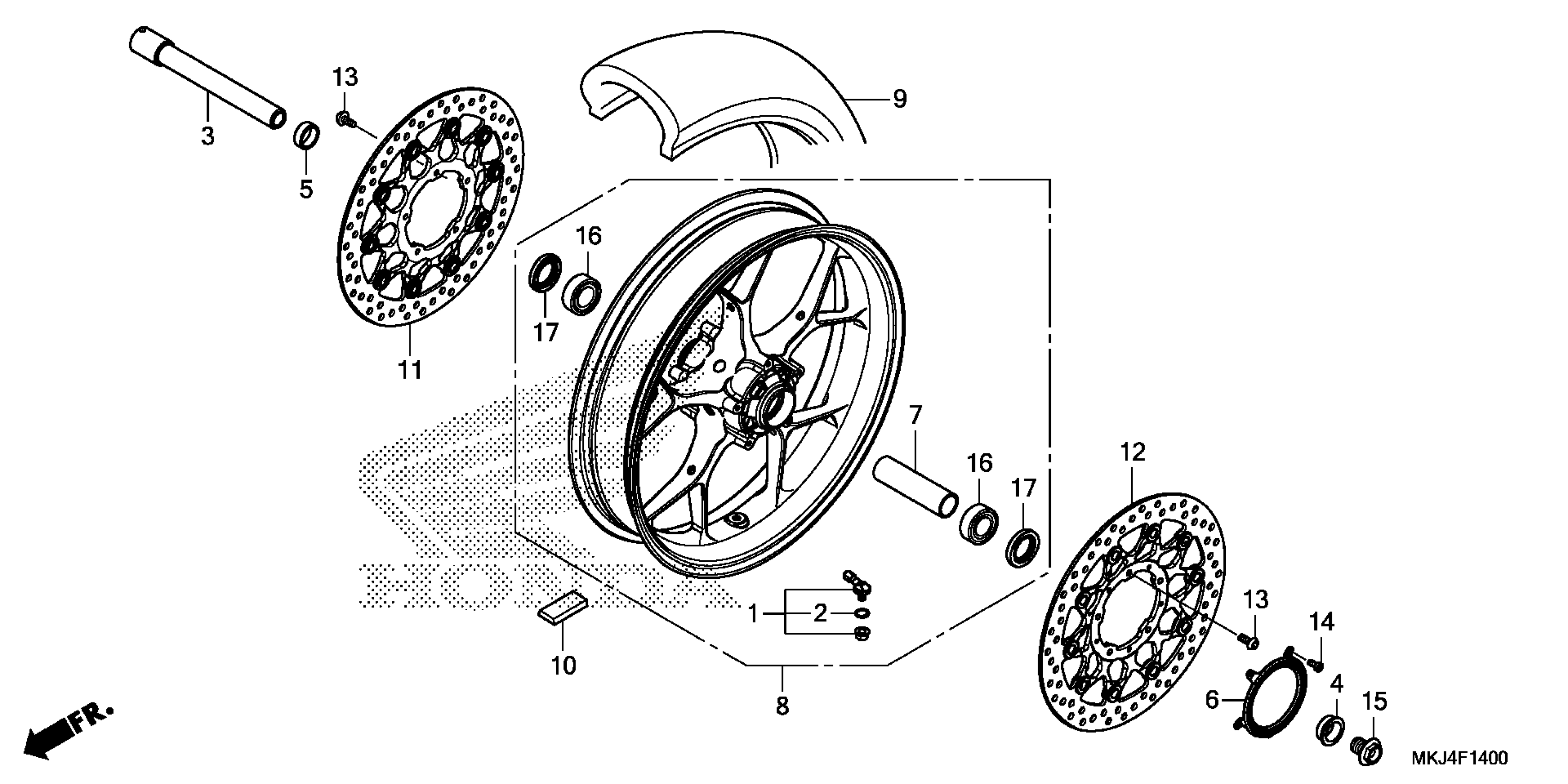

Honda CB1000RAAC (18) MOTORCYCLE, JPN, VIN# JH2SC801-JK000001 TO JH2SC801-JK099999 FRONT WHEEL Diagram

VALVE ASSY., CLAMP IN

42755-MKA-D81

$16.58

O-RING

42758-MKA-D81

$1.52

AXLE, FR. WHEEL

44301-MKF-D60

$87.57

COLLAR, R. FR. WHEEL SIDE

44311-MEL-D20

$12.19

COLLAR, L. FR. WHEEL SIDE

44312-MFL-000

$7.84

RING, FR. PULSER (TYPE2)

44515-MKF-D40ZB

$30.91

COLLAR, FR. WHEEL DISTANCE

44620-MCJ-000

$21.08

WHEEL SUB-ASSY., FR. (TYPE1)

44650-MKJ-D00ZA

$966.95

TIRE, FR. (120/70ZR17) (M/C 58W) (BS)

44711-MKJ-D01

$200.69

TIRE, FR. (120/70ZR17) (M/C 58W) (DUNLOP)

44711-MKJ-D02

$200.69

WEIGHT, BALANCE (10G)

44721-MGH-H21

$3.24

WEIGHT, BALANCE (15G)

44722-MGH-H21

$3.86

WEIGHT, BALANCE (20G)

44723-MGH-H21

$4.18

DISK, R. FR. BRAKE

45120-MKJ-D01

$571.85

DISK, L. FR. BRAKE

45220-MKJ-D01

$571.85

BOLT (6X17)

90106-MJM-D30

$2.66

BOLT, TORX (5X10)

90131-MJM-D30

$3.31

BOLT, FR. AXLE

90305-MEL-D20

$12.62

BEARING, RADIAL BALL (6005)

91052-MCF-003

$15.55

DUST SEAL (31X47X7)

91253-MFL-003

$6.34
