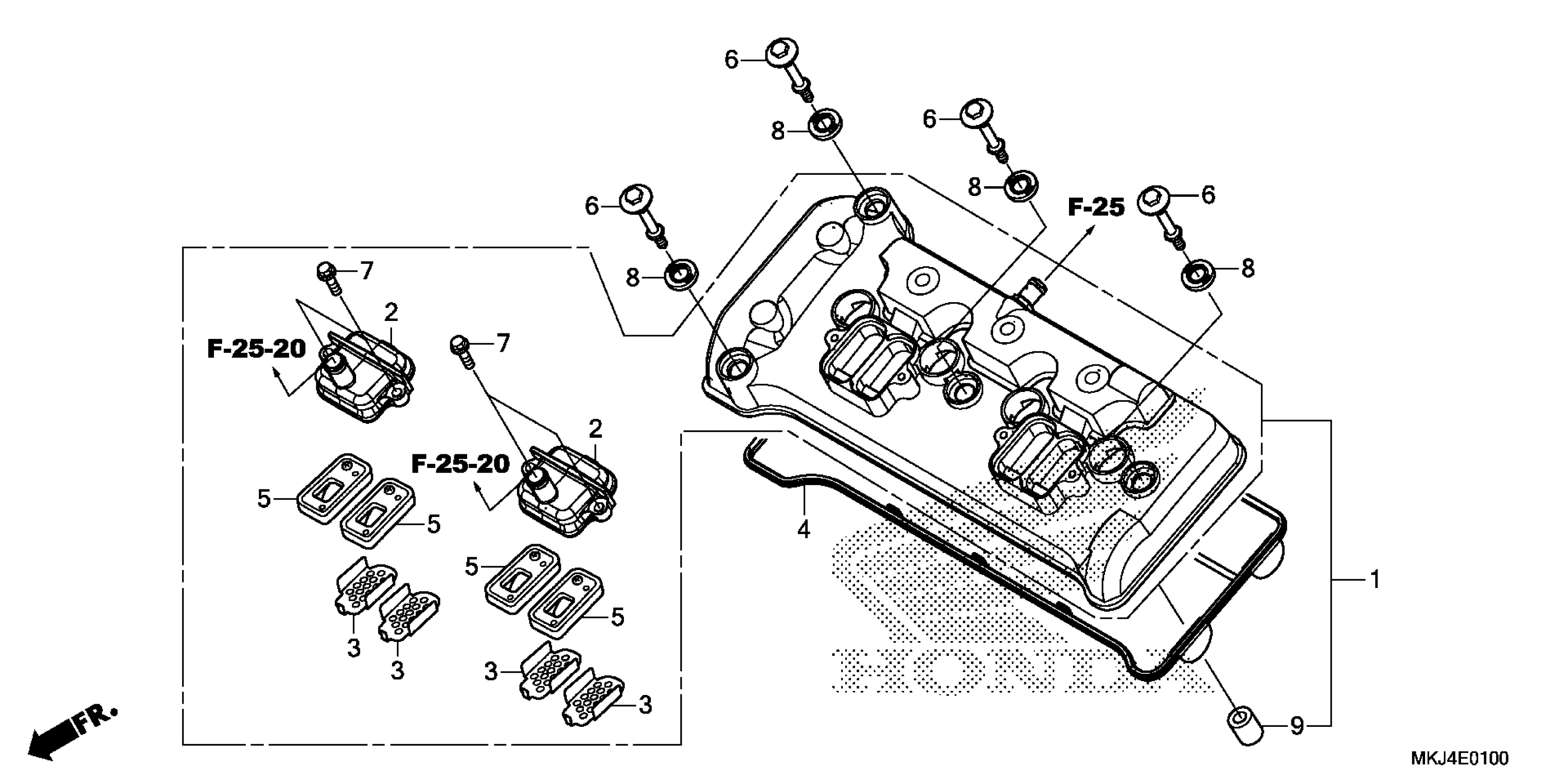

Honda CB1000RAAC (18) MOTORCYCLE, JPN, VIN# JH2SC801-JK000001 TO JH2SC801-JK099999 CYLINDER HEAD COVER Diagram

COVER ASSY., CYLINDER HEAD

12310-MKJ-D00

$466.82

COVER, REED VALVE

12331-MER-D00

$36.52

PLATE, PORT (AI)

12341-MAT-750

$13.98

GASKET, HEAD COVER

12391-MCJ-000

$49.90

VALVE, REED

18601-MCJ-003

$14.48

BOLT, HEAD COVER

90002-MFA-D00

$4.75

BOLT, FLANGE (6X22) (NSHF)

90004-GHB-660

$3.77

RUBBER, MOUNTING (Honda Code 3699139)

90543-MV9-670

$4.94

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25
