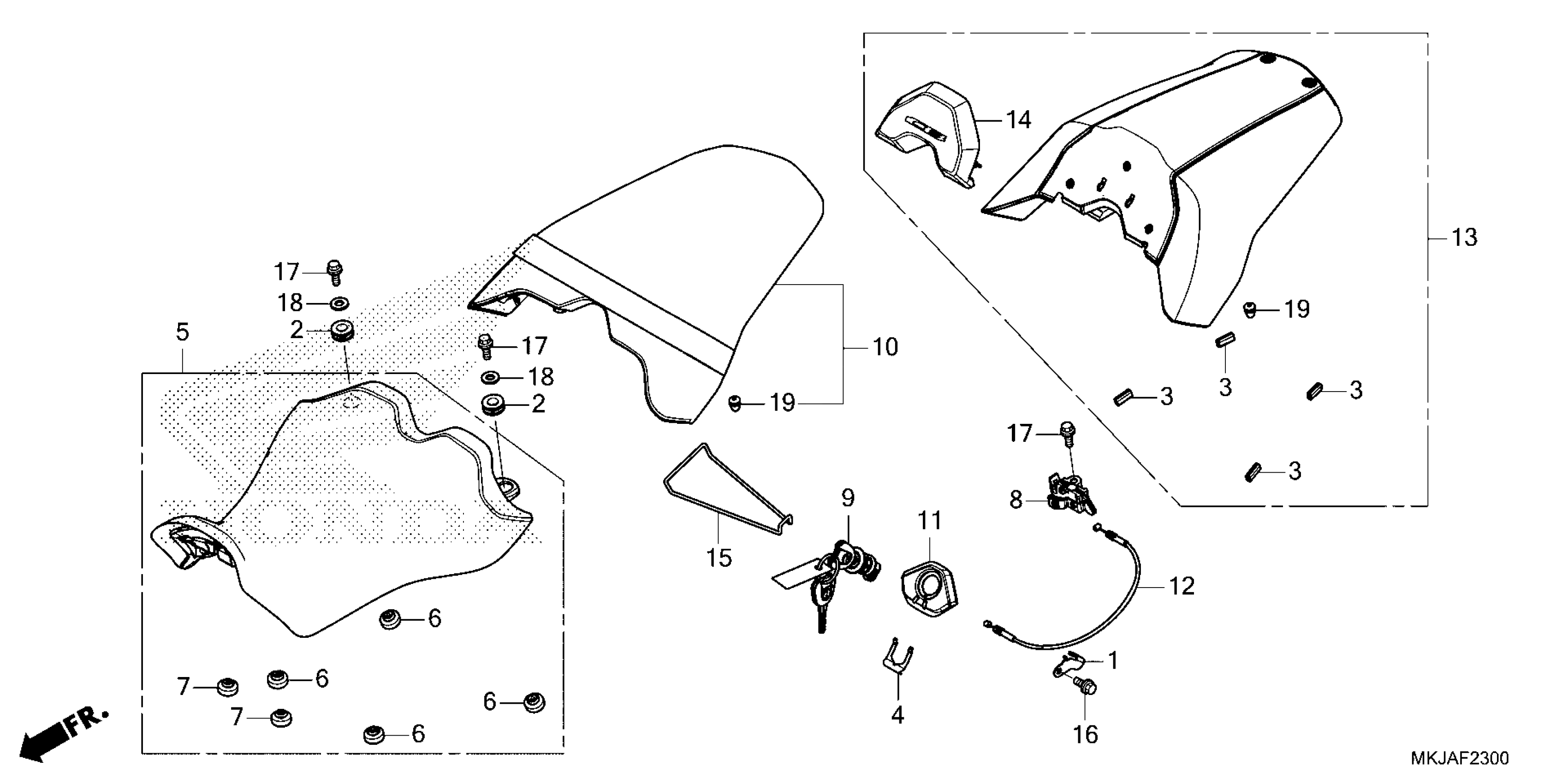

Honda CB1000RA3AC (24) MOTORCYCLE, JPN, VIN# JH2SC801-RK600001 TO JH2SC801-RK699999 SEAT Diagram

Description

Price

PLATE, KEY SETTING

50215-MKJ-D00

$3.86

RUBBER, BATTERY BOX MOUNTING

50329-HA7-670

$2.80

PROTECTOR, RUBBER

77212-MFJ-D00

$1.58

PLATE, LOCK KEY SETTING

75581-MGP-D60

$3.70

SEAT ASSY., MAIN

77100-MKJ-D91

$159.09

RUBBER, SEAT CUSHION

77207-MEL-000

$3.08

RUBBER C, SEAT SETTING

77215-KW7-900

$4.92

HOOK, SEAT CATCH

77220-MJF-A01

$36.86

KEY, SEAT LOCK

77239-MJE-D04

$130.43

SEAT ASSY., PILLION

77300-MKJ-D91

$197.43

COVER, RR. SEAT

77305-MKJ-D00

$3.52

CABLE, SEAT LOCK

77306-MKJ-D01

$14.10

COWL, SEAT NHB01

77400-MKJ-E60ZA

$346.35

PAD, SEAT COWL

77430-MKJ-D10

$50.71

BAND, TOOL

80123-GN5-900

$2.43

BOLT, FLANGE (6X10)

90013-GHB-600

$4.07

BOLT, FLANGE (6X16)

90031-GHB-640

$2.06

WASHER, PLAIN (6MM)

90525-428-900

$1.84

PLUG, CONE TYPE

90899-422-610

$1.81
