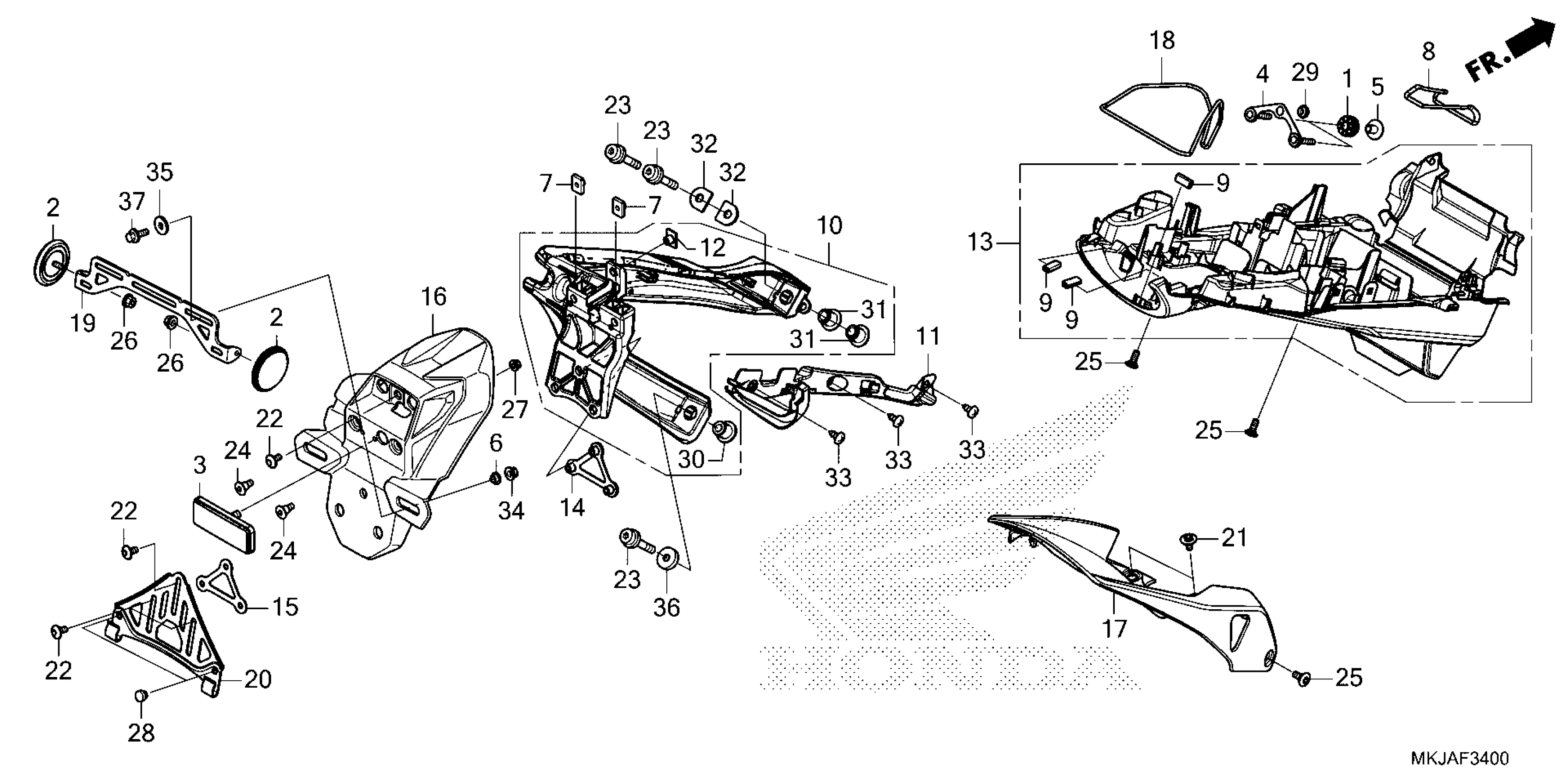

Honda CB1000RA3AC (24) MOTORCYCLE, JPN, VIN# JH2SC801-RK600001 TO JH2SC801-RK699999 REAR FENDER Diagram

RUBBER A, TAILLIGHT MOUNTING

33705-KW7-900

$2.20

REFLECTOR, RR. REFLEX (RED)

33741-HB9-641

$11.90

REFLECTOR, REFLEX (STANLEY)

33741-MS6-921

$13.60

STAY

50203-MKJ-E50

$8.41

COLLAR, FR. FENDER (WHITE) This part replaces 61104-MA6-720.

61104-428-010

$4.22

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.22

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.22

COLLAR, FR. FENDER (WHITE) (FOR RR.)

61104-428-010

$4.22

COLLAR, FR. FENDER (RR.)

61105-KM7-910

$2.88

NUT, HEADLIGHT SETTING

61304-162-013

$3.22

BAND, FR. NUMBER PLATE

64111-181-000

$7.54

PROTECTOR, RUBBER

77212-MFJ-D00

$1.58

STAY, RR. FENDER

80101-MKJ-D00

$256.94

COVER, LICENSE LIGHT CORD

80102-MKJ-D00

$15.51

NUT, RR. FENDER

80104-KJ2-000

$3.80

FENDER B, RR.

80105-MKJ-E50

$143.88

STAY, NUMBER BRACKET

80107-MKJ-D00

$10.09

PLATE, NUMBER BRACKET

80108-MKJ-A00

$10.75

FENDER SET D (TYPE1)

80110-MKJ-A60ZA

$46.88

FENDER C, RR.

80120-MKJ-E50

$42.96

BAND, TOOL

80123-GN5-900

$2.43

STAY, REFLECTOR

84700-MKJ-A00

$41.70

BRACKET, NUMBER PLATE

84701-MKJ-A00

$29.43

BOLT, SPECIAL (6MM)

90103-MKE-A00

$2.80

SCREW, PAN (6X12)

90106-MAV-000

$1.99

BOLT, TORX (8X40)

90108-MKJ-D40

$4.99

SCREW, PAN (6X17)

90113-KEY-900

$1.77

SCREW, SPECIAL (6X16)

90116-MFL-D20

$2.36

NUT, U (6MM) NUT, FLANGE (6MM)

90301-473-003

$3.79

NUT, FLANGE (5MM) (FUSE RASHI)

90301-MG8-000

$4.25

RUBBER, SEPARATOR MOUNTING

90572-KV3-300

$3.68

PLUG, HOLE (10MM) (NA USE ALT:90852-SA5-000)

90680-692-000

$3.90

COLLAR A, RR. FENDER

91501-MKJ-D00

$5.65

COLLAR B, RR. FENDER

91502-MKJ-D00

$5.91

WASHER, RR. FENDER

91505-MKJ-D00

$5.28

SCREW, TAPPING (5X12)

93903-25280

$1.23

NUT, FLANGE (6MM)

94050-06000

$0.59

WASHER, PLAIN (6MM)

94103-06800

$0.71

WASHER, PLAIN (8MM)

94103-08800

$0.86

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.48
