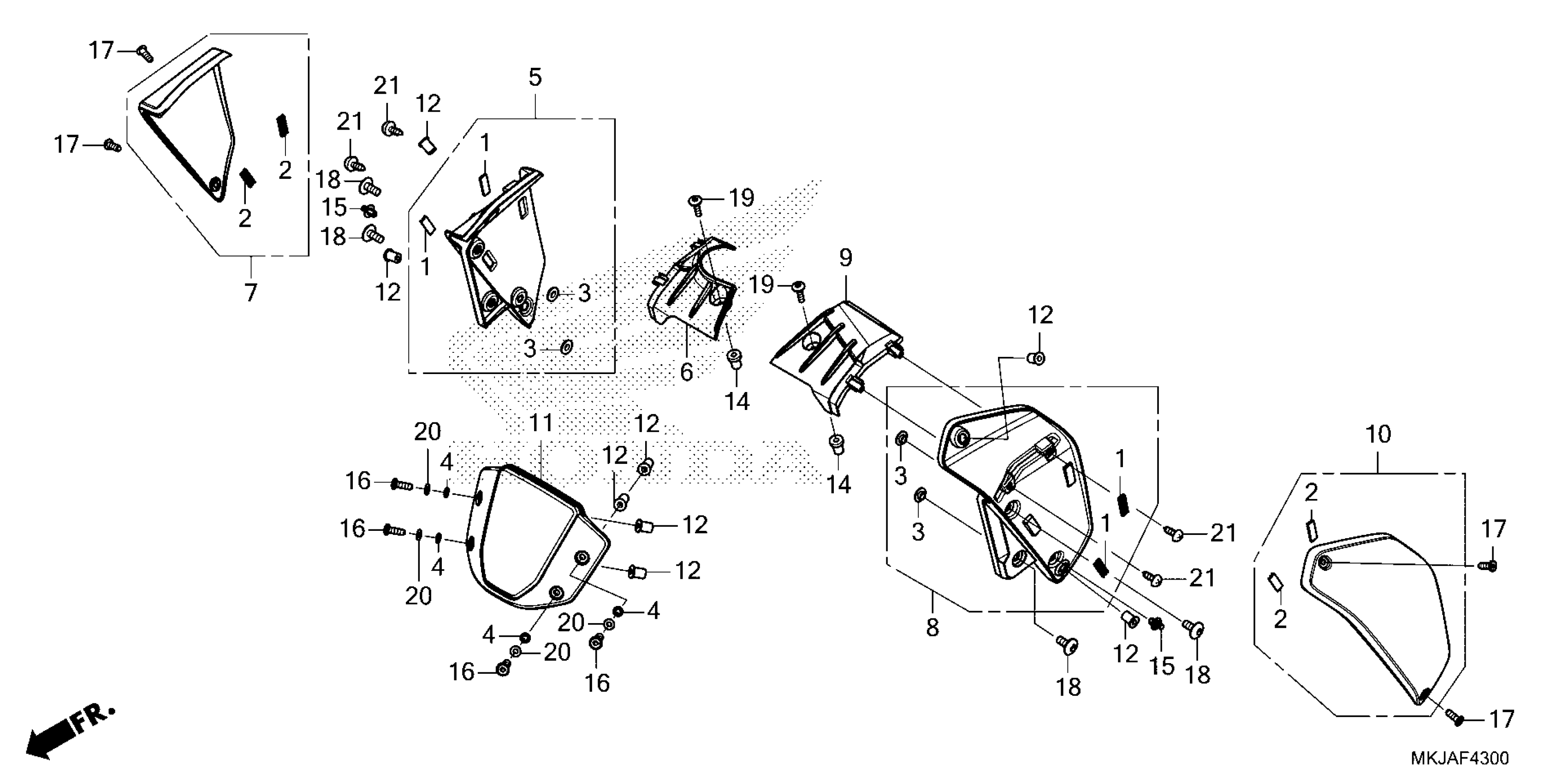

Honda CB1000RA3AC (24) MOTORCYCLE, JPN, VIN# JH2SC801-RK600001 TO JH2SC801-RK699999 METER VISOR@SHROUD Diagram

FASTENER C, DUAL LOCK (8X25)

17541-MJE-D00

$1.20

FASTENER, DUAL LOCK (8X25)

17541-MJP-G50

$2.06

COLLAR, FR. FENDER

61105-MA3-000

$3.46

WASHER, SCREEN SETTING

64205-166-610

$2.01

SHROUD, R.

64321-MKJ-E50

$26.25

PANEL, R. (INNER)

64331-MKJ-E50

$7.64

PANEL, R. SHROUD

64341-MKJ-E60

$187.32

SHROUD, L.

64421-MKJ-E50

$26.25

PANEL, L. (INNER)

64431-MKJ-E50

$7.64

PANEL, L. SHROUD

64441-MKJ-E60

$181.49

VISOR ASSY., METER

67310-MKJ-E60

$189.88

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.20

NUT, WELL (5MM)

90111-MGS-D70

$3.15

RIVET, PUSH (6MM)

90116-K0A-E11

$1.17

BOLT, SPECIAL (5X16)

90116-MKF-D40

$2.32

BOLT, SPECIAL (5X14)

90117-MKF-D40

$2.32

SCREW, PAN (6X14)

90118-MBV-000

$1.72

SCREW, PAN (5X20) (SUS)

90118-MJP-G50

$2.12

WASHER, THRUST (5MM)

90504-964-000

$1.72

SCREW, TAPPING (4X12)

93903-24320

$0.83
