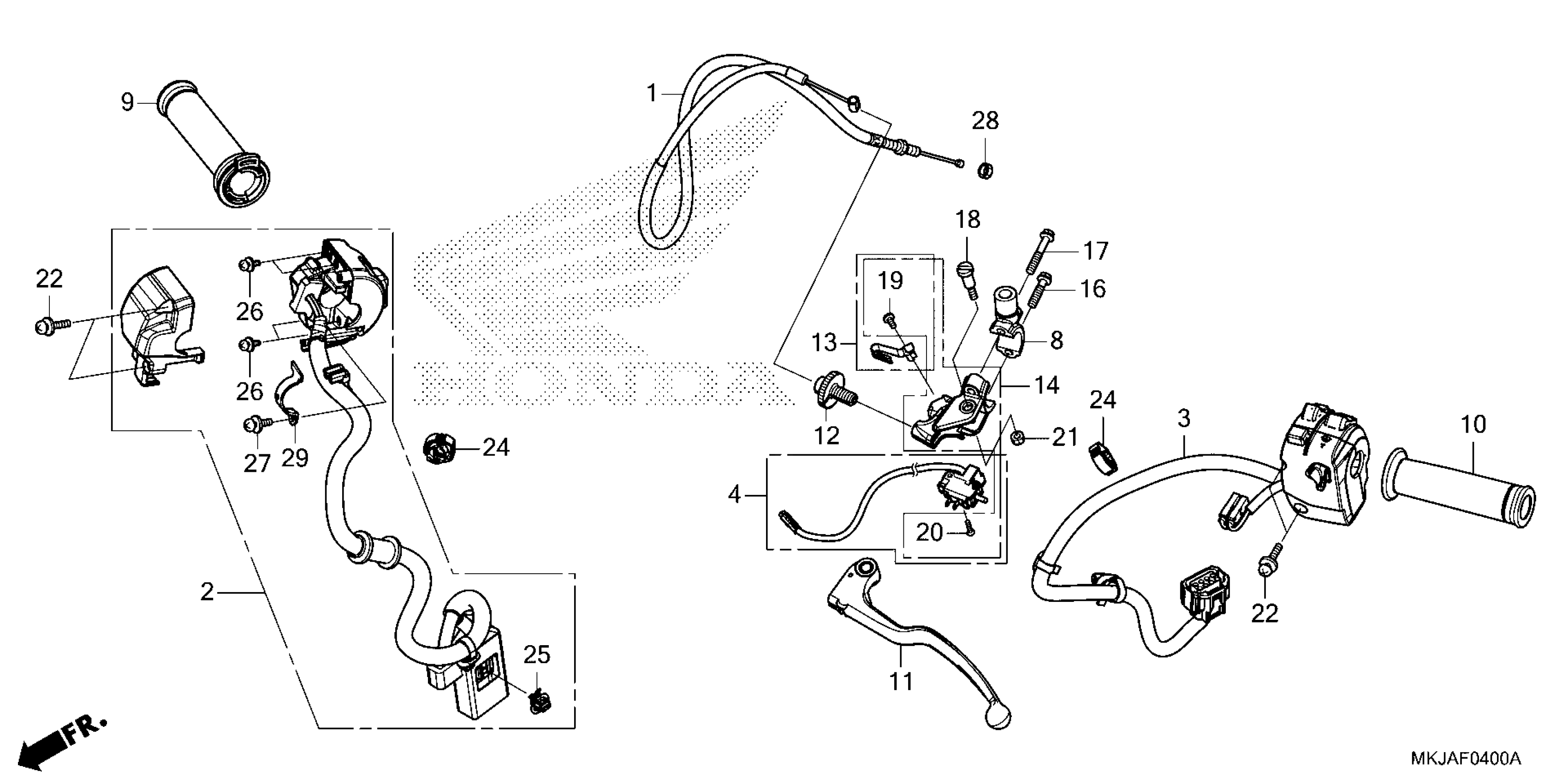

Honda CB1000RA3AC (24) MOTORCYCLE, JPN, VIN# JH2SC801-RK600001 TO JH2SC801-RK699999 HANDLE LEVER@SWITCH@CABLE Diagram

CABLE, CLUTCH

22870-MKJ-D01

$27.08

SW UNIT

35135-MKJ-E53

$210.13

SWITCH, TURN SIGNAL

35200-MKJ-E51

$216.72

SWITCH SET, CLUTCH

35335-MKJ-E50

$19.36

HOLDER, MASTER CYLINDER

45518-MFN-D01

$12.41

GRIP ASSY., THROTTLE

53140-MKF-D41

$34.95

GRIP, L. HANDLE

53166-MY9-890

$18.20

LEVER, L. HANDLE

53182-MKR-D31

$34.33

BOLT, CABLE ADJ.

53183-MKJ-E60

$8.61

SPRING SET, CLUTCH LEVER

53190-MCJ-751

$4.15

BRACKET SET

53195-MKJ-E50

$33.41

BOLT, FLANGE (6X25)

90021-GHB-680

$2.26

BOLT, FLANGE (6X35)

90021-GHB-720

$2.44

BOLT, LEVER PIVOT

90122-MCJ-750

$4.80

SCREW, PAN (4X10)

90123-MCJ-751

$1.49

SCREW, PAN (3X20)

90124-MKJ-E51

$1.49

NUT, U (6MM)

90301-MCJ-750

$2.26

SCREW-WASHER (5X25)

90508-MGE-D00

$1.49

CLAMP, HARNESS

90690-MEF-800

$1.49

CLIP, CONNECTOR (BEIGE)

91533-SDA-003

$2.41

SCREW-WASHER (4X8)

93892-04008-08

$1.49

SCREW-WASHER (4X8) This part replaces 93892-04008-18.

93892-04008-08

$1.49

SCREW-WASHER (5X16)

93892-05016-08

$1.49

NUT, HEX. (8MM)

94031-08070

$1.49

PLATE A, SETTING

37971-MKR-D31

$4.52
