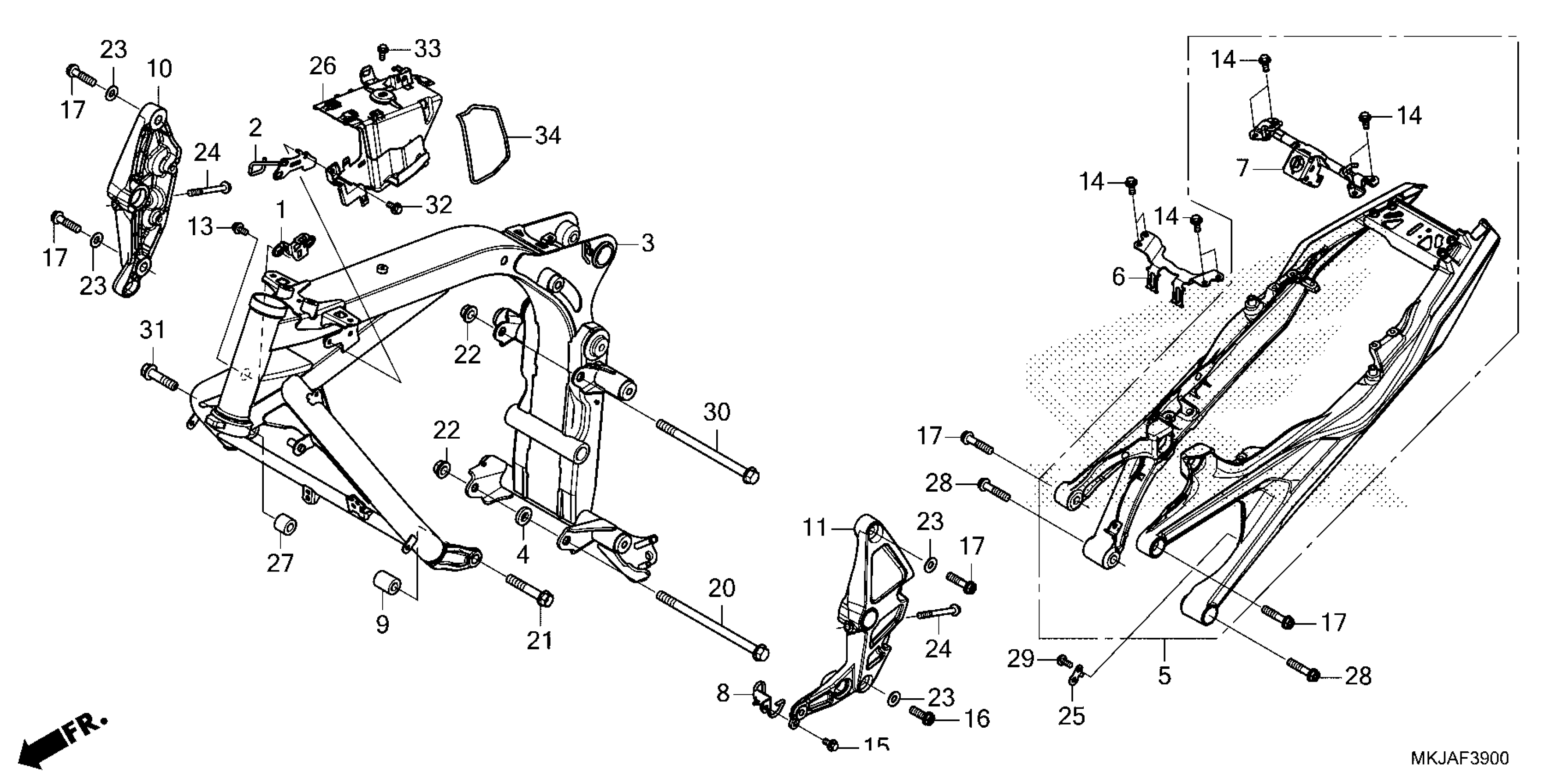

Honda CB1000RA3AC (24) MOTORCYCLE, JPN, VIN# JH2SC801-RK600001 TO JH2SC801-RK699999 FRAME Diagram

#

Description
Price

1

STAY, R. CONNECTOR

32125-MKJ-D00

$6.86

2

STAY, CLIP

32206-MKJ-E50

$10.90

3

FRAME *NHA86M*

50100-MKJ-E50ZA

$1,437.28

4

COLLAR, ENGINE HANGER

50192-MFN-D00

$5.83

5

RAIL, SEAT *NHA86M*

50200-MKJ-E50ZB

$964.32

6

PLATE, FR. CROSS

50204-MKJ-E50

$10.62

7

PIPE, CENTER CROSS

50206-MKJ-D00

$255.06

8

CLAMP, DRAIN TUBE

50217-MKJ-D00

$7.06

9

COLLAR, FR. ENGINE HANGER

50350-MKJ-D00

$15.75

10

BRACKET, R. PIVOT

50600-MKJ-E60

$114.90

11

BRACKET, L. PIVOT

50700-MKJ-E60

$114.90

13

BOLT, FLANGE (6X10)

90030-GHB-610

$1.93

14

BOLT, FLANGE (6X12)

90031-GHB-620

$2.06

15

BOLT, FLANGE (6X12)

90033-GHB-620

$1.90

16

BOLT, FLANGE (10X30)

90042-GHB-700

$2.78

17

BOLT, FLANGE (10X40)

90042-GHB-740

$3.06

20

BOLT, FLANGE (12X203)

90104-MKJ-D00

$16.25

21

BOLT, FLANGE (12X70)

90162-MKJ-D00

$11.65

22

NUT, FLANGE (12MM)

94050-12070

$1.23

23

WASHER, PLAIN (10.5X22X1.6)

94101-10800

$1.71

24

BOLT, FLANGE (8X75)

90035-GHB-810

$3.36

25

STAY, HARNESS CLIP

32157-MJM-D00

$4.19

26

TRAY, ELECTRIC

50333-MKJ-E50

$13.00

27

COLLAR, FR. ENG HGR

50350-MKJ-E50

$10.01

28

BOLT, FLANGE (10X50)

90042-GHB-760

$3.23

29

BOLT (6X14)

90101-MKJ-J50

$2.41

30

BOLT, FLG (12X175)

90102-MKJ-E50

$13.04

31

BOLT, FLANGE (12X55)

90165-MKJ-E50

$10.93

32

BOLT, FLANGE (6MM)

90112-KY0-860

$2.71

33

BOLT, FENDER SETTING (5X11.5)

91509-HC0-000

$3.62

34

BAND, TOOL

89012-KZL-930

$1.13
