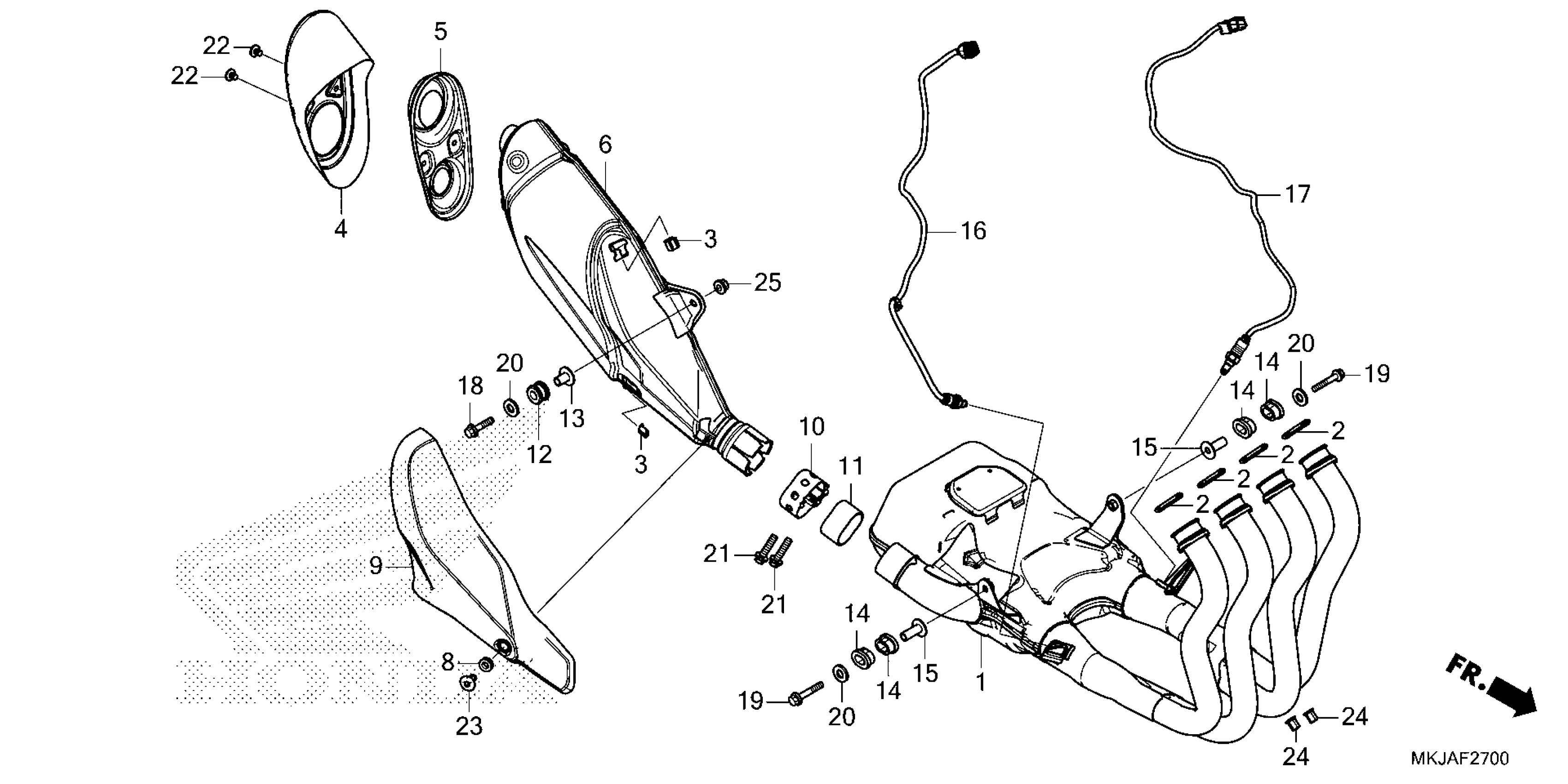

Honda CB1000RA3AC (23) MOTORCYCLE, JPN, VIN# JH2SC801-PK500001 TO JH2SC801-PK599999 EXHAUST MUFFLER Diagram

PIPE, EX.

18150-MKJ-A61

$2,407.29

GASKET, EX. PIPE

18291-MN4-920

$5.07

RUBBER, PROTECTOR GASKET

18293-MCA-A20

$1.90

CAP, TAIL

18306-MKJ-E61

$70.09

CAP, TAIL (INNER)

18307-MKJ-D01

$45.40

MUFFLER COMP This part replaces 18310-MKJ-A61.

18310-MKJ-A62

$1,054.51

MUFFLER COMP

18310-MKJ-A62

$1,054.51

RUBBER, PROTECTOR MOUNTING

18345-MBT-610

$2.01

COVER, MUFFLER

18350-MKJ-E61

$185.85

BAND, L. MUFFLER

18372-MM5-640

$30.88

GASKET, MUFFLER

18391-ML0-003

$26.89

RUBBER, MUFFLER MOUNTING

18421-MGC-JB0

$4.56

COLLAR, MUFFLER MOUNTING

18422-MGC-JB0

$5.79

RUBBER, EX. PIPE MOUNTING

18422-MGZ-J00

$8.12

COLLAR, EX. PIPE MOUNTING

18423-MGZ-J00

$4.57

SENSOR, R.

36533-MKJ-E51

$202.75

SENSOR, L.

36534-MKJ-E51

$202.75

BOLT, FLANGE (8X35)

90037-GHB-720

$2.29

BOLT, FLANGE (8X45)

90037-GHB-750

$2.71

WASHER, PLAIN (8MM) (Honda Code 2920007)

90101-ML0-720

$3.66

BOLT, FLANGE (8X35)

90103-KCM-620

$1.46

BOLT, SPECIAL (6X8)

90106-MKJ-D00

$2.80

SCREW, PAN (6X12)

90113-GFP-B00

$3.41

NUT, FLANGE (7MM)

90304-MM5-000

Unavailable

NUT, FLANGE (8MM)

94050-08040

$1.35
