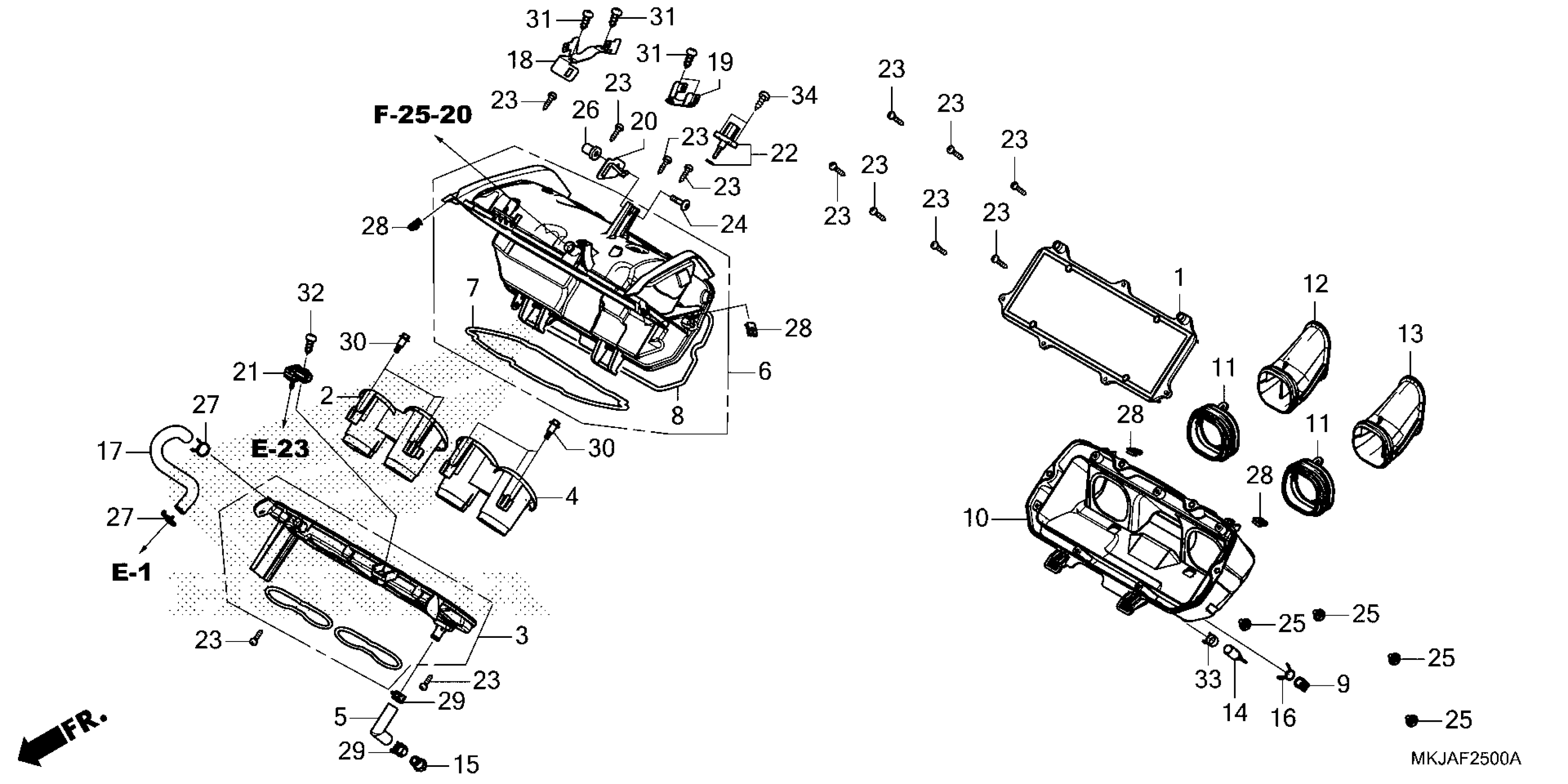

Honda CB1000RA3AC (23) MOTORCYCLE, JPN, VIN# JH2SC801-PK500001 TO JH2SC801-PK599999 AIR CLEANER Diagram

#

Description
Price

1

ELEMENT, AIR CLEANER

17210-MKJ-D00

$40.77

2

FUNNEL, R. AIR

17215-MKJ-D00

$26.44

3

CASE, FR. AIR CLEANER

17220-MKJ-D00

$44.06

4

FUNNEL, L. AIR

17225-MKJ-D00

$26.44

5

TUBE, DRAIN

17227-MKJ-D00

$7.57

6

CASE, RR. A/CLNR

17230-MKJ-E50

$109.07

7

SEAL A, RR. AIR CLEANER HOUSING

17232-MKJ-D00

$6.28

8

SEAL B, RR. AIR CLEANER HOUSING

17233-MKJ-D00

$6.51

9

TUBE, AIR CLEANER DRAIN

17234-KCW-871

$2.38

10

LID, AIR CLEANER HOUSING

17240-MKJ-D00

$102.01

11

JOINT, DUCT

17251-MKJ-D00

$11.03

12

DUCT, R. AIR

17261-MKJ-D00

$21.18

13

DUCT, L. AIR

17262-MKJ-D00

$21.18

14

TUBE, DRAIN

17358-MZ8-G20

$5.37

15

PLUG, BREATHER TUBE

17370-382-870

$3.58

16

CLIP, BREATHER TUBE

17371-174-670

$2.03

17

TUBE, ENGINE BREATHER

17554-MKJ-D00

$11.90

18

STAY, HARNESS

32212-MKJ-E50

$8.53

19

STAY, HARNESS (AIR CLEANER L.)

32213-MKJ-D00

$5.24

20

CLAMP, HARNESS

32218-MKJ-D00

$4.25

21

SENSOR ASSY., MAP

37830-MFP-A51

$115.96

22

SENSOR ASSY., AIR TEMPERATURE

37880-KWW-C01

$40.93

23

SCREW, TAPPING (4X20) (DELTA PT)

90105-MKJ-D00

$2.15

24

BOLT, SOCKET (6X25)

90107-MKF-D40

$3.83

25

SCREW, SPECIAL (5X11)

90122-MJK-N20

$2.29

26

NUT, WELL (6MM)

90301-HN8-000

$2.19

27

CLIP, AIR HOSE (16MM)

90646-657-000

$6.99

28

NUT, CLIP (5MM)

90677-KAN-961

$3.89

29

CLAMP, TUBE (D14.5)

91406-MS8-000

$3.71

30

SCREW, PAN (5MM)

91508-MGP-D00

$3.47

31

SCREW, TAPPING (5X16)

93903-25310

$0.60

32

SCREW, TAPPING (5X20)

93903-25480

$0.84

33

CLAMP, TUBE (D12.5)

95002-41250-08

$2.31

34

SCREW, TAPPING (5X20) (Honda Code 3344546)

93903-254J0

$1.29
