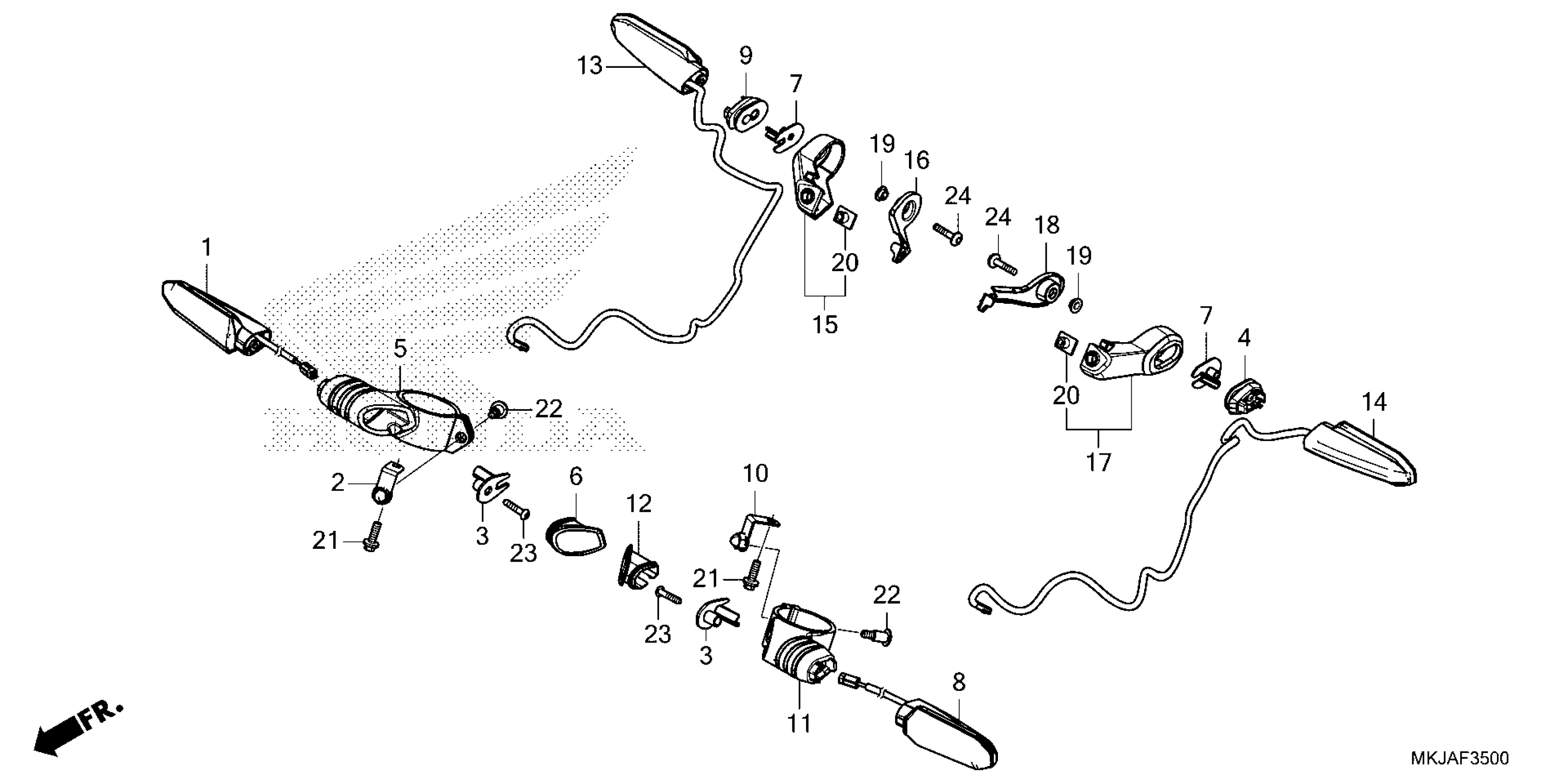

Honda CB1000RA3AC (22) MOTORCYCLE, JPN, VIN# JH2SC801-NK400001 TO JH2SC801-NK499999 TURN SIGNAL Diagram

TURN SIGNAL, R. FR.

33400-MKJ-A61

$121.80

STAY, R. FR. TURN SIGNAL RUBBER

33407-MKJ-D00

$4.93

COLLAR, TURN SIGNAL

33411-MKH-D00

$6.98

RUBBER, R. TURN SIGNAL MOUNTING (L. SIDE)

33412-KZZ-J00

$6.13

RUBBER, R. TURN SIGNAL MOUNTING

33413-MKJ-D00

$16.85

COVER, R. TURN SIGNAL RUBBER

33414-MKJ-D00

$8.08

COLLAR, TURN SIGNAL

33415-KZZ-J00

$5.38

TURN SIGNAL, L. FR.

33450-MKJ-A61

$121.80

RUBBER, L. TURN SIGNAL MOUNTING (R. SIDE)

33452-KZZ-J00

$6.13

STAY, L. FR. TURN SIGNAL RUBBER

33457-MKJ-D00

$4.72

RUBBER, L. TURN SIGNAL MOUNTING

33463-MKJ-D00

$16.85

COVER, L. TURN SIGNAL RUBBER

33464-MKJ-D00

$8.51

TURN SIGNAL ASSY., R. RR.

33600-MKY-L51

$44.73

TURN SIGNAL, L. RR.

33650-MKJ-A61

$125.98

STAY, R. RR. TURN SIGNAL

36100-MKJ-D00

$13.66

COVER, R. TURN SIGNAL STAY

36105-MKJ-D00

$8.18

STAY, L. RR. TURN SIGNAL

36600-MKJ-D00

$13.66

COVER, L. TURN SIGNAL STAY

36605-MKJ-D00

$8.18

COLLAR, FR. FENDER (RR.)

61105-KM7-910

$3.10

NUT, RR. FENDER

80104-KJ2-000

$4.08

BOLT, FLANGE (6X14)

90031-GHB-630

$2.23

BOLT, SOCKET (6X22)

90119-K87-A00

$1.49

BOLT, SPECIAL (5X23)

90119-MJC-A00

$5.73

SCREW, PAN (5X25)

90120-MKJ-D00

$2.57
