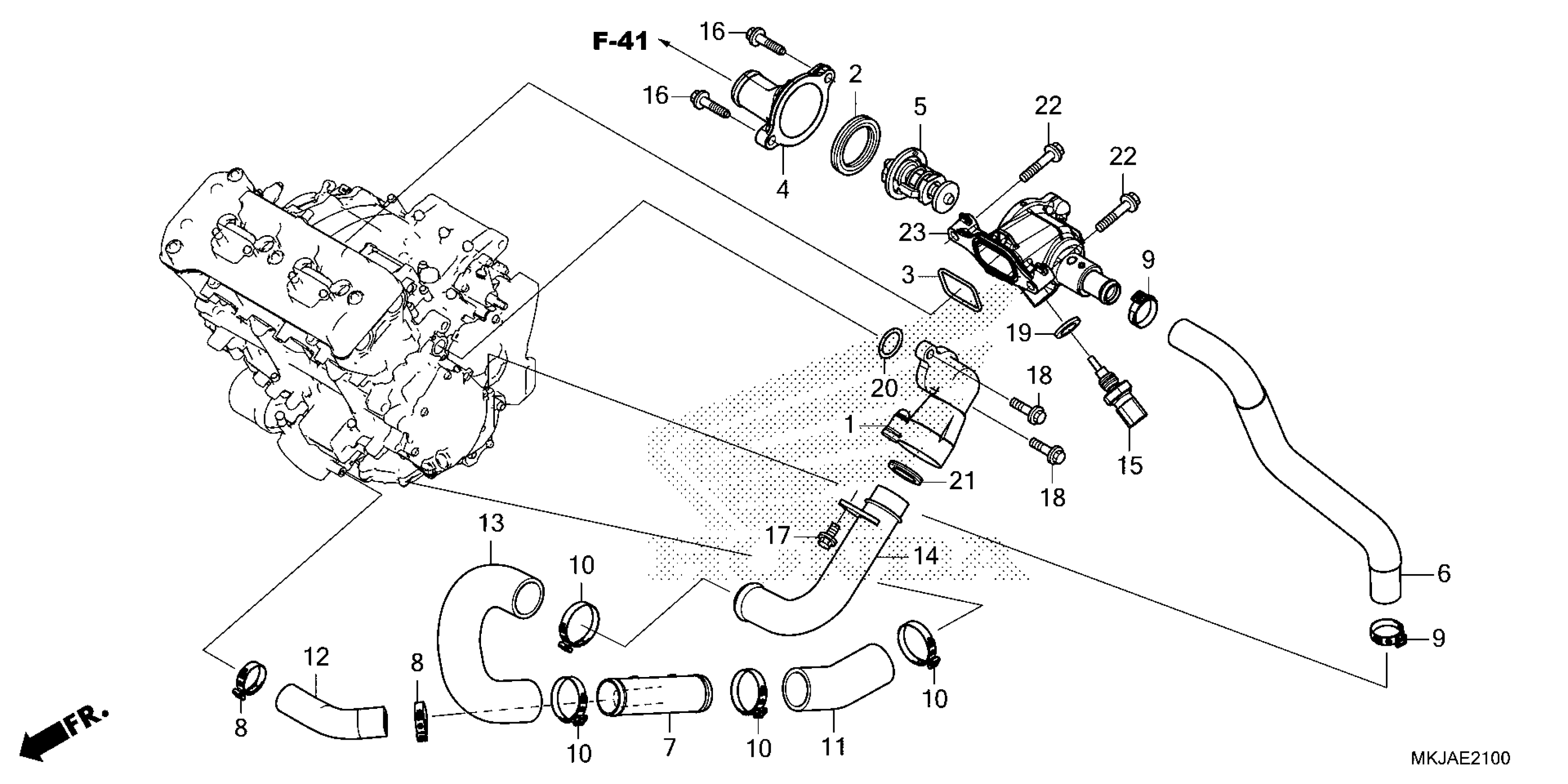

Honda CB1000RA3AC (22) MOTORCYCLE, JPN, VIN# JH2SC801-NK400001 TO JH2SC801-NK499999 THERMOSTAT Diagram

JOINT, WATER

19060-MFN-D00

$55.32

RUBBER, THERMOSTAT

19305-KV3-010

$5.64

GASKET, THERMOSTAT CASE

19312-MFG-D00

$2.85

COVER, THERMOSTAT

19315-MKJ-D00

$40.70

THERMOSTAT

19320-MKF-D41

$63.84

HOSE, BYPASS

19506-MKJ-D00

$17.93

JOINT, HOSE (THREE-WAY)

19507-MFN-D00

$11.07

CLAMP, HOSE (D19)

19511-MKF-D41

$9.52

CLAMP, HOSE (D21)

19512-MKF-D41

$7.94

CLAMP, HOSE (D29.8)

19514-MKF-D41

$9.21

HOSE A, CYLINDER BLOCK

19524-MKJ-D00

$10.41

HOSE E, CYLINDER BLOCK

19526-MKJ-D00

$4.64

HOSE, WATER JOINT

19528-MKJ-D00

$15.12

PIPE, WATER JOINT

19530-MKJ-D00

$33.81

SENSOR ASSY., WATER TEMPERATURE

37870-KRJ-901

$27.61

BOLT, FLANGE (6X23) (CT200)

90018-ZE1-000

$1.59

BOLT, FLANGE (6X14)

90028-GHB-630

$1.90

BOLT, FLANGE (6X28) (S-NSHF)

90028-GHB-690

Unavailable

WASHER, SPECIAL (12MM)

90454-MC7-000

$2.38

O-RING (24.5X2)

91302-MEL-003

$2.35

SEAL, WATER PIPE

91315-MFN-D00

$1.80

BOLT, FLANGE (6X30)

95701-06030-00

$1.71

CASE, THERMOSTAT

19310-MKJ-305

$37.43
