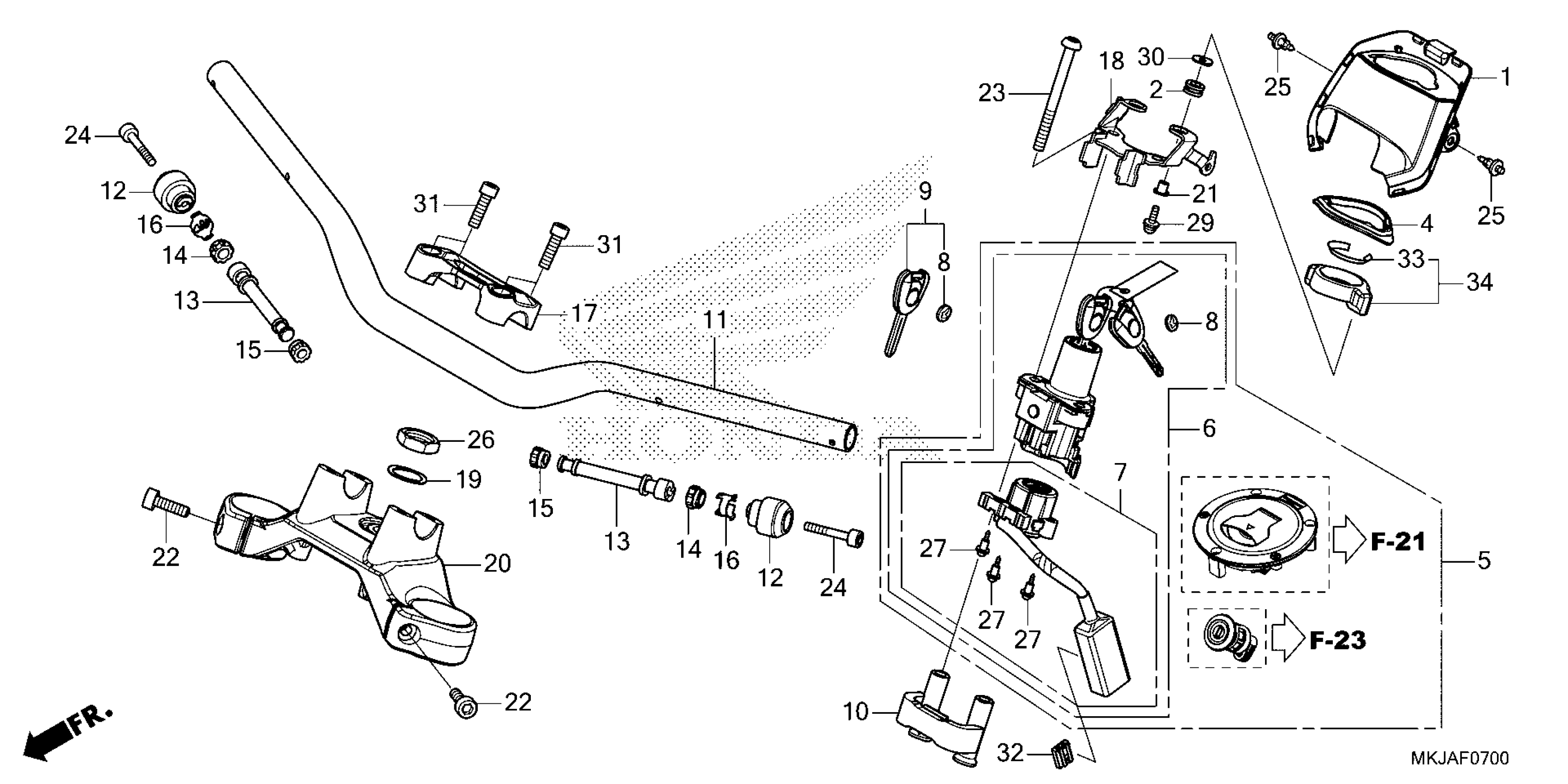

Honda CB1000RA3AC (22) MOTORCYCLE, JPN, VIN# JH2SC801-NK400001 TO JH2SC801-NK499999 HANDLEBAR@TOP BRIDGE Diagram

#

Description
Price

1

COVER, COMBINATION SWITCH (OUTER)

17555-MKJ-D00

$9.03

2

RUBBER, MOUNTING

19639-KEE-630

$18.61

4

COVER, RECEIVER UNIT HOLE

30435-MKJ-D00

$9.00

5

LOCK SET This part replaces 35010-MKJ-A60.

35010-MKJ-A61

$383.23

5

LOCK SET

35010-MKJ-A61

$383.23

6

SWITCH ASSY.

35100-MKJ-A61

$144.32

7

BASE, CONTACT

35101-MKJ-E51

$69.78

8

EMBLEM, KEY | (Optional).

35113-MJK-N20

$3.14

9

KEY, BLANK | (Optional).

35121-MGP-A93

$21.01

10

STAY, KEY MOUNTING

50197-MKJ-D00

$32.54

11

HANDLEBAR

53100-MKJ-E60

$329.29

12

WEIGHT, HANDLEBAR

53105-MKJ-D90

$16.30

13

WEIGHT B, HANDLE

53106-MKJ-D00

$18.19

14

RUBBER, HANDLE WEIGHT (B)

53107-MB6-630

$3.66

15

RUBBER, HANDLE WEIGHT

53107-MJP-G50

$3.08

16

RING, HANDLE WEIGHT SNAP

53108-KR3-940

$5.23

17

HLDR, HANDLE (UPPER)

53131-MKJ-E60

$220.13

18

STAY, RECEIVER UNIT

53190-MKJ-D00

$17.91

19

WASHER, STEERING STEM NUT

53215-MKJ-D00

$1.80

20

BRIDGE, FORK TOP

53230-MKJ-D90

$149.03

21

COLLAR, RR. FENDER

80101-MFJ-D00

$3.80

22

BOLT, SOCKET (8X28)

90105-MA6-750

$4.94

23

BOLT, ONE-WAY (8MM)

90107-MJN-A00

$4.20

24

BOLT, SOCKET (6X40)

90121-MKJ-E50

$4.75

25

CLIP, BUMPER SEAL

90116-SP0-003

$4.40

26

NUT, STEERING STEM

90304-MEE-D00

$9.48

27

SCREW, TAPPING (3X16)

91059-KY2-711

$2.80

29

SCREW-WASHER (5X16)

93891-05016-08

$1.04

30

WASHER, PLAIN (5MM)

94103-05800

$0.90

31

BOLT, SOCKET (8X28)

90114-GHB-A80

$2.93

32

HOLDER, BRACKET (RED)

91554-SM4-003

$7.12

33

SEAL, IGNITION SWITCH

30433-MBW-602

$2.58

34

COVER, COMBINATION SWITCH

35106-MKJ-A00

$10.71
