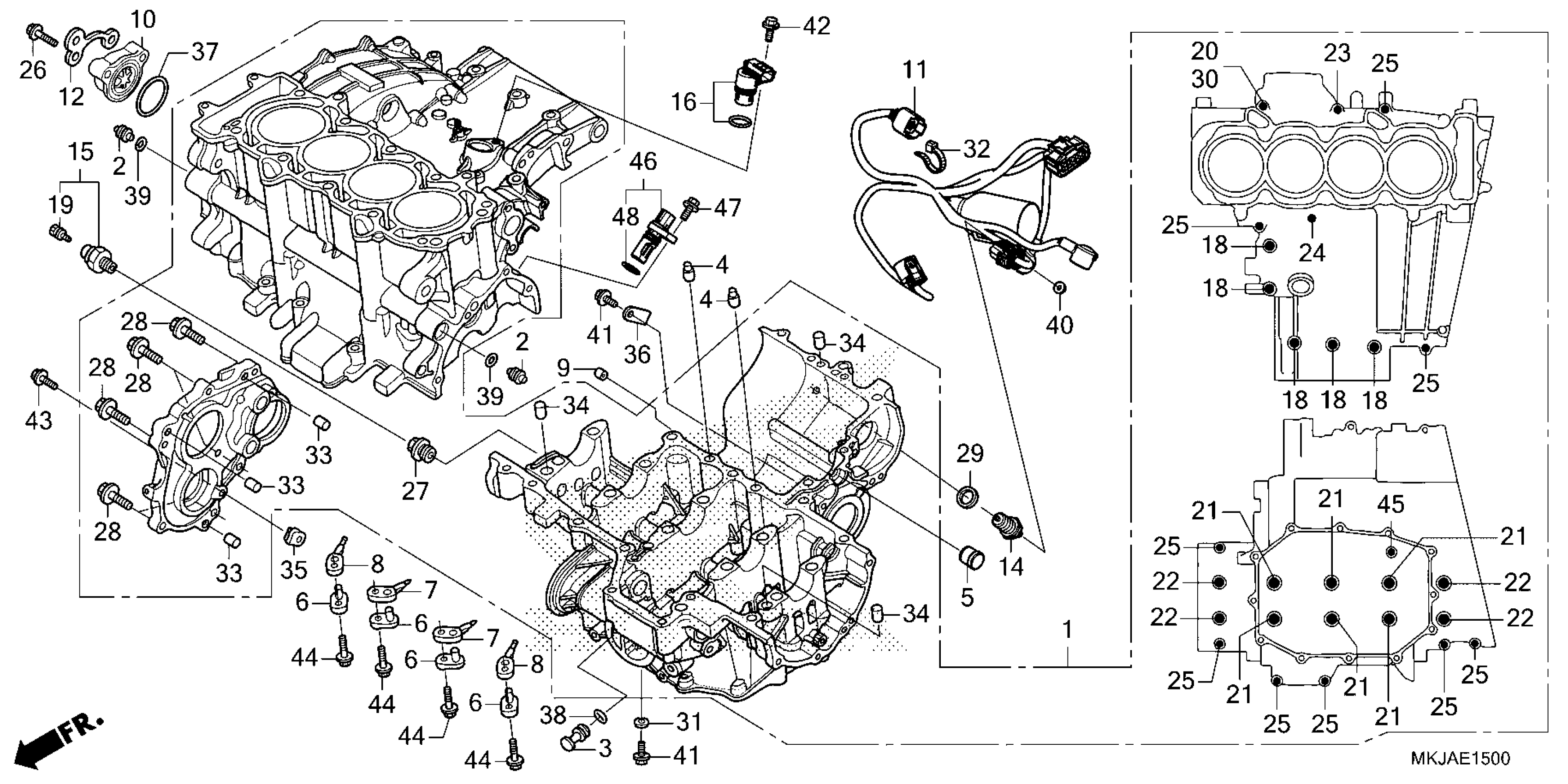

Honda CB1000RA3AC (22) MOTORCYCLE, JPN, VIN# JH2SC801-NK400001 TO JH2SC801-NK499999 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET

11000-MKJ-E50

$2,766.14

2

PLUG, SEALING

11103-MEL-000

$7.61

3

PLUG, OIL COOLER

11104-MEL-000

$6.28

4

ORIFICE (1.6MM)

11105-MEL-000

$7.00

5

PLUG, CRANKCASE

11105-MKJ-D01

$19.49

6

BUSH, ORIFICE

11145-MEL-000

$21.93

7

ORIFICE A (#100)

11146-MEL-000

$20.87

8

ORIFICE B (#100)

11147-MEL-000

$20.87

9

ORIFICE (1.4MM)

11206-MEL-000

$2.06

10

FINDER, OIL LEVEL

11360-MFN-D00

$27.87

11

SUB-HARNESS, ENGINE

32101-MKJ-E50

$75.28

12

GUIDE, OIL PRESSURE SWITCH WIRE

32114-MFN-D00

$3.62

14

SWITCH ASSY., NEUTRAL

35600-MKF-D41

$19.70

15

SWITCH ASSY., OIL PRESSURE (DENSO)

37240-P13-013

$39.96

16

SENSOR ASSY., SPEED

37700-MFL-761

$67.68

18

BOLT, FLANGE (8X55)

90001-MFA-D00

$1.49

19

BOLT-WASHER (4X8) (DENSO)

90002-PA6-003

$5.33

20

BOLT, SPECIAL (7X42.5)

90004-MFA-D00

$2.33

21

BOLT, FLANGE (9X105)

90015-MEL-003

$9.59

22

BOLT, FLANGE (9X125)

90016-MEL-003

$9.59

23

BOLT, FLANGE (7X60)

90017-MFA-D00

$2.41

24

BOLT, FLANGE (7X80)

90018-MFA-D00

$3.32

25

BOLT, FLANGE (7X40)

90019-MFA-D00

$1.84

26

BOLT, FLANGE (6X28) (S-NSHF)

90028-GHB-690

Unavailable

27

BOLT, SEALING (22MM)

90048-MFL-000

$8.65

28

BOLT, FLANGE (8X30)

90133-MEL-000

$3.01

29

WASHER, NEUTRAL

90443-MJ6-000

$1.75

30

WASHER, SEALING (7MM)

90447-KE1-000

$2.42

31

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.80

32

BAND, WIRE (Honda Code 2687788)

90650-KV6-003

$2.90

33

PIN, DOWEL (8X14)

90701-MEL-000

$2.28

34

PIN, DOWEL (10X16) (Honda Code 3906971)

90701-MV9-670

$4.00

35

PLATE A, BEARING SETTING

91011-MEL-000

$5.09

36

PLATE B, BEARING SETTING

91012-MEL-000

$1.75

37

O-RING (32X1.7)

91301-MEE-003

$1.72

38

O-RING (11.8X2.4) This part replaces 91302-ZE9-000.

91302-ZE9-003

$2.33

38

O-RING (11.8X2.4)

91302-ZE9-003

$2.33

39

O-RING (13.8X2.5)

91303-377-000

$3.18

40

NUT, FLANGE (4MM)

94050-04000

$1.12

41

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$0.91

42

BOLT, FLANGE (6X18) BOLT, HEX. (6X18)

95701-06018-00

$1.48

43

BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)

95701-06020-00

$1.61

44

BOLT, FLANGE (6X25)

95701-06025-00

$1.64

45

BOLT, FLANGE (8X40)

95701-08040-00

$1.14

46

SENSOR ASSY., CRANK This part replaces 37500-K26-G81.

37500-K26-G82

$78.10

46

SENSOR ASSY., CRANK

37500-K26-G82

$78.10

47

BOLT, FLANGE (6X18) (NSHF)

90017-GHB-640

$2.01

48

O-RING

91333-PNC-006

$3.00
