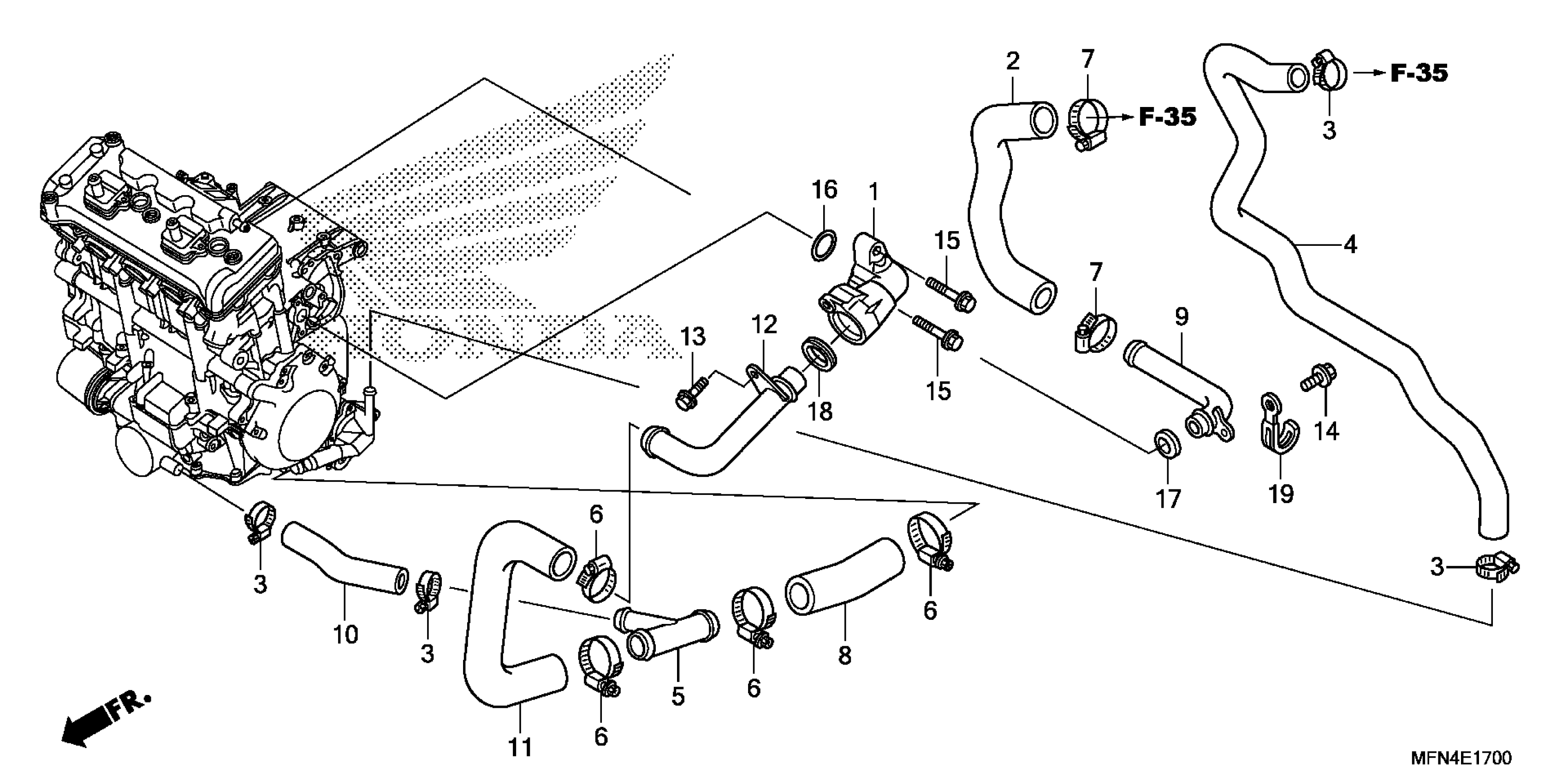

Honda CB1000RA2AC (14) MOTORCYCLE, ITA, VIN# ZDCSC605-EF315001 WATER PIPE Diagram

Description

Price

JOINT, WATER

19060-MFN-D00

$56.13

HOSE A, RADIATOR (UPPER)

19501-MFN-D00

$14.13

CLAMP, WATER HOSE (25MM)

19504-KY1-003

$9.48

HOSE, BYPASS

19506-MFN-D00

$24.01

JOINT, HOSE (THREE-WAY)

19507-MFN-D00

$11.24

CLAMP, HOSE

19516-MER-D10

Unavailable

CLAMP, HOSE (24-32MM)

19516-ML7-691

$13.22

HOSE A, CYLINDER BLOCK

19524-MEL-D20

$6.56

PIPE, WATER

19525-MFA-D00

$41.85

HOSE E, CYLINDER BLOCK

19526-MEL-D20

$7.59

HOSE, WATER JOINT

19528-MFN-D00

$17.21

PIPE, WATER JOINT

19530-MFN-D00

$47.16

BOLT, FLANGE (6X14)

90002-MFN-D00

$1.97

BOLT, FLANGE (6X14) (NSHF)

90006-GHB-620

$1.69

BOLT, FLANGE (6X28)

90006-MFN-D00

$2.19

O-RING (24.5X2)

91302-MEL-003

$2.38

SEAL, WATER PIPE

91315-MB0-013

$2.50

SEAL, WATER PIPE

91315-MFN-D00

$1.82

CLIP (2X60)

91410-679-000

$9.27
