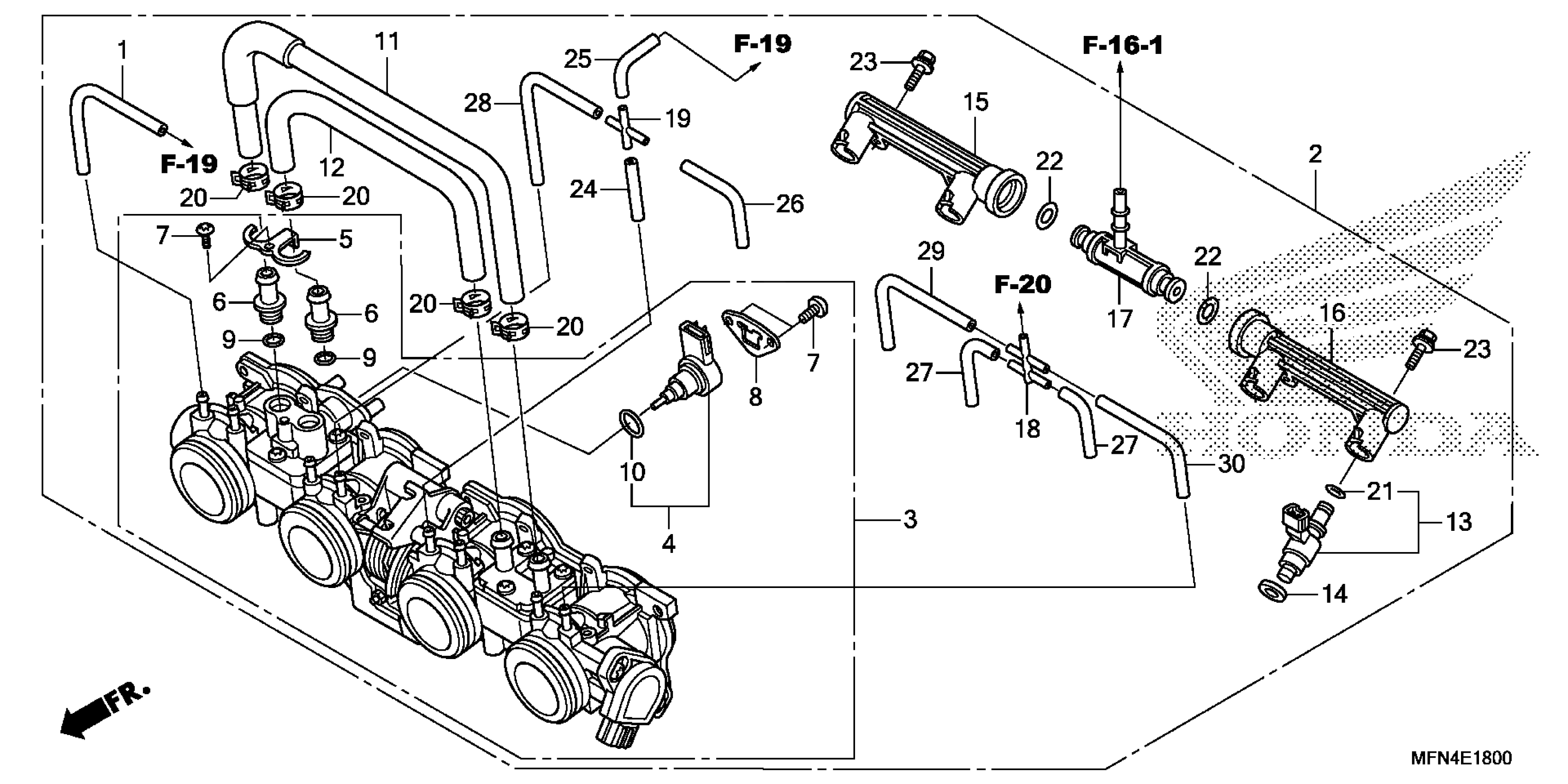

Honda CB1000RA2AC (14) MOTORCYCLE, ITA, VIN# ZDCSC605-EF315001 THROTTLE BODY Diagram

#

Description
Price

1

TUBE (3.5X970)

16197-MFN-D01

$12.54

2

BODY ASSY., THROTTLE (GQ3VA B) (ENGINE NO.)

16400-MFN-L62

$1,976.90

3

BODY ASSY., THROTTLE (THROTTLE BODY NO.)

16401-MFN-L62

$1,166.14

4

MOTOR ASSY.

16430-MFJ-D01

$139.53

5

PLATE, JOINT

16431-MFJ-D01

$7.54

6

JOINT, IDLE AIR CONTROL VALVE

16432-MFG-D01

$7.17

7

SCREW, TORX

16433-HN8-A61

$0.33

8

PLATE, IDLE AIR CONTROL VALVE

16433-MEW-921

$9.42

9

O-RING

16434-MFJ-D01

$2.77

10

O-RING (17.8X1.9)

16435-MFJ-D01

$2.77

11

TUBE (9X285)

16440-MFA-D01

$5.09

12

TUBE

16441-MFA-D01

$4.50

13

INJECTOR ASSY., FUEL

16450-MFA-D02

$132.48

14

SEAL RING, INJECTOR

16472-MCW-000

$2.17

15

PIPE A, FUEL

16610-MFA-D01

$60.87

16

PIPE B, FUEL

16620-MFA-D01

$60.87

17

T-JOINT, FUEL

16630-MFM-003

$30.43

18

JOINT, FIVE-WAY

17201-MCJ-003

$7.73

19

JOINT, FOUR-WAY

17201-MCZ-003

$6.64

20

CLAMP, MASTER CYLINDER OIL HOSE

43514-MN9-006

$13.91

21

O-RING (7.8X1.9)

91301-P7A-004

$3.13

22

O-RING (7.47X3.6)

91301-PLC-000

$2.89

23

BOLT-WASHER (5X20)

93401-05020-00

$1.13

24

BULK HOSE, VACUUM (3.5X1000) (3.5X60)

95005-35001-20M

$8.69

25

BULK HOSE, VACUUM (3.5X1000) (3.5X70)

95005-35001-20M

$8.69

26

BULK HOSE, VACUUM (3.5X1000) (3.5X80)

95005-35001-20M

$8.69

27

BULK HOSE, VACUUM (3.5X1000) (3.5X90)

95005-35001-20M

$8.69

28

BULK HOSE, VACUUM (3.5X1000) (3.5X140)

95005-35001-20M

$8.69

29

BULK HOSE, VACUUM (3.5X1000) (3.5X150)

95005-35001-20M

$8.69

30

BULK HOSE, VACUUM (3.5X1000) (3.5X170)

95005-35001-20M

$8.69
