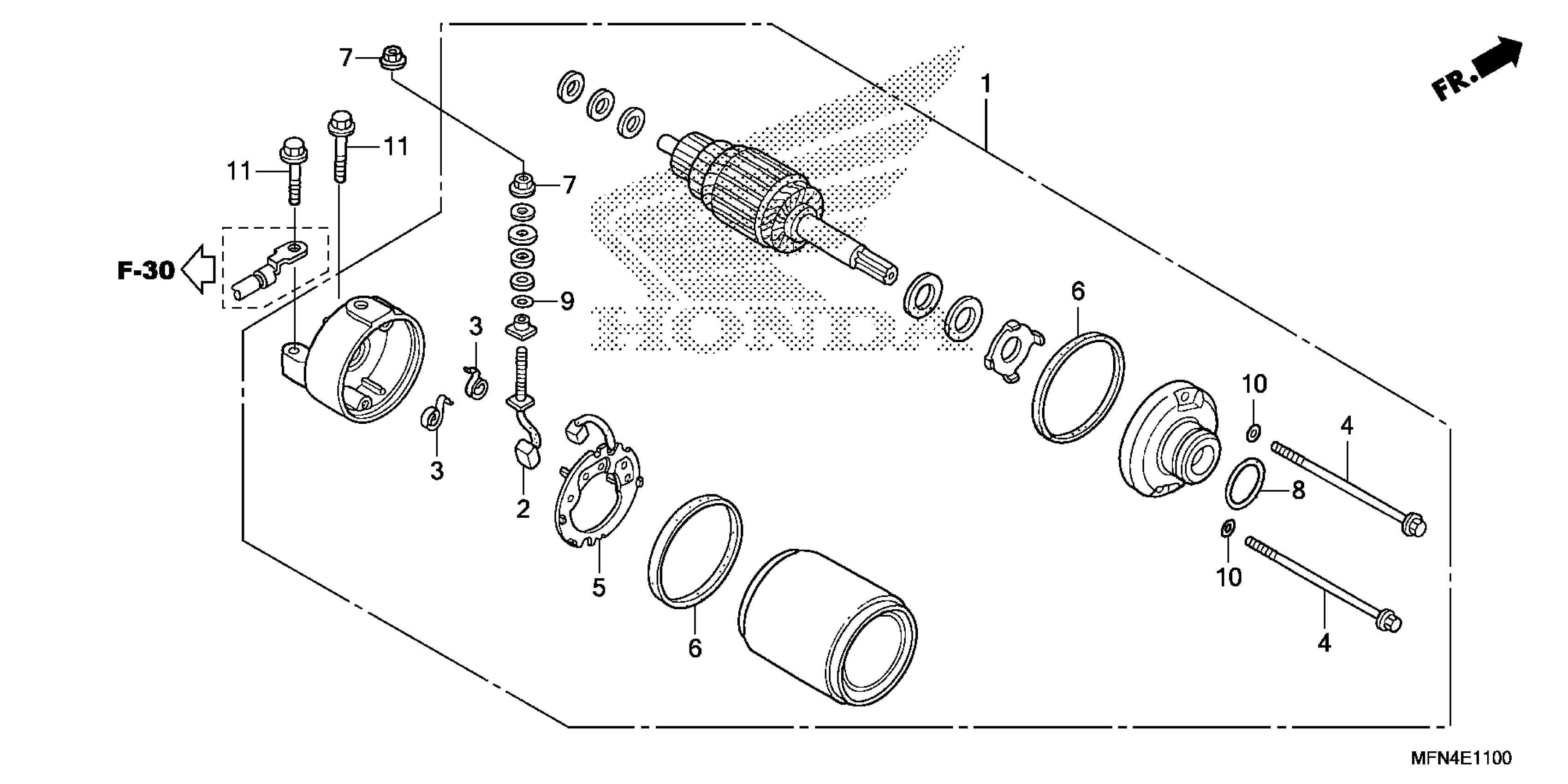

Honda CB1000RA2AC (14) MOTORCYCLE, ITA, VIN# ZDCSC605-EF315001 STARTING MOTOR Diagram

#

Description
Price

1

STARTER MOTOR ASSY.

31200-MEL-003

$468.30

2

TERMINAL SET, BRUSH

31201-MBE-008

$10.26

3

SPRING, CARBON BRUSH

31204-KS5-901

$2.80

4

BOLT, SETTING

31205-MEL-D20

$2.25

5

HOLDER SET, BRUSH

31206-MBE-008

$23.38

6

RING

31207-MBE-008

$3.90

7

NUT-WASHER (6MM)

90071-MB0-000

$1.88

8

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

Unavailable

8

O-RING (24.4X3.1)

91312-MG7-003

Unavailable

9

O-RING (4X2)

91320-MB0-000

$2.20

10

O-RING

91320-MBE-008

$2.22

11

BOLT, FLANGE (6X25)

95801-06025-08

$1.64
