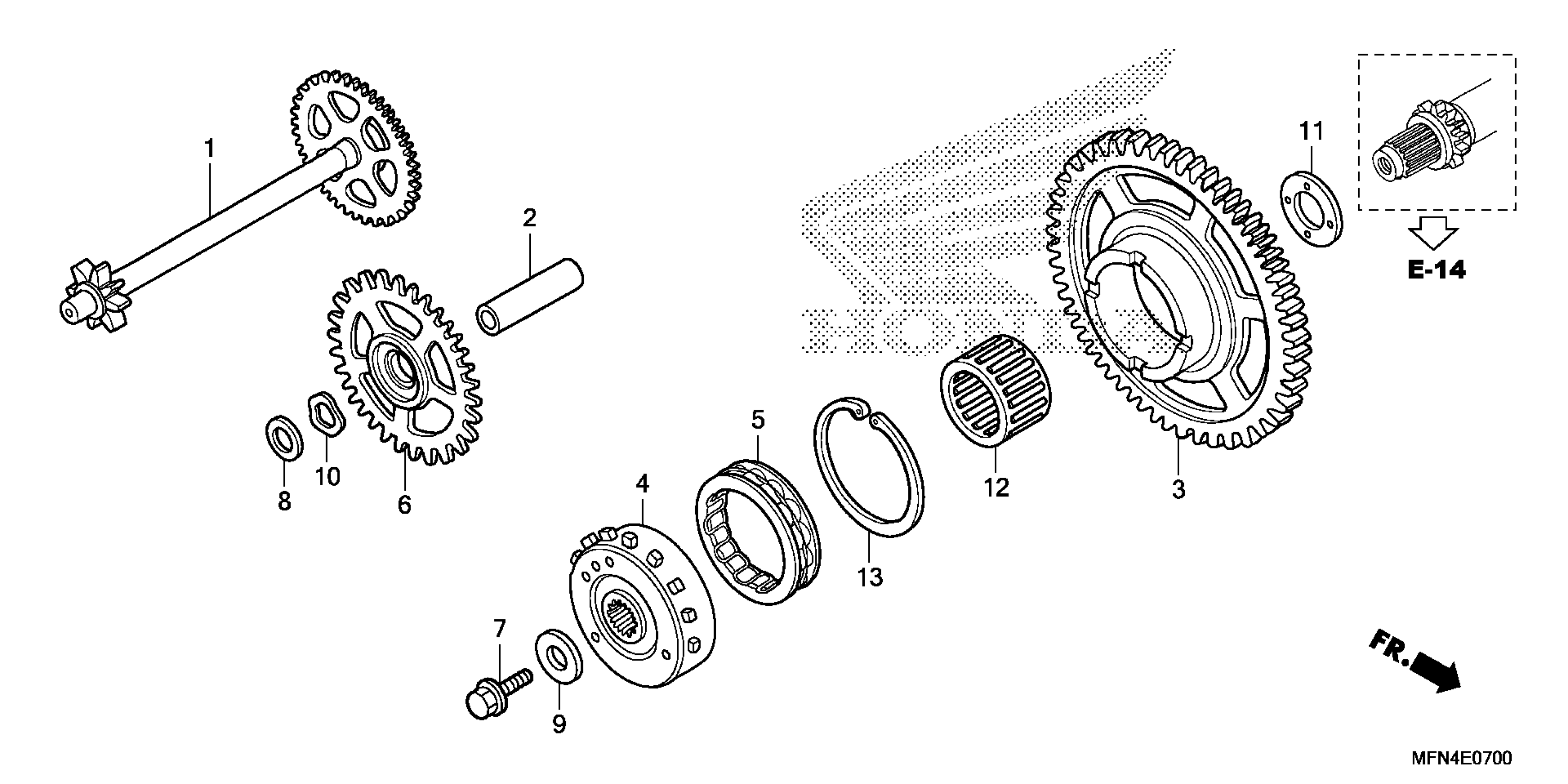

Honda CB1000RA2AC (14) MOTORCYCLE, ITA, VIN# ZDCSC605-EF315001 STARTING CLUTCH Diagram

GEAR, STARTER REDUCTION (9T/60T)

28100-MEL-000

$113.72

PIN (10X36.5)

28102-ML7-000

$8.66

GEAR, STARTING DRIVEN (40T)

28110-MEL-000

$127.48

CLUTCH OUTER, STARTING

28115-MFN-D00

$92.48

CLUTCH, ONE-WAY

28126-MEL-000

$90.82

GEAR, STARTER IDLE (25T)

28141-MEL-000

$45.98

BOLT, SPECIAL (10X25)

90013-430-000

$6.46

WASHER (10X28X1)

90401-MEE-000

$1.87

WASHER (10.5X31.8)

90405-MFA-D00

$4.13

WASHER, WAVE

90435-MEE-000

$1.87

WASHER, THRUST (22.1X42X3)

90456-MFA-D00

$3.67

BEARING, NEEDLE (30X35X20)

91025-KT7-003

$22.11

CIRCLIP, INNER (63MM)

94520-63150

$3.67
