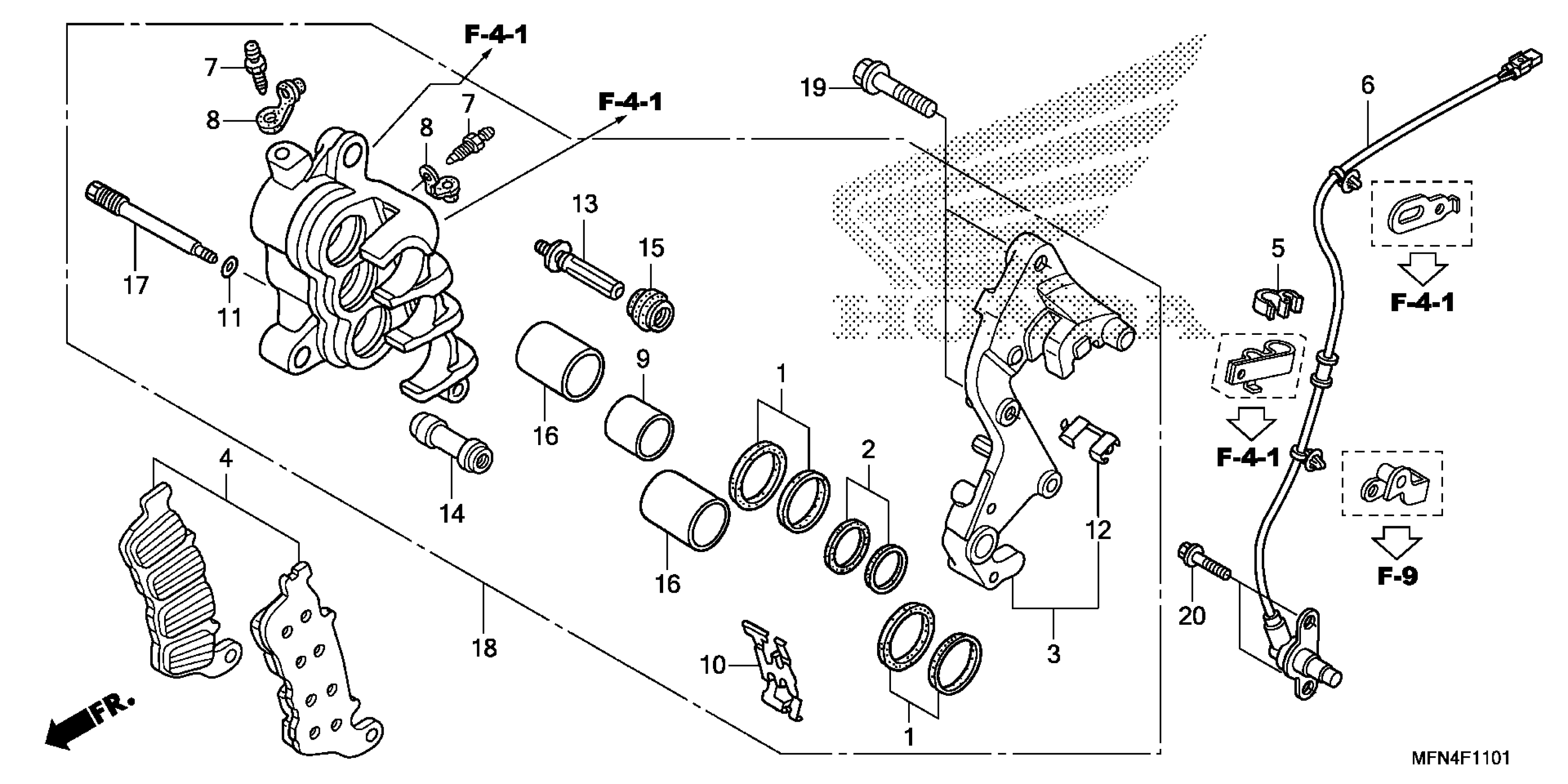

Honda CB1000RA2AC (14) MOTORCYCLE, ITA, VIN# ZDCSC605-EF315001 RIGHT FRONT BRAKE CALIPER Diagram

SEAL SET, PISTON

06431-MA3-405

$7.33

SEAL SET, PISTON

06451-MZ2-405

$12.55

BRACKET SUB-ASSY., R. FR.

06453-MFN-D11

$237.23

PAD SET, FR. This part replaces 06455-MFA-D12.

06455-MFA-D13

$136.21

PAD SET, FR.

06455-MFA-D13

$136.21

CLAMP, PIPE

11152-KS4-003

$7.13

SENSOR, FR. WHEEL SPEED

38520-MFN-D12

$391.30

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

PISTON A (22X27)

45107-MAJ-G41

$39.18

SPRING, PAD

45108-MBT-D52

$7.54

RING, STOPPER

45111-MAJ-G41

$3.80

RETAINER, BRACKET

45112-MZ2-006

$8.85

BOLT A, PIN

45131-ML7-921

$15.44

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

BOOT B

45133-MA3-006

$5.46

PISTON B (27)

45208-MFN-D12

$45.74

PIN, HANGER

45215-MBT-D51

$6.90

CALIPER SUB-ASSY., R. FR. (NISSIN)

45250-MFN-D12

$951.72

BOLT, FLANGE (8X32) (SAGA)

90131-KBV-003

$4.75

BOLT, FLANGE (6X10)

96001-06010-07

$1.62
