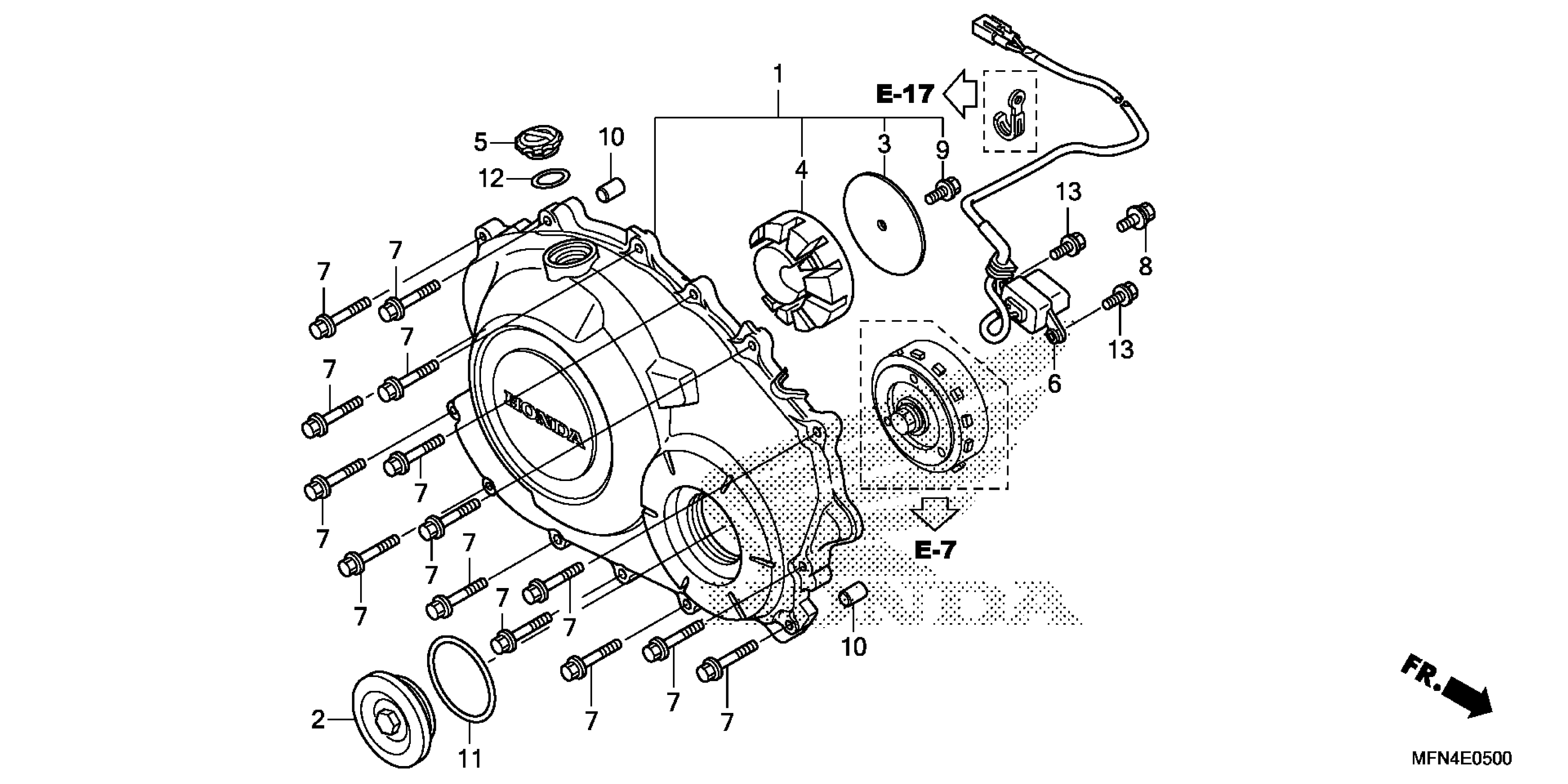

Honda CB1000RA2AC (14) MOTORCYCLE, ITA, VIN# ZDCSC605-EF315001 RIGHT CRANKCASE COVER Diagram

#

Description
Price

1

COVER ASSY., R.

11330-MFN-D00

$226.80

2

CAP (45MM)

11332-MFN-D00

$17.77

3

PLATE, CLUTCH COVER RUBBER

11333-MZ1-000

$8.16

4

RUBBER, CLUTCH COVER

11334-MZ1-000

$34.28

5

CAP, OIL FILLER

15611-MFN-D00

$8.90

6

GENERATOR ASSY., PULSE

30300-MFN-D01

$50.46

7

BOLT, FLANGE (6X28)

90006-MFN-D00

$2.16

8

BOLT-WASHER (6X12)

90021-MM5-000

$4.76

9

BOLT, FLANGE (6X10)

90083-657-000

$5.16

10

PIN, DOWEL (10X16)

90701-MV9-670

$4.00

11

O-RING (48.1X3.6) (ARAI)

91301-ML7-003

$3.66

12

O-RING (18X3) (ARAI)

91307-KF0-003

$2.67

13

BOLT, FLANGE (6X16)

95701-06016-00

$1.48
