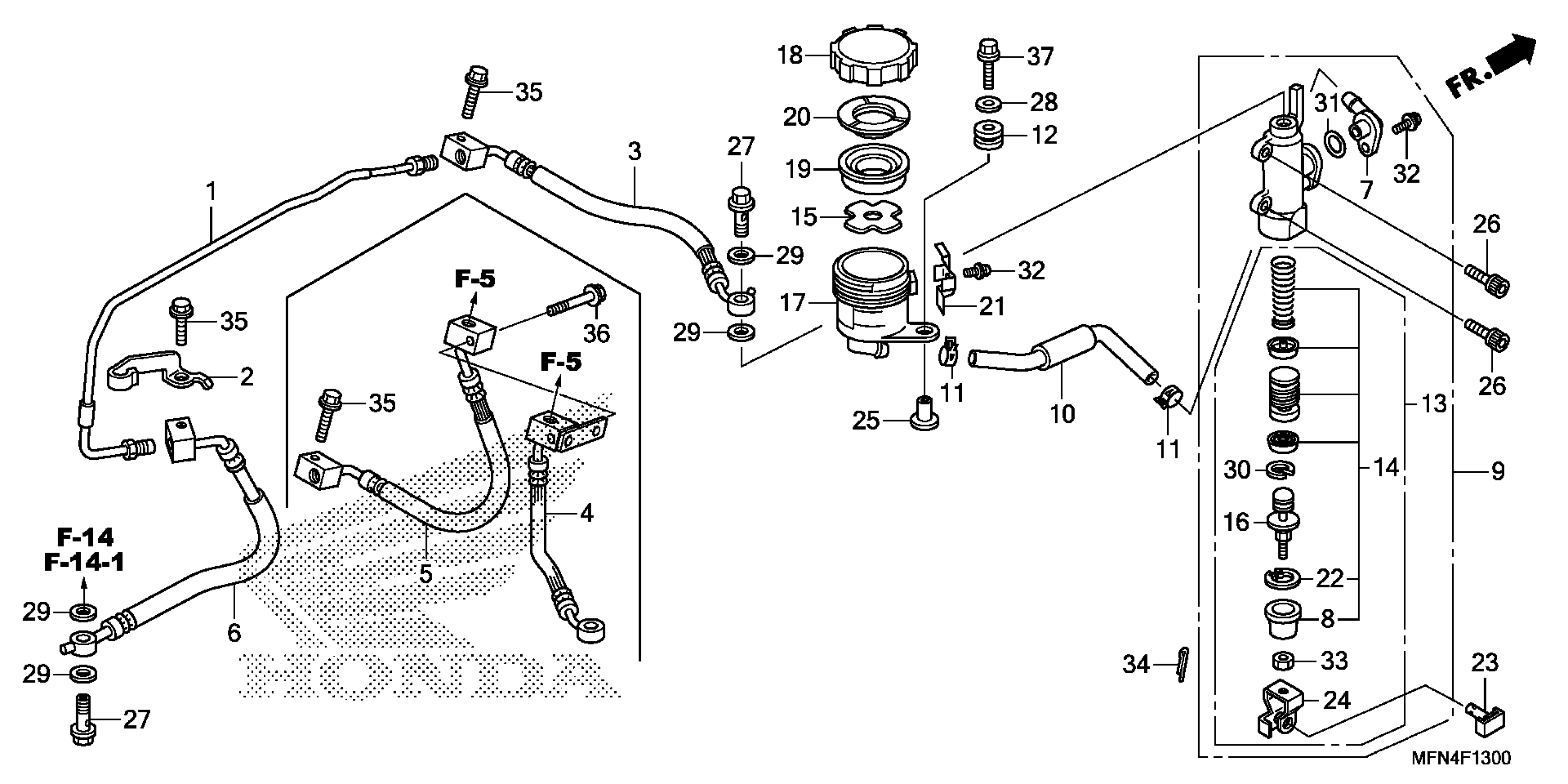

Honda CB1000RA2AC (14) MOTORCYCLE, ITA, VIN# ZDCSC605-EF315001 REAR BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

PIPE E, RR. BRAKE

43135-MFN-D00

$14.38

2

STAY, RR. BRAKE PIPE

43161-MFN-D00

$5.20

4

HOSE A, RR. BRAKE

43310-MFN-D11

$36.70

5

HOSE B, RR. BRAKE

43311-MFN-D11

$43.81

6

HOSE C, RR. BRAKE

43312-MFN-D01

Unavailable

7

CONNECTOR, MASTER CYLINDER

43503-MFN-D01

$6.20

8

BOOT

43504-MB2-006

$9.01

9

MASTER CYLINDER SUB-ASSY., RR. (COO)

43510-MFN-306

$227.49

10

HOSE, RR. BRAKE MASTER CYLINDER

43512-MFN-D01

$11.72

11

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$11.77

12

RUBBER, OIL CUP

43516-MCJ-006

$4.23

13

PISTON SET, RR. MASTER CYLINDER

43520-MFA-D12

$90.81

15

FLOAT, RR. MASTER CYLINDER

43523-MAH-671

$4.02

16

ROD, PUSH

43530-MBG-006

$23.80

17

CUP, OIL

45511-MEL-D21

$8.83

18

CAP, OIL CUP

45513-MEL-D21

$16.55

19

DIAPHRAGM

45520-300-000

$8.13

20

PLATE, DIAPHRAGM

45521-MJ6-006

$3.77

21

PLATE, STOP

45535-MR8-901

$5.07

22

CIRCLIP

46182-MEL-D21

$1.77

23

PIN, BRAKE ROD

46503-MAL-000

$5.46

24

JOINT, BRAKE ROD

46504-MAL-601

$12.20

25

COLLAR (6.3X13)

50324-425-010

$4.51

26

BOLT, SOCKET (6X18)

90040-MN5-000

$3.08

27

BOLT, OIL (10X22)

90145-MS9-612

$6.82

28

WASHER (6X16)

90473-147-000

$1.26

29

WASHER, OIL BOLT

90545-300-000

$3.72

30

CIRCLIP, PISTON

90651-MBG-006

$2.59

31

O-RING (14.8X2.4)

91212-422-006

Unavailable

32

SCREW-WASHER (4X12)

93893-04012-07

$1.22

32

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.22

33

NUT, HEX. (8MM)

94002-08000-0S

$1.19

34

PIN, SPLIT (2.0X12)

94201-20120

$0.94

35

BOLT, FLANGE (6X25)

96001-06025-07

Unavailable

36

BOLT, FLANGE (6X35)

96001-06035-07

$1.97

37

BOLT, FLANGE (6X25)

96300-06025-07

$1.72
