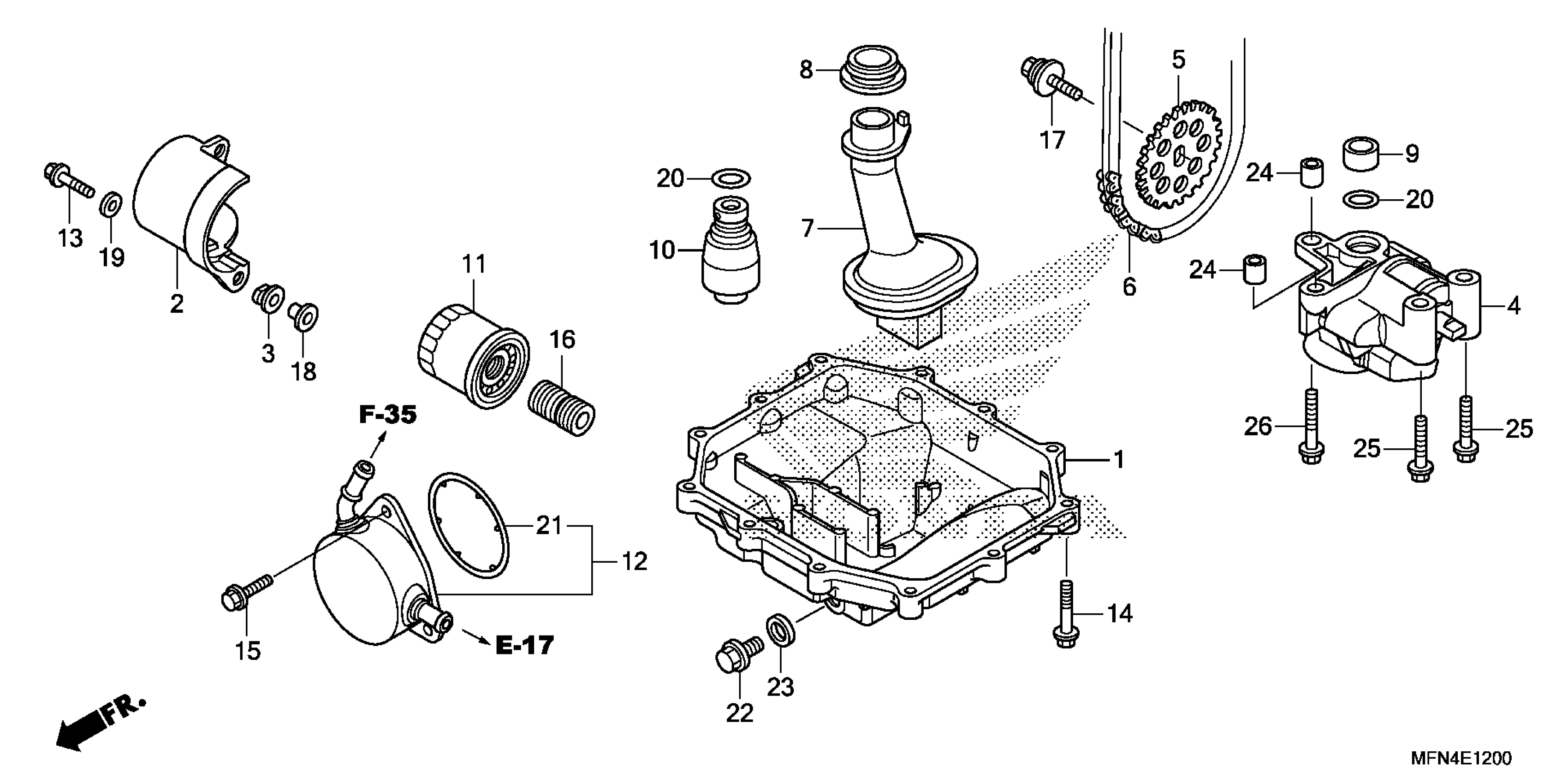

Honda CB1000RA2AC (14) MOTORCYCLE, ITA, VIN# ZDCSC605-EF315001 OIL PAN + OIL PUMP Diagram

#

Description
Price

1

PAN, OIL

11210-MFN-D00

$201.04

2

GUARD, OIL FILTER

11810-MFA-D00

$14.58

3

RUBBER, OIL FILTER GUARD

11815-MFA-D00

$2.35

4

PUMP ASSY., OIL

15100-MEL-000

$184.93

5

SPROCKET, OIL PUMP DRIVEN (25T)

15134-MEL-000

$42.16

6

CHAIN, OIL PUMP (68L) (BORG WARNER)

15141-MEL-003

$16.63

7

STRAINER, OIL

15150-MFA-D00

$30.88

8

GASKET, OIL STRAINER

15154-MAT-000

$5.73

9

COLLAR, O-RING

15155-MEL-000

$3.42

10

VALVE ASSY., RELIEF

15220-MFA-D00

$36.14

11

FILTER, OIL (WAKO FILTER) This part replaces 15410-MFJ-D01.

15410-MFJ-D02

$13.80

12

COOLER, OIL

15700-MFA-D01

$205.26

13

BOLT, FLANGE (6X22)

90004-MFN-D00

$2.28

14

BOLT, FLANGE (6X25)

90005-MFN-D00

$1.49

15

BOLT, FLANGE (6X18) (NSHF)

90006-GHB-640

$1.12

16

BOSS, OIL FILTER

90019-MB0-000

$7.73

17

BOLT-WASHER (6X12)

90021-MM5-000

$4.76

18

COLLAR, OIL FILTER GUARD

90402-MFA-D00

$4.51

19

WASHER (6MM)

90403-MFA-D00

$1.57

20

O-RING (14.8X2.2) This part replaces 91313-MB0-003.

91313-MG7-004

$3.42

20

O-RING (14.8X2.2)

91313-MG7-004

$3.42

21

O-RING, OIL COOLER

91354-MCT-003

$7.08

22

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.00

23

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.12

24

PIN, DOWEL (8X14)

94301-08140

$2.04

25

BOLT, FLANGE (6X40)

95701-06040-00

$1.71

26

BOLT, FLANGE (6X50)

95701-06050-00

$1.97
