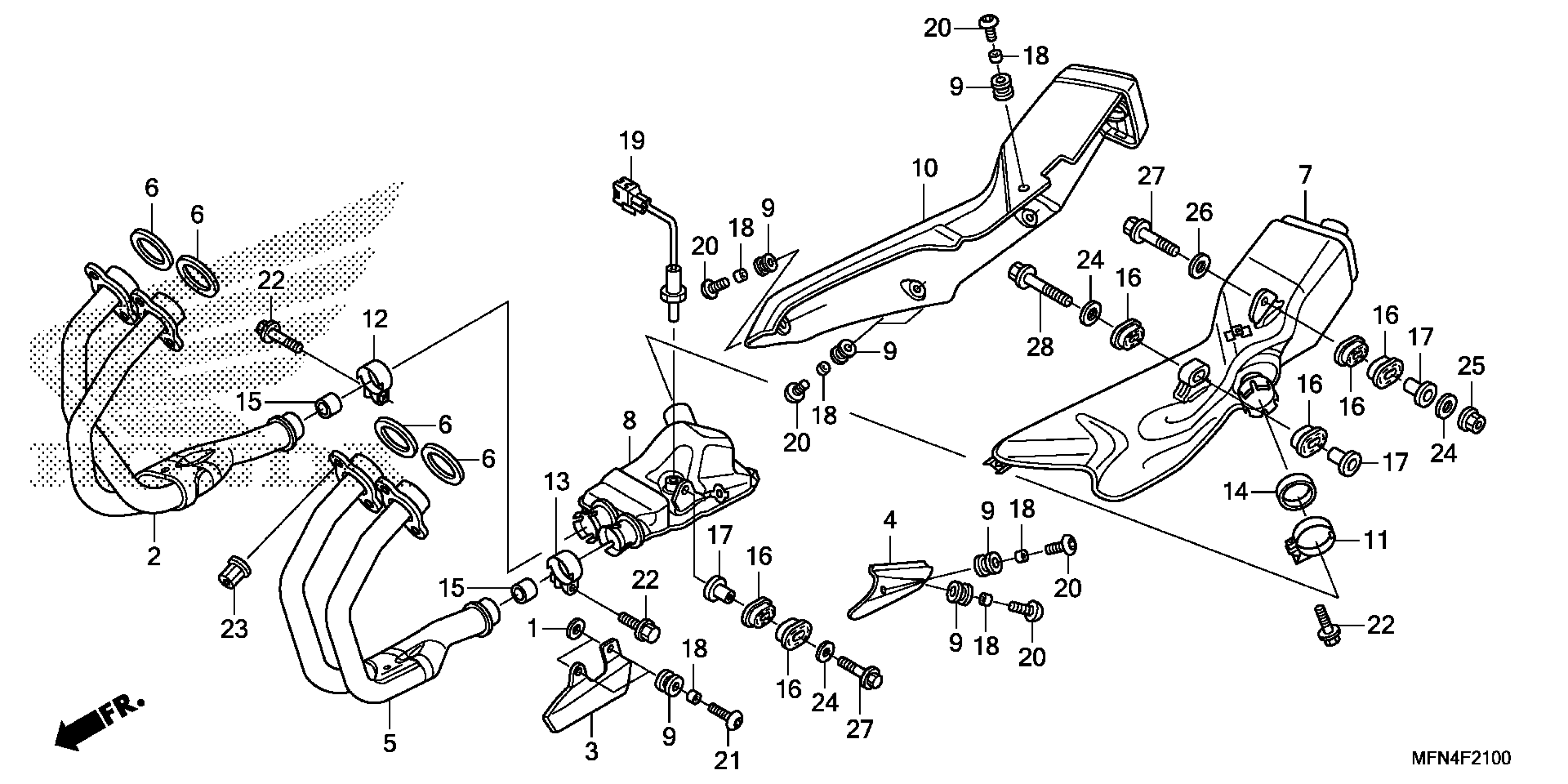

Honda CB1000RA2AC (14) MOTORCYCLE, ITA, VIN# ZDCSC605-EF315001 MUFFLER Diagram

#

Description
Price

1

WASHER, PIVOT

17936-921-000

$1.19

2

PIPE, R. EX.

18150-MFN-L60

$607.33

3

PROTECTOR, EX. PIPE

18170-MFN-D00

$23.57

4

PROTECTOR, L. MUFFLER

18190-MFN-D00

$75.52

5

PIPE, L. EX.

18250-MFN-L60

$581.16

6

GASKET, EX. PIPE

18291-MN4-920

$4.94

7

MUFFLER (COO)

18310-MFN-315

$1,012.03

8

CHAMBER

18320-MFN-L60

$1,044.70

9

RUBBER, PROTECTOR MOUNTING

18345-MBT-610

$1.99

10

PROTECTOR, MUFFLER (COO)

18350-MFN-305

$247.65

11

BAND, MUFFLER

18371-MEL-003

$18.46

12

BAND, R. FR. MUFFLER

18373-413-000

$35.45

13

BAND, L. FR. MUFFLER

18374-413-000

$35.45

14

GASKET, MUFFLER

18391-MEL-000

$19.86

15

GASKET, MUFFLER

18392-MK4-000

$12.26

16

RUBBER, MUFFLER MOUNTING

18421-MFA-D00

$3.41

17

COLLAR, MUFFLER MOUNTING

18422-MFN-D00

$7.97

18

COLLAR, TURN SIGNAL STAY

33619-459-840

$2.33

19

SENSOR, OXYGEN

36531-MFN-D01

$215.59

20

SCREW, PAN (6X12)

90106-KRG-000

$1.99

21

SCREW, PAN (6X14)

90118-MR1-000

$2.88

22

BOLT, FLANGE (8X35)

90161-ML7-000

$3.41

23

NUT, FLANGE (7MM)

90304-MM5-000

$4.60

24

WASHER, PLAIN (8MM)

90325-MFN-D00

Unavailable

25

NUT, FLANGE (8MM)

94050-08070

$1.36

26

WASHER, PLAIN (8MM)

94102-08700

$0.86

27

BOLT, FLANGE (8X45) (SOURCE: VINTAGE PARTS INC.)

96300-08045-07

Unavailable

28

BOLT, FLANGE (8X50)

96300-08050-07

$2.17
