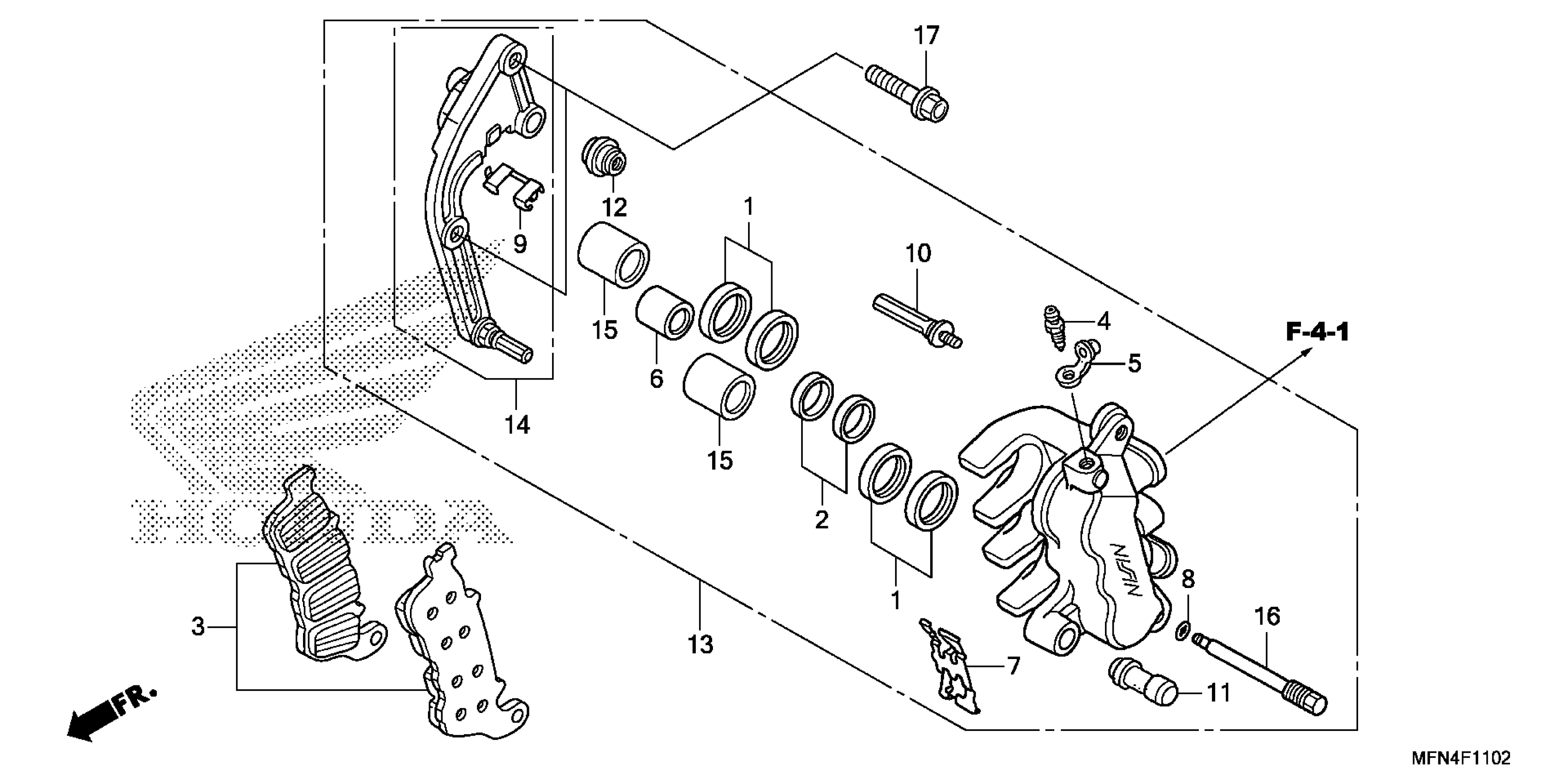

Honda CB1000RA2AC (14) MOTORCYCLE, ITA, VIN# ZDCSC605-EF315001 LEFT FRONT BRAKE CALIPER Diagram

SEAL SET, PISTON

06451-GE2-405

$10.47

SEAL SET, PISTON

06451-MZ2-405

$11.51

PAD SET, FR. This part replaces 06455-MFA-D12.

06455-MFA-D13

$122.19

PAD SET, FR.

06455-MFA-D13

$122.19

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

CAP, BLEEDER

43353-461-771

Unavailable

PISTON A (22X27) This part replaces 45107-MEW-922.

45107-MEW-923

$30.06

SPRING, PAD

45108-MBT-D52

$7.65

RING, STOPPER

45111-MAJ-G41

$3.63

RETAINER, BRACKET

45112-MZ2-006

$8.14

BOLT A, PIN

45131-ML7-921

$14.17

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.21

BOOT B

45133-MA3-006

$5.21

CALIPER SUB-ASSY., L. FR. (NISSIN)

45150-MFN-D12

$879.38

BRACKET SUB-ASSY., L. FR.

45190-MFA-D11

$135.96

PISTON,25 B This part replaces 45207-MFN-D12.

45207-MFN-D13

$30.60

PIN, HANGER

45215-MBT-D51

$6.38

BOLT, FLANGE (8X32) (SAGA)

90131-KBV-003

$4.54
