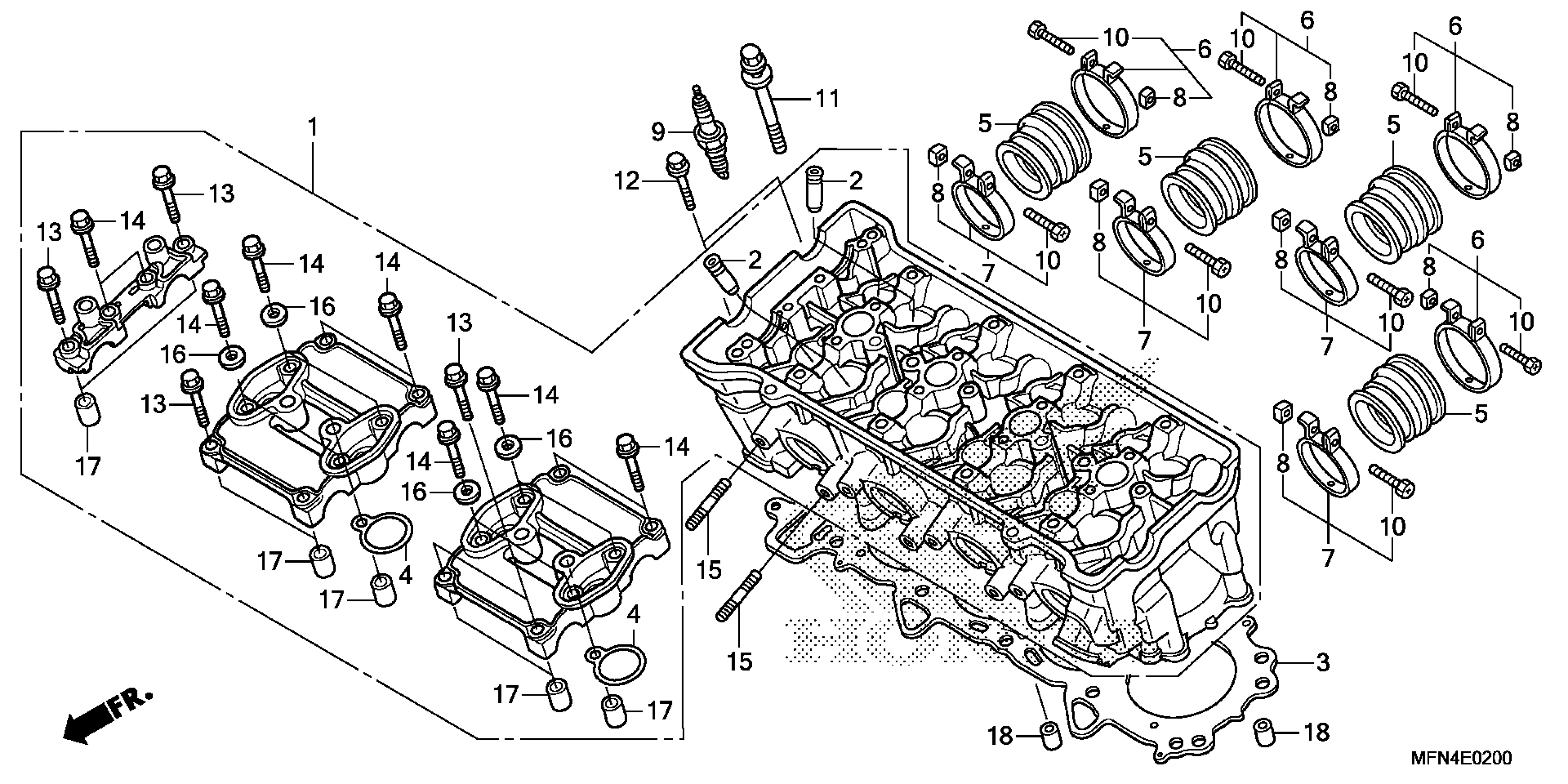

Honda CB1000RA2AC (14) MOTORCYCLE, ITA, VIN# ZDCSC605-EF315001 CYLINDER HEAD Diagram

CYLINDER HEAD ASSY.

12010-MFN-D00

$1,633.87

GUIDE, VALVE (OVER SIZE)

12204-MFA-P00

$15.34

GASKET, CYLINDER HEAD

12251-MFA-D01

$90.11

GASKET, PLUG HOLE

12395-MCJ-000

$4.94

INSULATOR, THROTTLE BODY

16211-MFN-D00

$39.28

BAND B, INSULATOR

16218-MAT-000

$7.86

BAND B, INSULATOR

16218-MER-R60

$4.87

NUT, SQUARE (5MM)

16222-MV4-300

$2.15

SPARK PLUG (IMR9E-9HES) (NGK)

31912-MFL-003

$16.38

SPARK PLUG (VUH27ES) (DENSO)

31922-MEL-003

$29.27

BOLT, RECESSED (5X32)

90005-MM4-000

$1.49

BOLT-WASHER (9X105)

90007-MEL-003

$4.74

BOLT, FLANGE (6X45)

90010-MFN-D00

$2.69

BOLT, FLANGE (6X45.5)

90017-MA6-000

$3.35

BOLT, FLANGE (6X39.5)

90019-MA6-000

$2.92

BOLT, STUD (8X24)

90035-MM5-000

$5.12

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

PIN, DOWEL (8X20)

94301-08200

$2.25

PIN, DOWEL (10X16)

94301-10160

$2.28
