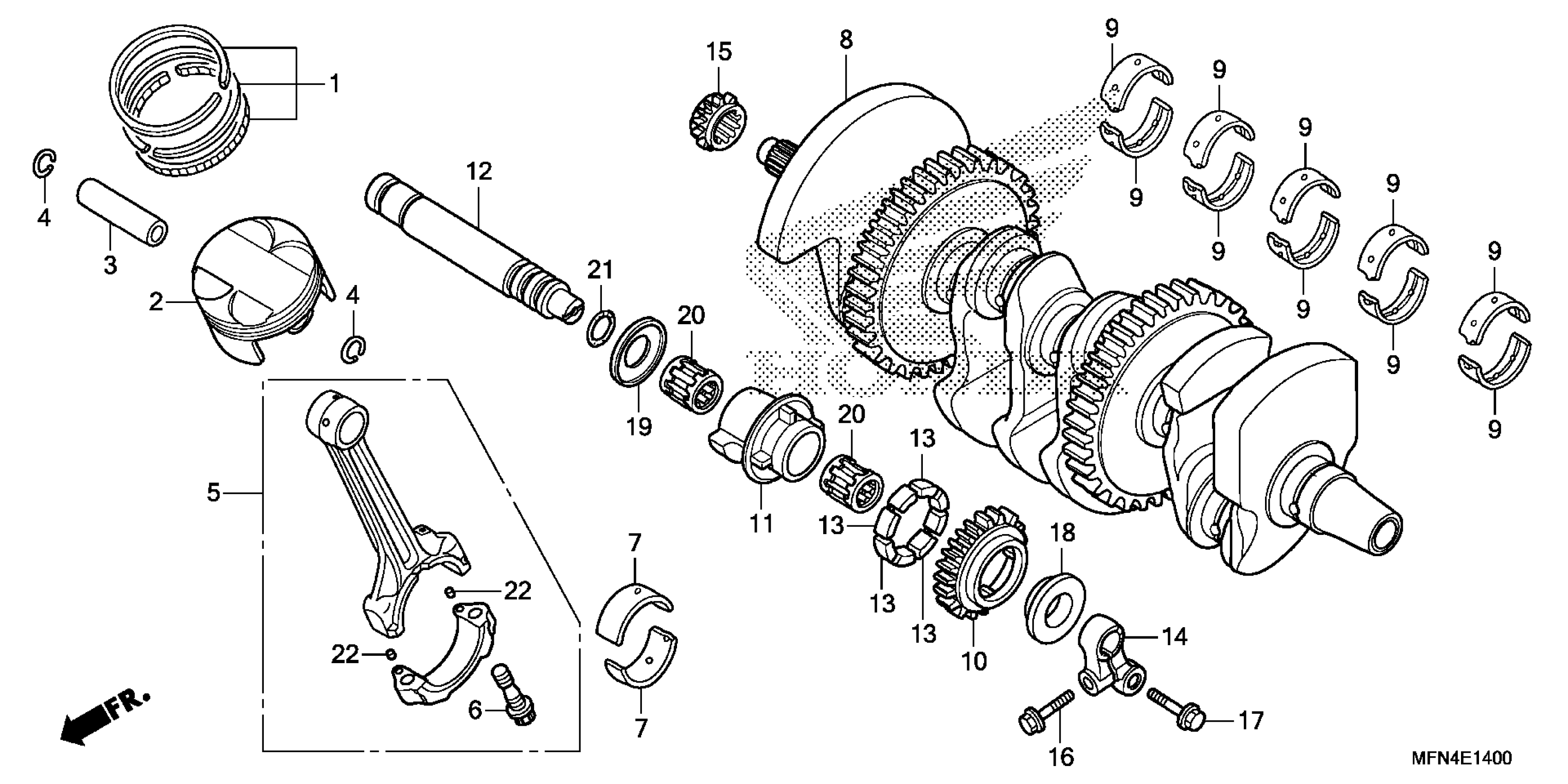

Honda CB1000RA2AC (14) MOTORCYCLE, ITA, VIN# ZDCSC605-EF315001 CRANKSHAFT + PISTON Diagram

#

Description
Price

1

RING SET, PISTON (STD)

13031-MEL-010

$44.85

1

RING SET, PISTON (O.S. 0.25) | (Optional).

13041-MEL-010

$46.20

2

PISTON

13101-MFN-D00

$87.80

2

PISTON (O.S. 0.25) | (Optional).

13103-MFN-D00

$87.80

3

PIN, PISTON

13111-MCJ-750

$14.91

4

CLIP, PISTON PIN (17MM)

13112-MEL-000

$2.35

5

ROD ASSY., CONNECTING

13210-MFN-D00

$185.59

6

BOLT, CONNECTING ROD

13213-MEL-003

$5.37

7

BEARING A, CONNECTING ROD (BLUE)

13214-MEL-003

$11.68

7

BEARING B, CONNECTING ROD (BLACK)

13215-MEL-003

$10.86

7

BEARING C, CONNECTING ROD (BROWN)

13216-MEL-003

$10.86

7

BEARING D, CONNECTING ROD (GREEN)

13217-MEL-003

$10.86

7

BEARING E, CONNECTING ROD (YELLOW)

13218-MEL-003

$10.78

8

CRANKSHAFT

13310-MFA-D01

$1,436.62

9

BEARING B, CRANKSHAFT (BROWN)

13314-MEL-003

$10.13

9

BEARING C, CRANKSHAFT (GREEN)

13315-MEL-003

$9.41

9

BEARING D, CRANKSHAFT (YELLOW)

13316-MEL-003

$9.41

9

BEARING E, CRANKSHAFT (PINK)

13317-MEL-003

$9.41

9

BEARING F, CRANKSHAFT (RED)

13318-MEL-003

Unavailable

10

GEAR, BALANCER (26T)

13421-MEL-D20

$90.19

11

WEIGHT, BALANCER

13430-MEL-000

$109.99

12

SHAFT, BALANCER

13431-MEL-000

$89.42

13

RUBBER, DAMPER

13435-MAT-000

$2.80

14

HOLDER, BALANCER SHAFT

13436-MM5-000

$50.49

15

SPROCKET, TIMING (17T)

14312-MEL-000

$31.25

16

BOLT, FLANGE (6X18)

90002-MCZ-000

$0.86

17

BOLT, FLANGE (8X25)

90022-MFA-D00

$1.71

18

WASHER A, BALANCER SIDE

90457-MAT-000

$5.17

19

WASHER B, BALANCER SIDE

90458-MAT-000

$4.80

20

BEARING B, NEEDLE (18X27X23.8) (BLUE)

91015-MEL-003

$19.06

20

BEARING C, NEEDLE (18X27X23.8) (WHITE)

91016-MEL-003

$19.06

20

BEARING D, NEEDLE (18X27X23.8) (GREEN)

91017-MEL-003

$18.23

21

O-RING (15X2.5)

91302-377-000

$4.94

22

PIN C, DOWEL (4X6.5)

94303-04065

$2.04
