Description

Price

1

ROD, PUSH

22884-MAT-E01

$19.35

2

BUSH

22885-MB0-006

$12.95

3

PISTON SET, MASTER CYLINDER

22886-MAT-E01

$57.04

4

CUP, OIL

22887-MFN-D01

$10.82

5

DIAPHRAGM

22888-MR7-006

$15.17

6

CAP, CLUTCH OIL CUP

22889-MR7-006

$39.07

7

MASTER CYLINDER SUB-ASSY., CLUTCH (COO)

22890-MFN-305

$352.74

8

PLATE, DIAPHRAGM

22890-MR7-006

$11.64

9

HOSE, CLUTCH

22900-MFN-D61

$71.79

10

SWITCH ASSY., CLUTCH

35330-MB0-003

$18.22

11

FLOAT

43523-MFL-006

$3.13

12

BOOT

45504-MAT-E01

$10.65

13

HOLDER, MASTER CYLINDER

45517-MFN-D01

$13.93

14

PLATE, STOP

45535-MR8-901

$5.44

15

LEVER, L. HANDLE This part replaces 53180-MCF-305.

53180-MCF-D62

$85.41

16

BOLT, FLANGE (6X22)

90101-MBZ-G00

$1.49

17

SCREW, TRIPLE (4X11)

90101-MR7-006

$2.92

18

BOLT, HANDLE LEVER PIVOT

90114-MA5-671

$9.43

19

BOLT, OIL (10X22)

90145-MS9-612

$7.54

20

NUT, CAP (6MM)

90201-415-000

$2.05

21

WASHER, OIL BOLT

90545-300-000

$3.99

22

CIRCLIP

90651-MA5-671

$2.66

23

O-RING (14.8X2.4)

91212-422-006

$2.56

24

O-RING

91355-MG9-006

$3.15

25

SCREW-WASHER (4X12)

93893-04012-07

$1.49

25

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

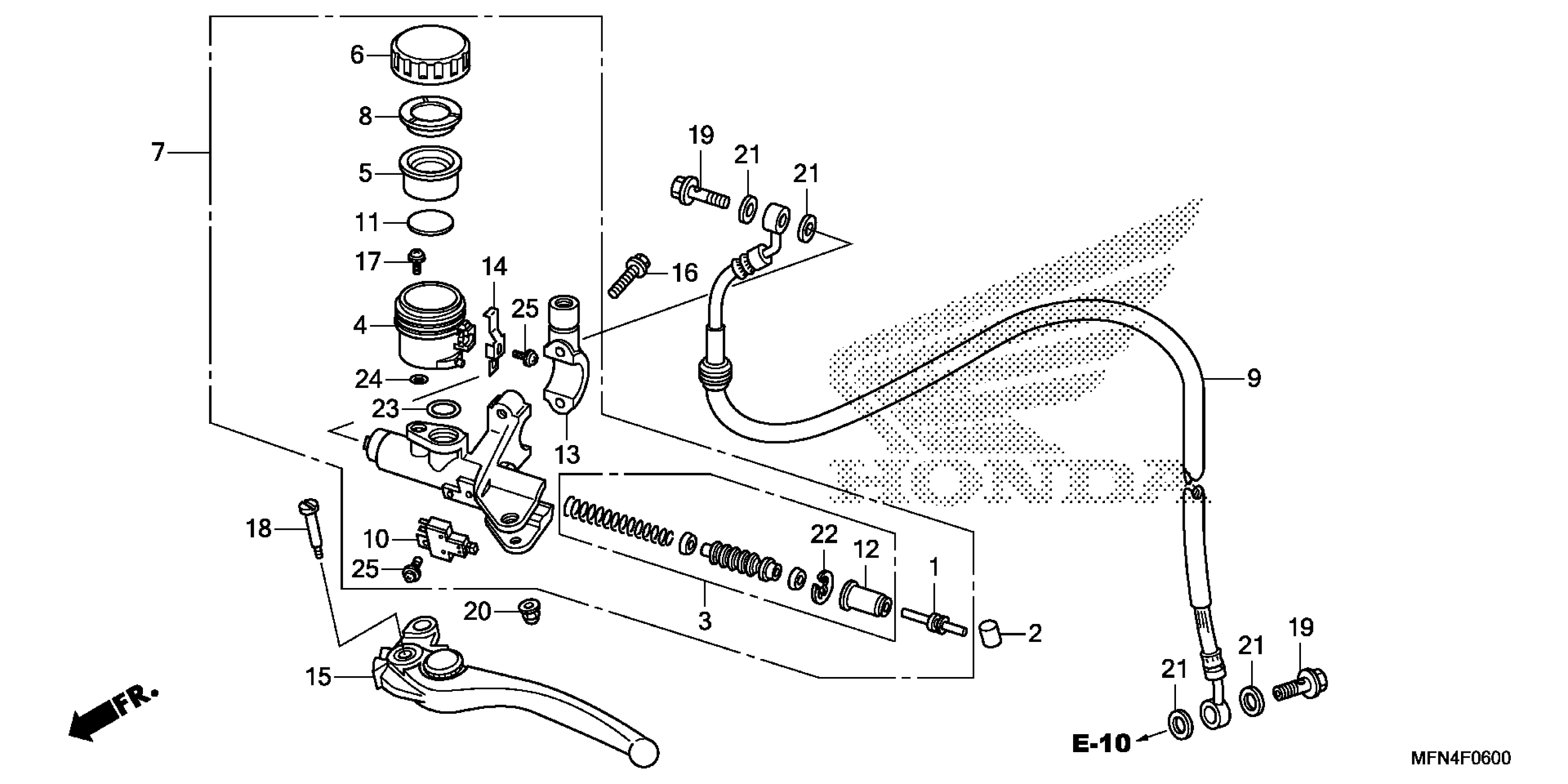

Honda CB1000RA2AC (14) MOTORCYCLE, ITA, VIN# ZDCSC605-EF315001 CLUTCH MASTER CYLINDER Diagram

ROD, PUSH

BUSH

PISTON SET, MASTER CYLINDER

CUP, OIL

DIAPHRAGM

CAP, CLUTCH OIL CUP

MASTER CYLINDER SUB-ASSY., CLUTCH (COO)

PLATE, DIAPHRAGM

HOSE, CLUTCH

SWITCH ASSY., CLUTCH

FLOAT

BOOT

HOLDER, MASTER CYLINDER

PLATE, STOP

LEVER, L. HANDLE This part replaces 53180-MCF-305.

BOLT, FLANGE (6X22)

SCREW, TRIPLE (4X11)

BOLT, HANDLE LEVER PIVOT

BOLT, OIL (10X22)

NUT, CAP (6MM)

WASHER, OIL BOLT

CIRCLIP

O-RING (14.8X2.4)

O-RING

SCREW-WASHER (4X12)

SCREW-WASHER (4X12) This part replaces 93893-04012-17.
