Description

Price

1

CANISTER

17410-MFN-L61

$298.06

2

TUBE A, PURGE

17411-MFN-L60

$5.29

3

TUBE, CANISTER-P.C.V.

17412-MFN-L60

$9.54

4

TUBE B, PURGE

17413-MFN-L60

$5.13

5

COVER, CANISTER

17420-MFN-L60

$4.68

6

COLLAR, CANISTER COVER

17421-MFN-L60

$21.38

7

STAY, CANISTER

17430-MFN-L60

$18.38

8

COLLAR, CANISTER STAY

17435-MFN-L60

$24.39

9

STAY, P.C.V.

17445-MFN-L60

$2.87

10

SUB-STAY, P.C.V.

17446-MFN-L60

$6.04

11

CLIP, TUBE

17450-KY7-740

$2.70

12

TUBE, CANISTER-AIR

17450-MFN-L60

$12.14

13

STAY, DRAIN TUBE

17460-MFN-L60

$2.35

14

TUBE, CANISTER DRAIN

17470-MFN-L61

$6.29

15

TUBE, BREATHER

17544-MFN-L60

$34.32

16

RUBBER, PROTECTOR MOUNTING

18345-MBT-610

$1.99

17

JOINT, TUBE

19126-KM1-010

$3.45

18

CLIP, IGNITION WIRE (8MM)

30701-883-000

$2.65

19

VALVE, PURGE CONTROL SOLENOID

36162-PLC-003

$56.81

20

RUBBER, BATTERY

50328-HP1-600

$1.48

21

RUBBER, JOINT PLATE

52112-MCA-000

$2.75

22

COLLAR, TAILLIGHT MOUNTING

84706-163-670

$3.80

23

BOLT, SPECIAL (6X18)

90006-KTW-900

$2.41

24

BOLT (8X30)

90124-MFN-L60

$2.45

25

CLAMP, TUBE

90651-KVS-611

$2.81

26

RUBBER, CONTROL BOX

90852-898-000

$3.67

27

BOLT-WASHER (5X20)

93404-05020-08

$1.46

28

NUT, FLANGE (5MM)

94050-05080

$0.33

29

WASHER, PLAIN (8MM)

94103-08700

$0.86

30

CLAMP, TUBE (D7.3)

95002-40730-08

$2.30

31

BOLT, FLANGE (6X12)

96001-06012-00

$1.64

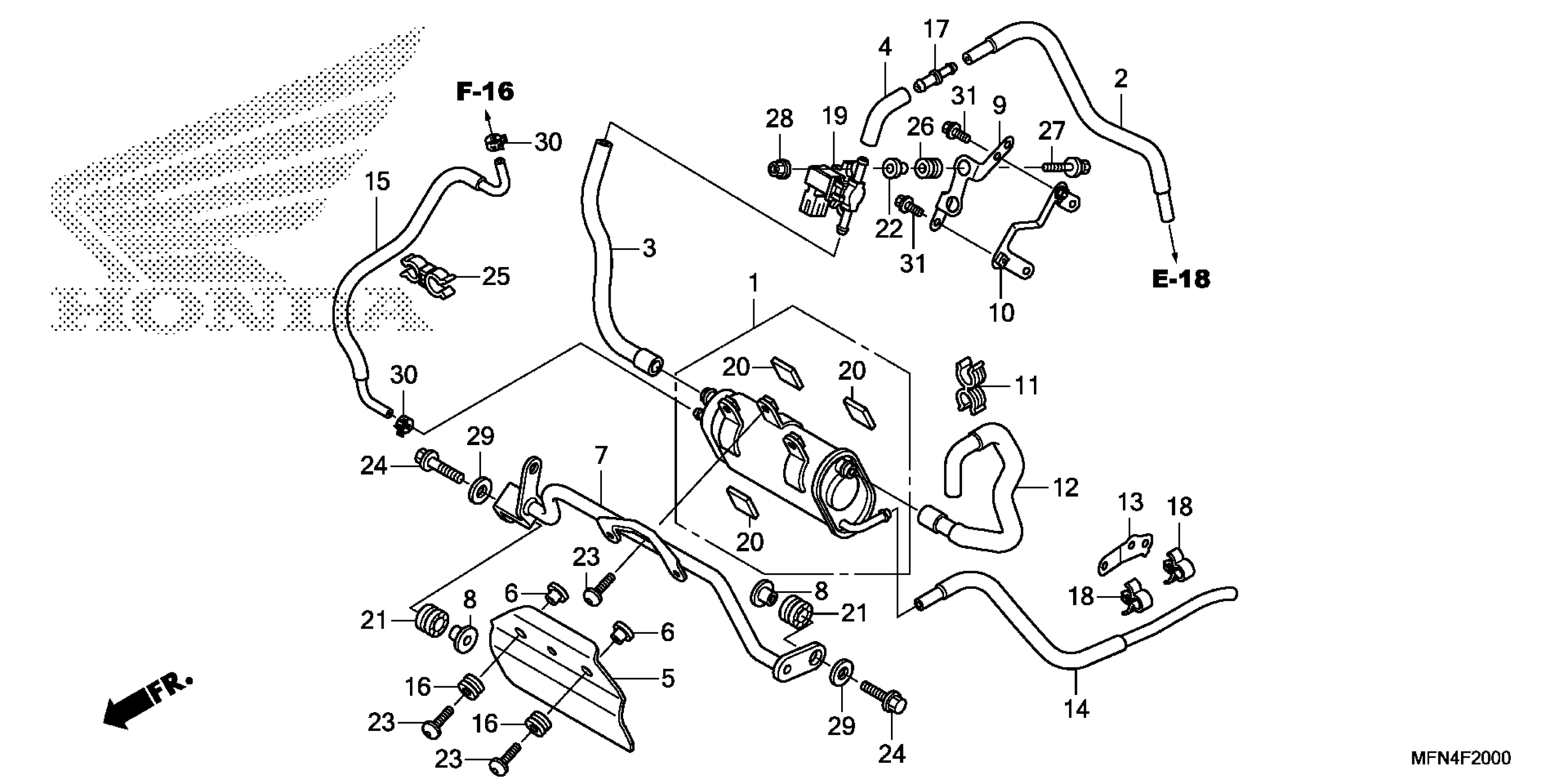

Honda CB1000RA2AC (14) MOTORCYCLE, ITA, VIN# ZDCSC605-EF315001 CANISTER Diagram
