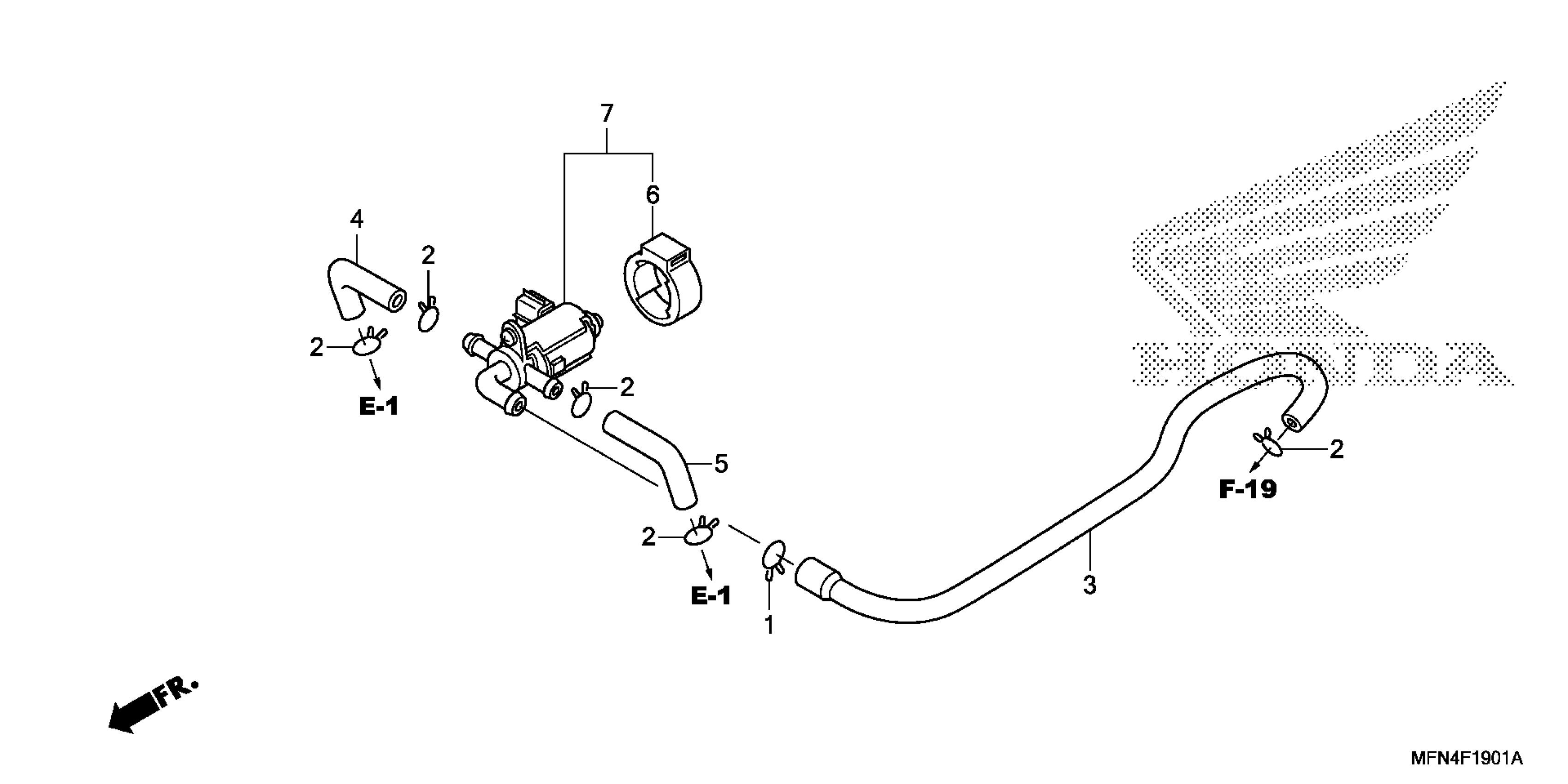

Honda CB1000RA2AC (14) MOTORCYCLE, ITA, VIN# ZDCSC605-EF315001 AIR INJECTION CONTROL VALVE Diagram

#

Description

Price

1

CLIP, BREATHER TUBE

17554-MB0-000

$2.65

2

CLIP, SUB-TANK HOSE

17724-102-700

Unavailable

3

TUBE A, AIR INJECTION CONTROL VALVE

18651-MFN-D00

$11.86

4

TUBE B, AIR INJECTION CONTROL VALVE

18652-MFN-D00

$4.14

5

TUBE C, AIR INJECTION CONTROL VALVE

18653-MFN-D00

$2.86

6

SUSPENSION, SOLENOID VALVE

36172-MCA-A61

$2.97

7

VALVE ASSY. This part replaces 36450-MEL-D21.

36450-MEL-D23

$73.07
