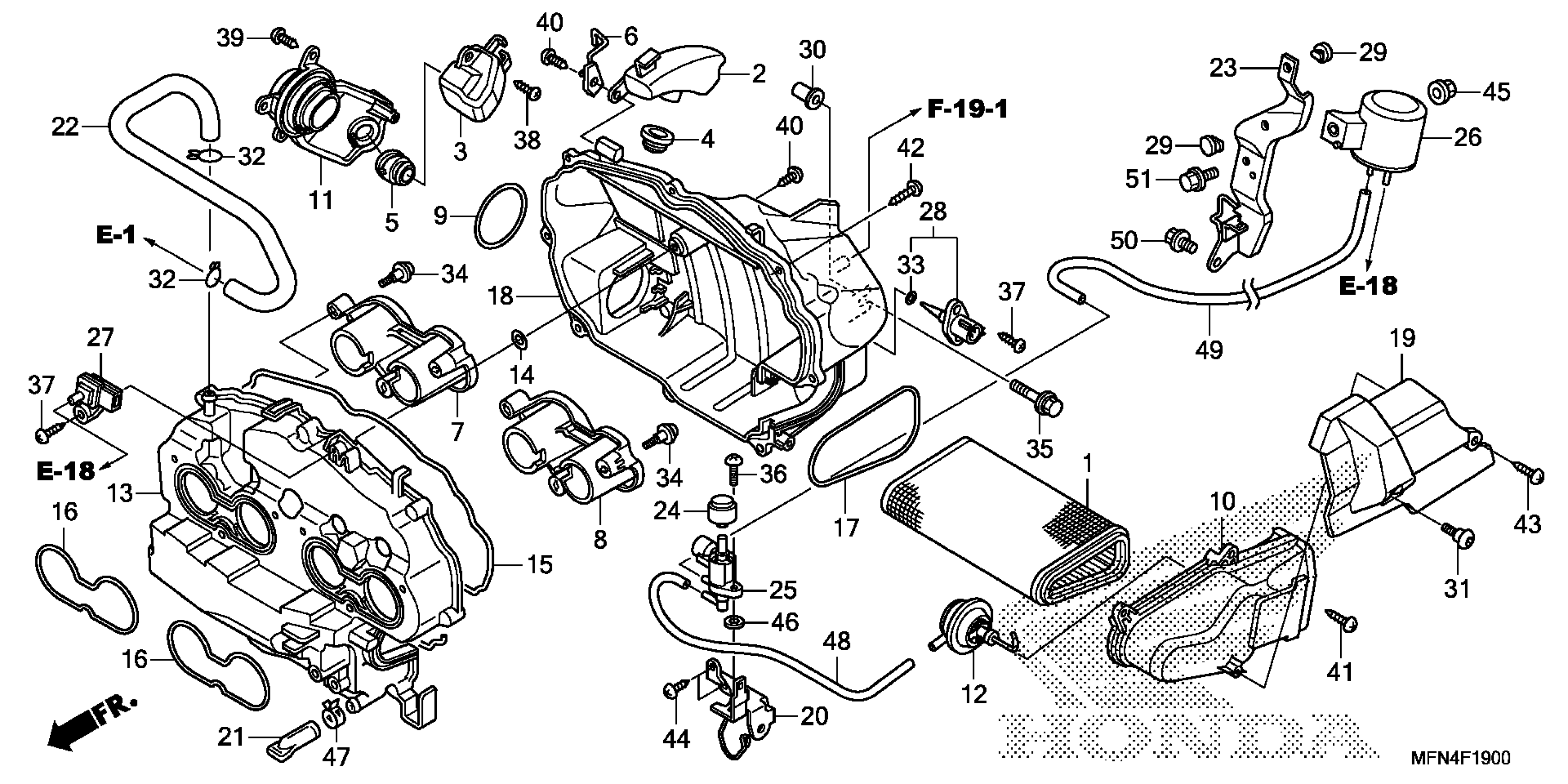

Honda CB1000RA2AC (14) MOTORCYCLE, ITA, VIN# ZDCSC605-EF315001 AIR CLEANER Diagram

#

Description
Price

1

ELEMENT, AIR CLEANER

17210-MFN-D02

$43.64

2

RESONATOR, AIR CLEANER

17213-MFG-D03

$11.46

3

RESONATOR, R. AIR DUCT

17215-MFG-D03

$13.26

4

TUBE, AIR CLEANER RESONATOR

17216-MFG-D00

$1.49

5

TUBE, R. AIR DUCT RESONATOR

17218-MFG-D00

$1.49

6

CLAMP, BREATHER TUBE

17219-MFN-L60

$3.03

7

FUNNEL, R. AIR CLEANER

17225-MFN-D01

$2.70

8

FUNNEL, L. AIR CLEANER

17226-MFN-D01

$2.70

9

SEAL, R. AIR CLEANER DUCT

17229-MFG-D00

$1.49

10

DUCT, L. AIR CLEANER

17235-MFN-D01

$26.62

11

DUCT, R. AIR CLEANER

17236-MFG-D02

$17.89

12

DIAPHRAGM, CONTROL VALVE

17238-MW4-003

$51.38

13

CASE A, AIR CLEANER

17240-MFN-D00

$12.85

14

SEAL A, AIR CLEANER

17241-MFA-D00

$1.49

15

SEAL, AIR CLEANER HOUSING

17242-MFN-D00

$5.05

16

SEAL, AIR CLEANER

17243-MFA-D00

$2.05

17

SEAL, AIR CLEANER DUCT

17244-MFA-D00

$3.18

18

CASE B, AIR CLEANER

17250-MFN-D00

$17.23

19

COVER, AIR CLEANER

17260-MFN-L60

$11.00

20

STAY, CHAMBER

17261-MFN-D00

$15.41

21

TUBE, DRAIN

17358-MZ8-G20

$5.80

22

TUBE, BREATHER

17554-MFN-D00

$13.54

23

STAY, VACUUM TANK

32123-MFN-D00

$13.89

24

FILTER ASSY., SOLENOID VALVE

36138-PR7-A01

$34.18

25

VALVE ASSY., BYPASS CONTROL SOLENOID

36163-PV0-004

$294.10

26

TANK, VACUUM

36625-P0A-A01

$69.98

27

SENSOR ASSY., MAP

37830-MEL-003

$129.26

28

SENSOR ASSY., AIR TEMPERATURE

37880-P05-A00

$33.51

29

RUBBER, LINK STOPPER

50352-GS6-000

$4.53

30

NUT, SPECIAL (6X1.0)

90111-KFB-000

$3.11

31

SCREW, SPECIAL (5X11)

90114-MEL-000

$2.41

32

CLIP, AIR HOSE (16MM)

90646-657-000

$7.32

33

O-RING (7.5X1.5)

91303-PK2-005

$2.81

34

SCREW, PAN (5MM)

91508-MM5-000

$4.08

35

BOLT-WASHER (6X30)

93404-06030-08

$3.10

36

SCREW, PAN (5X16)

93500-05016-0A

$1.49

37

SCREW, TAPPING (5X20)

93901-25420

$1.49

38

SCREW, TAPPING (4X16)

93903-24480

$1.49

39

SCREW, TAPPING (5X12)

93903-25280

$1.49

40

SCREW, TAPPING (5X16)

93903-25380

$1.49

41

SCREW, TAPPING (5X20)

93903-25480

$1.49

42

SCREW, TAPPING (5X25)

93903-25580

$1.49

43

SCREW, TAPPING (4X12)

93913-24220

$1.49

44

SCREW, TAPPING (5X16)

93913-25420

$1.49

45

NUT, FLANGE (6MM)

94050-06070

$1.49

46

WASHER, PLAIN (5MM)

94103-05000

$1.49

47

CLAMP, TUBE (D12.5)

95002-41250-00

$1.49

48

BULK HOSE, VACUUM (3.5X1000) (3.5X260)

95005-35001-20M

$9.67

49

BULK HOSE, VACUUM (3.5X8000) (3.5X820)

95005-35008-10M

$105.82

50

BOLT, FLANGE (6X12)

95701-06012-07

$1.62

51

BOLT, FLANGE (6X12)

96001-06012-07

$1.72
