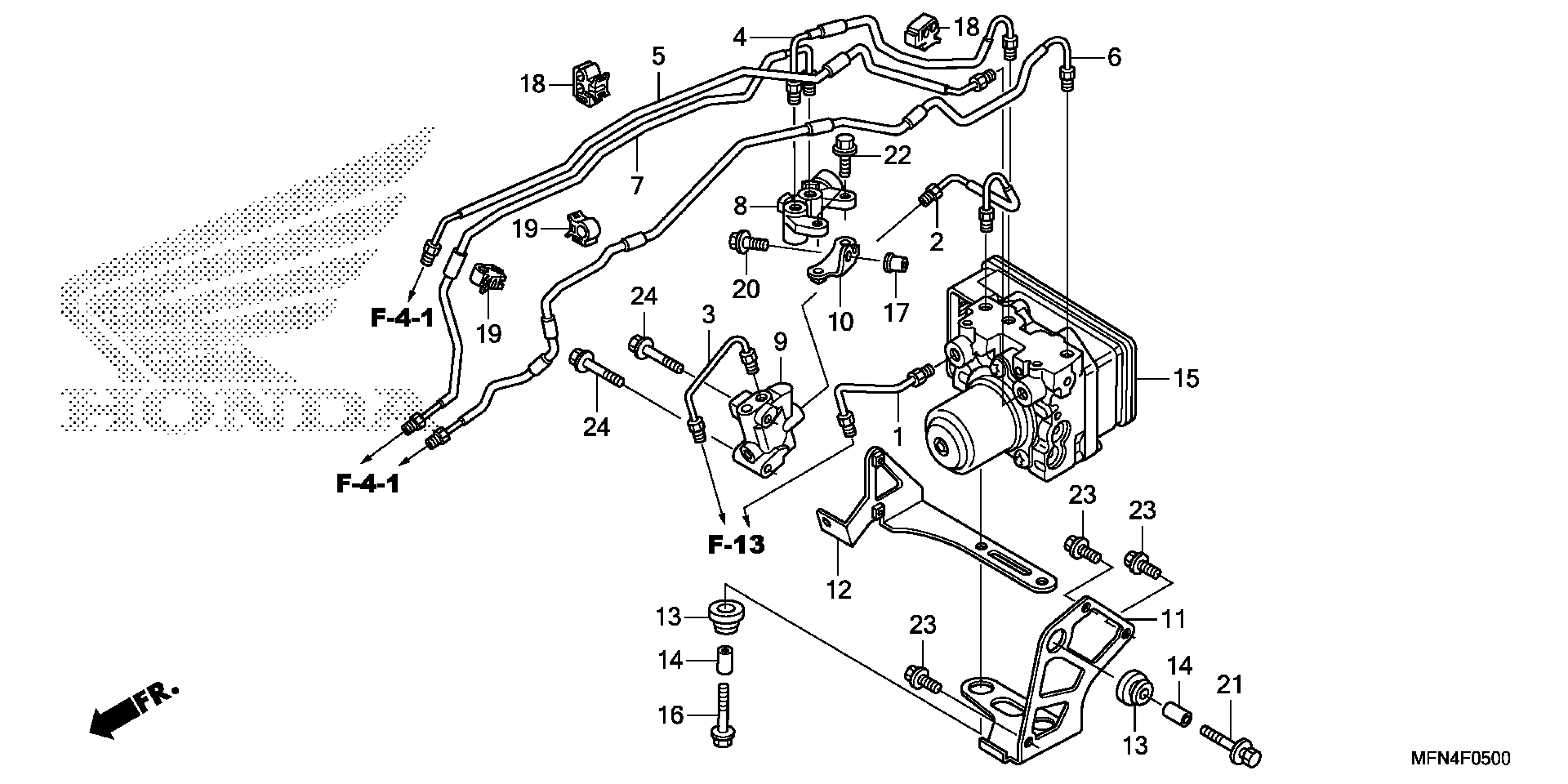

Honda CB1000RA2AC (14) MOTORCYCLE, ITA, VIN# ZDCSC605-EF315001 ABS MODULATOR Diagram

#

Description
Price

1

PIPE A, RR. BRAKE

43131-MFN-D10

$10.50

2

PIPE B, RR. BRAKE

43132-MFN-D10

$14.50

3

PIPE C, RR. BRAKE

43133-MFN-D10

$10.50

4

PIPE D, RR. BRAKE

43134-MFN-D10

$24.47

5

PIPE A, FR. BRAKE

45131-MFN-D10

$29.99

6

PIPE B, FR. BRAKE

45132-MFN-D10

$59.01

7

PIPE C, FR. BRAKE

45133-MFN-D10

$30.29

8

VALVE ASSY., DELAY

46300-MFG-D21

$151.60

9

VALVE ASSY., PROPORTIONING CONTROL

46400-MFG-D21

$96.94

10

STAY, DELAY VALVE

50270-MFN-D10

$3.49

11

STAY, MODULATOR

50280-MFN-D10

$10.35

12

STAY, P.C.V.

50290-MFN-D10

$8.00

13

RUBBER, MOUNTING

57101-MER-D21

$3.00

14

COLLAR

57103-SDA-003

$2.93

15

MODULATOR ASSY. (MSDS)

57110-MFN-D11

$2,556.51

16

BOLT, FLANGE (6X25)

90108-MJ1-000

$4.87

17

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.31

18

CLAMP, BRAKE PIPE (7.0X2)

90661-MEW-921

$2.62

19

CLIP, CABLE (10MM)

90690-GHB-641

$2.01

20

BOLT-WASHER (5X16)

93401-05016-08

$1.62

21

BOLT-WASHER (6X25)

93404-06025-00

$1.01

22

BOLT, FLANGE (6X14)

95701-06014-08

$1.63

23

BOLT, FLANGE (6X14)

95701-06014-00

$0.93

23

BOLT, FLANGE (6X14) This part replaces 95801-06014-00.

95701-06014-00

$0.93

24

BOLT, FLANGE (6X45)

95801-06045-08

$2.75
