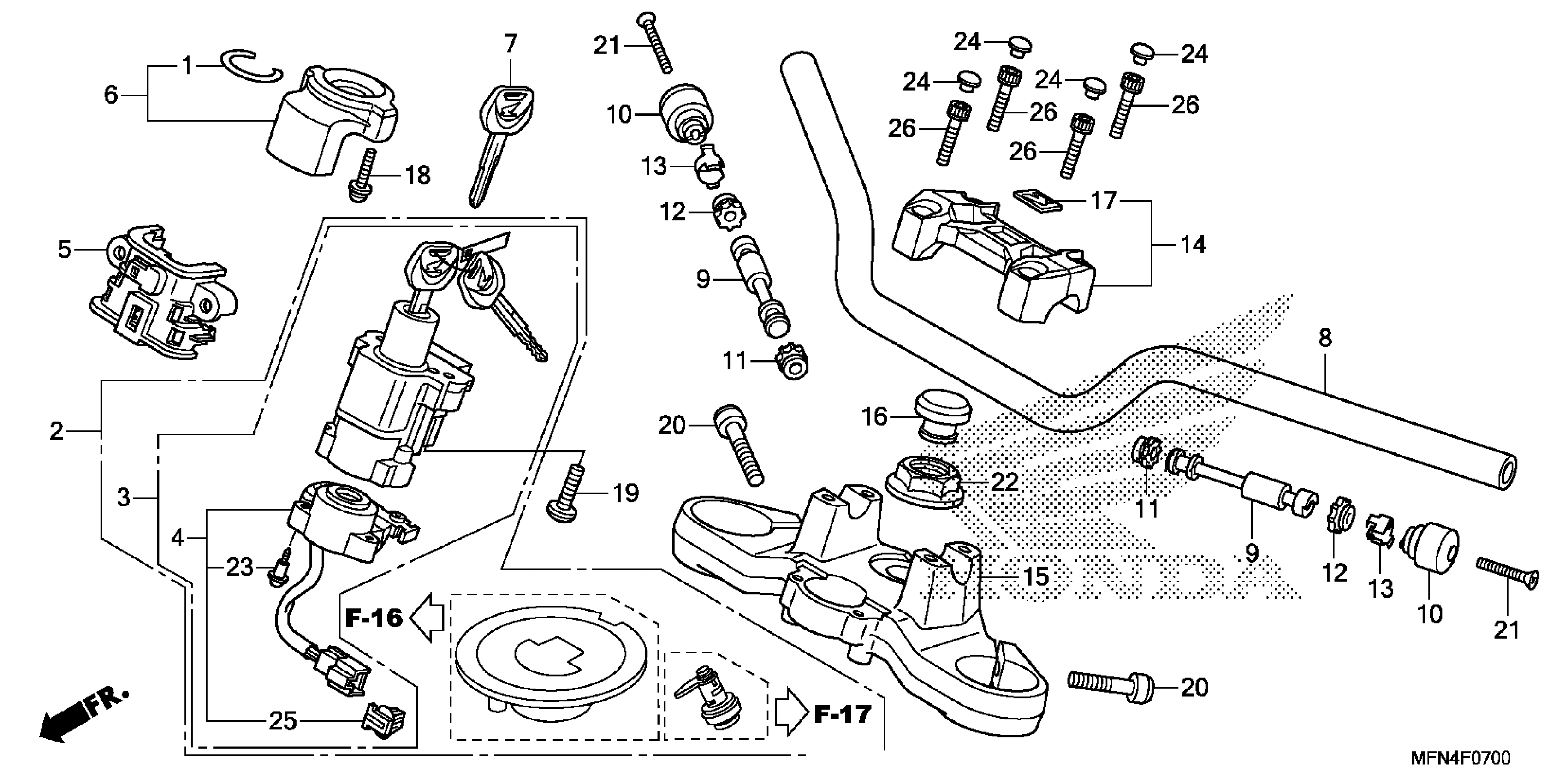

Honda CB1000RA (11) MOTORCYCLE, ITA, VIN# ZDCSC601-BF200001 TO ZDCSC601-BF299999 HANDLEBAR + TOP BRIDGE Diagram

#

Description
Price

1

SEAL, IGNITION SWITCH

30433-MBW-602

$2.58

2

KEY SET This part replaces 35010-MFN-L60.

35010-MFN-L62

$378.75

2

KEY SET This part replaces 35010-MFN-L61.

35010-MFN-L62

$378.75

3

SWITCH ASSY., COMBINATION & LOCK

35100-MFN-L61

$179.64

4

BASE, CONTACT

35101-MFN-D00

$75.35

5

GUIDE, WIRE

35105-MFN-D00

$1.78

6

COVER, COMBINATION SWITCH

35106-MFN-L61

$71.93

7

KEY, BLANK | (Optional).

35121-MAS-G01

$11.44

8

HANDLEBAR (COO)

53100-MFN-305

$197.04

9

WEIGHT B, HANDLE

53104-KT7-010

$19.09

10

WEIGHT, HANDLEBAR

53104-MY9-751

$21.49

11

RUBBER A, HANDLE WEIGHT

53106-MFN-D60

$4.04

12

RUBBER B, HANDLE WEIGHT

53107-MFN-D60

$2.90

13

RING, HANDLE WEIGHT SNAP

53108-KR3-940

$5.23

14

HOLDER ASSY., HANDLE (UPPER)

53130-MFN-D60

$47.32

15

BRIDGE, FORK TOP

53230-MFN-D60

$194.88

16

CAP, STEERING STEM NUT

53232-MJ4-670

$12.06

17

EMBLEM, PRODUCT (MARUI)

86150-GFC-901

$2.80

18

SCREW-WASHER (5X22)

90020-MBW-610

$2.33

19

BOLT, ONE-WAY (8MM)

90107-MBG-000

$2.80

20

BOLT, SOCKET (8X32)

90160-MN0-000

$3.84

21

SCREW, OVAL (6X50)

90191-MJ0-000

$3.18

22

NUT, STEERING STEM FLANGE

90304-MCF-000

$9.83

23

SCREW, TAPPING (3X16)

91059-KY2-711

$2.80

24

CAP, SOCKET BOLT

91456-371-770

$3.22

25

CLIP, CONNECTOR (NATURAL)

91533-S04-003

$3.55

26

BOLT, SOCKET (8X32) This part replaces 96600-08032-00.

96600-08032-10

$1.88

26

BOLT, SOCKET (8X32)

96600-08032-10

$1.88
