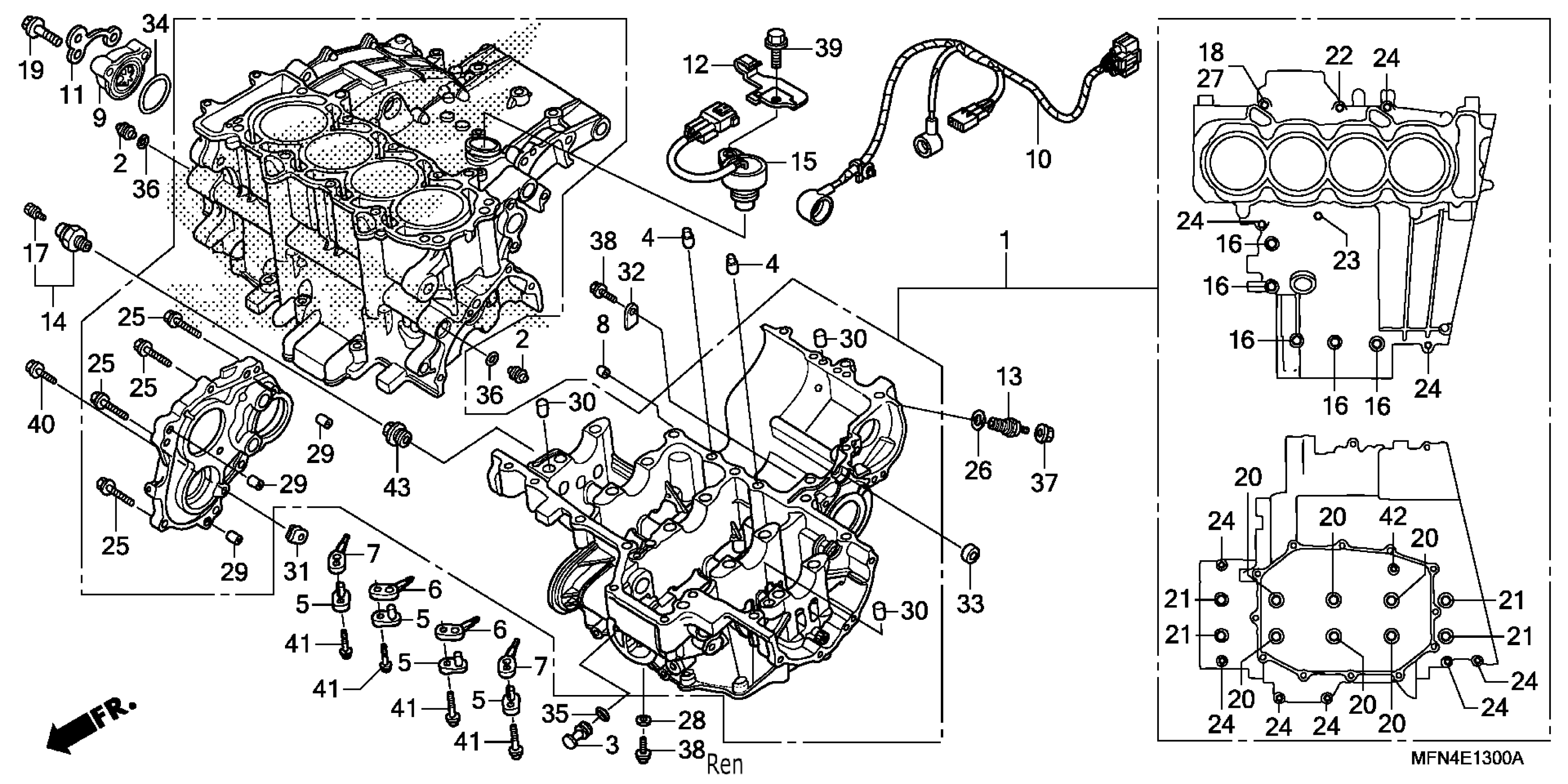

Honda CB1000RA (11) MOTORCYCLE, ITA, VIN# ZDCSC601-BF200001 TO ZDCSC601-BF299999 CRANKCASE Diagram

CRANKCASE SET

11000-MFN-L60

$2,592.88

PLUG, SEALING

11103-MEL-000

$7.61

PLUG, OIL COOLER

11104-MEL-000

$6.28

ORIFICE (1.6MM)

11105-MEL-000

$7.00

BUSH, ORIFICE

11145-MEL-000

$21.93

ORIFICE A (#100)

11146-MEL-000

$20.87

ORIFICE B (#100)

11147-MEL-000

$20.87

ORIFICE (1.4MM)

11206-MEL-000

$2.06

FINDER, OIL LEVEL

11360-MFN-D00

$27.87

SUB-HARNESS, ENGINE

32101-MFN-D00

$38.61

GUIDE, OIL PRESSURE SWITCH WIRE

32114-MFN-D00

$3.62

HOLDER, CONNECTOR

32125-MFN-D00

$5.54

SWITCH ASSY., NEUTRAL

35600-MK4-860

$16.96

SWITCH ASSY., OIL PRESSURE (DENSO)

37240-P13-013

$39.96

SENSOR ASSY., SPEED

37700-MEL-000

$107.10

BOLT, FLANGE (8X55)

90001-MFA-D00

$1.49

BOLT-WASHER (4X8) (DENSO)

90002-PA6-003

$5.33

BOLT, SPECIAL (7X42.5)

90004-MFA-D00

$2.33

BOLT, FLANGE (6X28)

90006-MFN-D00

$2.16

BOLT, FLANGE (9X105)

90015-MFA-D01

$4.13

BOLT, FLANGE (9X125)

90016-MFA-D01

$4.38

BOLT, FLANGE (7X60)

90017-MFA-D00

$2.41

BOLT, FLANGE (7X80)

90018-MFA-D00

$3.32

BOLT, FLANGE (7X40)

90019-MFA-D00

$1.84

BOLT, FLANGE (8X30)

90133-MEL-000

$3.01

WASHER, NEUTRAL

90443-MJ6-000

$1.75

WASHER, SEALING (7MM)

90447-KE1-000

$2.42

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.80

PIN, DOWEL (8X14)

90701-MEL-000

$2.28

PIN, DOWEL (10X16)

90701-MV9-670

$4.00

PLATE A, BEARING SETTING

91011-MEL-000

$5.09

PLATE B, BEARING SETTING

91012-MEL-000

$1.75

OIL SEAL (8X16X7)

91202-MEL-003

$3.44

O-RING (32X1.7)

91301-MEE-003

$1.72

O-RING (11.8X2.4) This part replaces 91302-ZE9-000.

91302-ZE9-003

$2.33

O-RING (11.8X2.4)

91302-ZE9-003

$2.33

O-RING (13.8X2.5)

91303-377-000

$3.18

NUT, FLANGE (4MM)

94050-04000

$1.12

BOLT, FLANGE (6X14)

95701-06014-00

$0.91

BOLT, FLANGE (6X18)

95701-06018-00

$1.48

BOLT, FLANGE (6X20)

95701-06020-00

$1.61

BOLT, FLANGE (6X25)

95701-06025-00

$1.64

BOLT, FLANGE (8X40)

95701-08040-00

$1.14

BOLT, SEALING (22MM)

90048-MFL-000

$8.65
