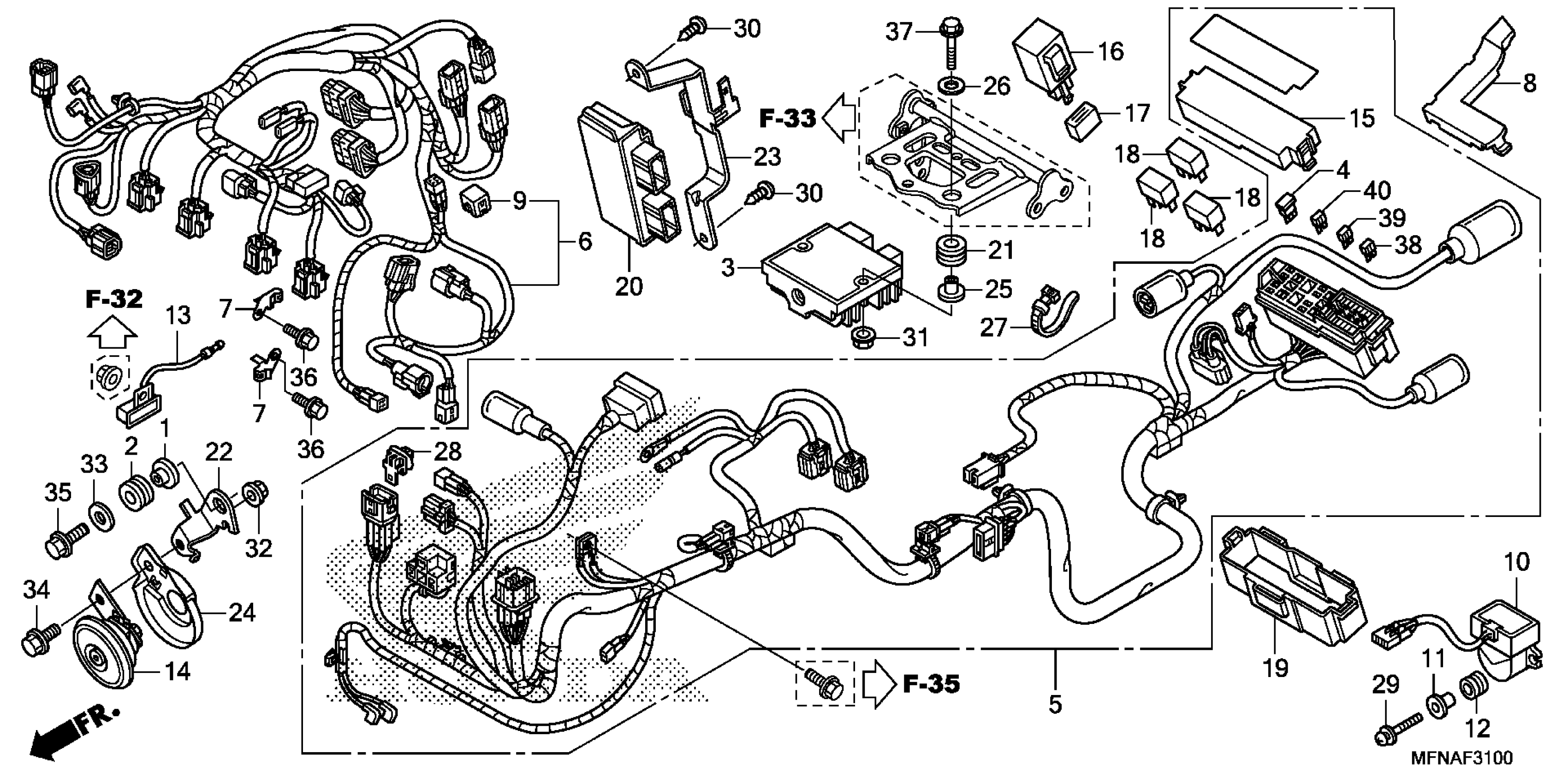

Honda CB1000R4AC (16) MOTORCYCLE, ITA, VIN# ZDCSC601-GF225001 WIRE HARNESS Diagram

COLLAR (8MM)

18422-MR1-000

$5.62

GROMMET, RESERVE TANK

19111-MF5-000

$2.88

RECTIFIER ASSY., REGULATE

31600-MFG-D01

$199.16

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$10.81

WIRE HARNESS

32100-MFN-L60

$442.92

SUB-HARNESS, INJECTOR

32103-MFN-L60

$186.57

GUIDE, HARNESS

32109-MFN-D00

$3.39

WIRE, PROTECTOR

32131-MFN-D00

$3.34

CAP, DUMMY (4P) (RED) (Honda Code 7679160)

32606-GEV-761

$4.52

SENSOR, BANK ANGLE

35161-MFN-D01

$127.84

COLLAR

35162-MN5-003

$7.25

GROMMET

35163-MN5-003

$3.15

RESISTOR

35400-MFN-D01

$19.15

HORN

38110-MFN-D01

$18.46

COVER (UPPER)

38252-MFJ-D01

$11.24

RELAY, TURN SIGNAL (DENSO)

38301-MBW-D21

$46.44

SUSPENSION, TURN SIGNAL RELAY (DENSO)

38306-GE8-008

$4.52

RELAY (MICRO ISO 4P) This part replaces 38501-MEL-003.

38501-MKP-DN1

$4.80

SUSPENSION, POWER BOX

38506-MFN-D00

$2.02

PGM-FI UNIT

38770-MFN-L61

$951.72

RUBBER, MOUNTING

50124-MFG-D00

$1.49

SUB-STAY, HORN

50312-MFN-D00

$6.44

STAY, ELECTRONIC CONTROL UNIT

50321-MFG-D00

$3.08

GUARD, HORN

50380-MFN-D00

$6.70

COLLAR, FAIRING SETTING

64209-MN5-000

$2.97

WASHER B, HANDLE HOLDER SETTING

90525-030-000

$1.75

BAND, WIRE HARNESS

90652-MB0-000

$3.15

CLIP, CONNECTOR (BLACK) (Honda Code 7386865)

91565-SEL-003

$3.67

SCREW-WASHER (4X22)

93893-04022-08

$1.93

SCREW, TAPPING (5X12)

93903-25280

$1.49

NUT, FLANGE (6MM)

94050-06070

$1.49

NUT, FLANGE (8MM)

94050-08070

$1.49

WASHER, PLAIN (8MM)

94103-08700

$1.49

BOLT, FLANGE (8X16)

95701-08016-07

$1.80

BOLT, FLANGE (8X22)

95701-08022-07

$2.16

BOLT, FLANGE (6X10)

96001-06010-00

$1.55

BOLT, FLANGE (6X28)

96300-06028-07

$1.80

FUSE, MINI (10A)

98200-41000

$1.49

FUSE, MINI (20A)

98200-42000

$1.49

FUSE, MINI (30A) (Honda Code 5359666)

98200-43000

$1.67
