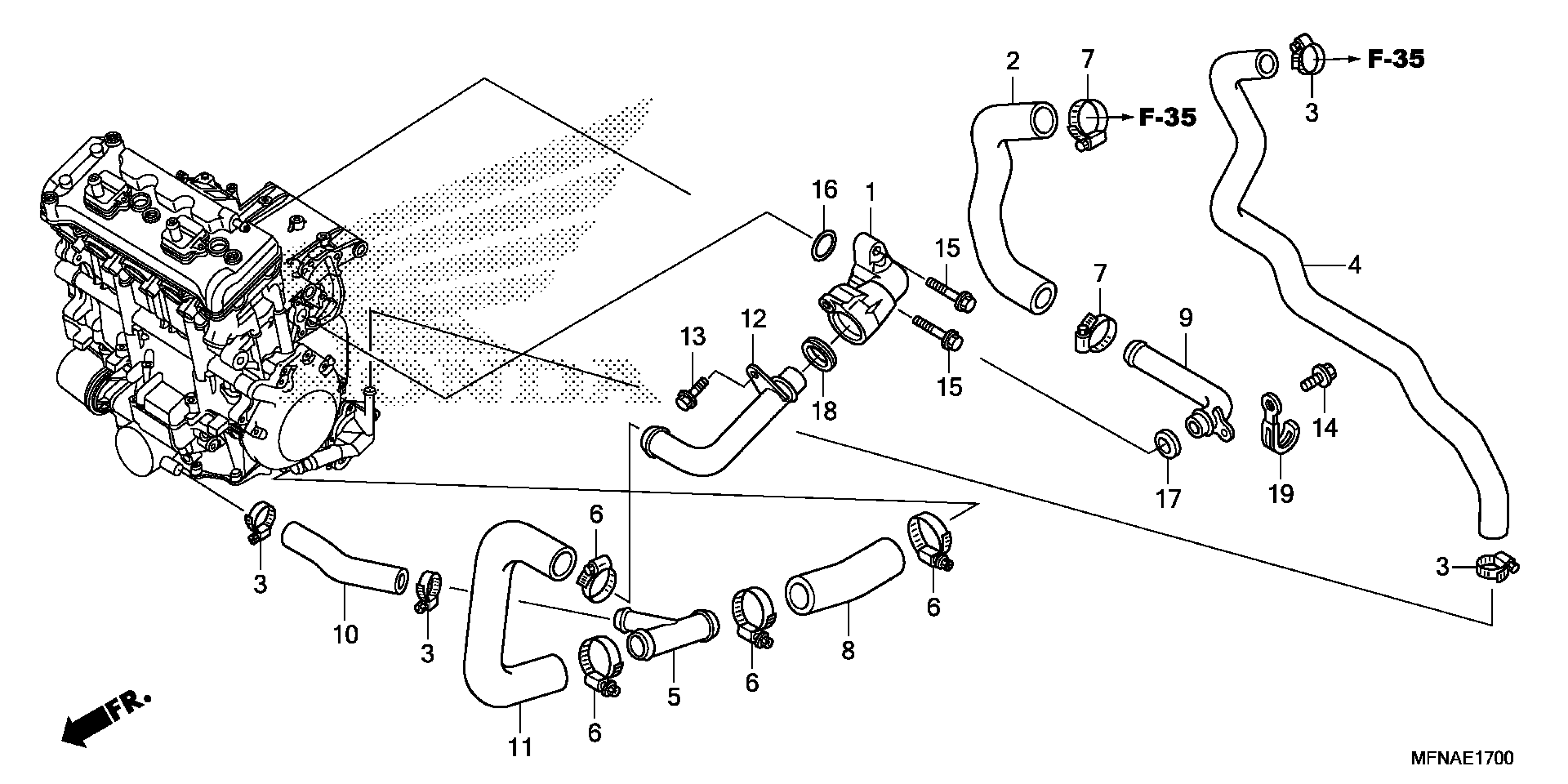

Honda CB1000R4AC (16) MOTORCYCLE, ITA, VIN# ZDCSC601-GF225001 WATER PIPE Diagram

Description

Price

JOINT, WATER

19060-MFN-D00

$60.75

HOSE A, RADIATOR (UPPER)

19501-MFN-D00

$15.30

CLAMP, WATER HOSE (25MM)

19504-KY1-003

$10.29

HOSE, BYPASS

19506-MFN-D00

$25.98

JOINT, HOSE (THREE-WAY)

19507-MFN-D00

$12.16

CLAMP, HOSE

19516-MER-D10

$7.66

CLAMP, HOSE (24-32MM)

19516-ML7-691

$14.40

HOSE A, CYLINDER BLOCK

19524-MEL-D20

$7.10

PIPE, WATER

19525-MFA-D00

$45.30

HOSE E, CYLINDER BLOCK

19526-MEL-D20

$8.21

HOSE, WATER JOINT

19528-MFN-D00

$18.62

PIPE, WATER JOINT

19530-MFN-D00

$51.05

BOLT, FLANGE (6X14)

90002-MFN-D00

$2.13

BOLT, FLANGE (6X14) (NSHF)

90006-GHB-620

$1.84

BOLT, FLANGE (6X28)

90006-MFN-D00

$2.38

O-RING (24.5X2)

91302-MEL-003

$2.57

SEAL, WATER PIPE

91315-MB0-013

$2.70

SEAL, WATER PIPE

91315-MFN-D00

$1.97

CLIP (2X60)

91410-679-000

$10.06
