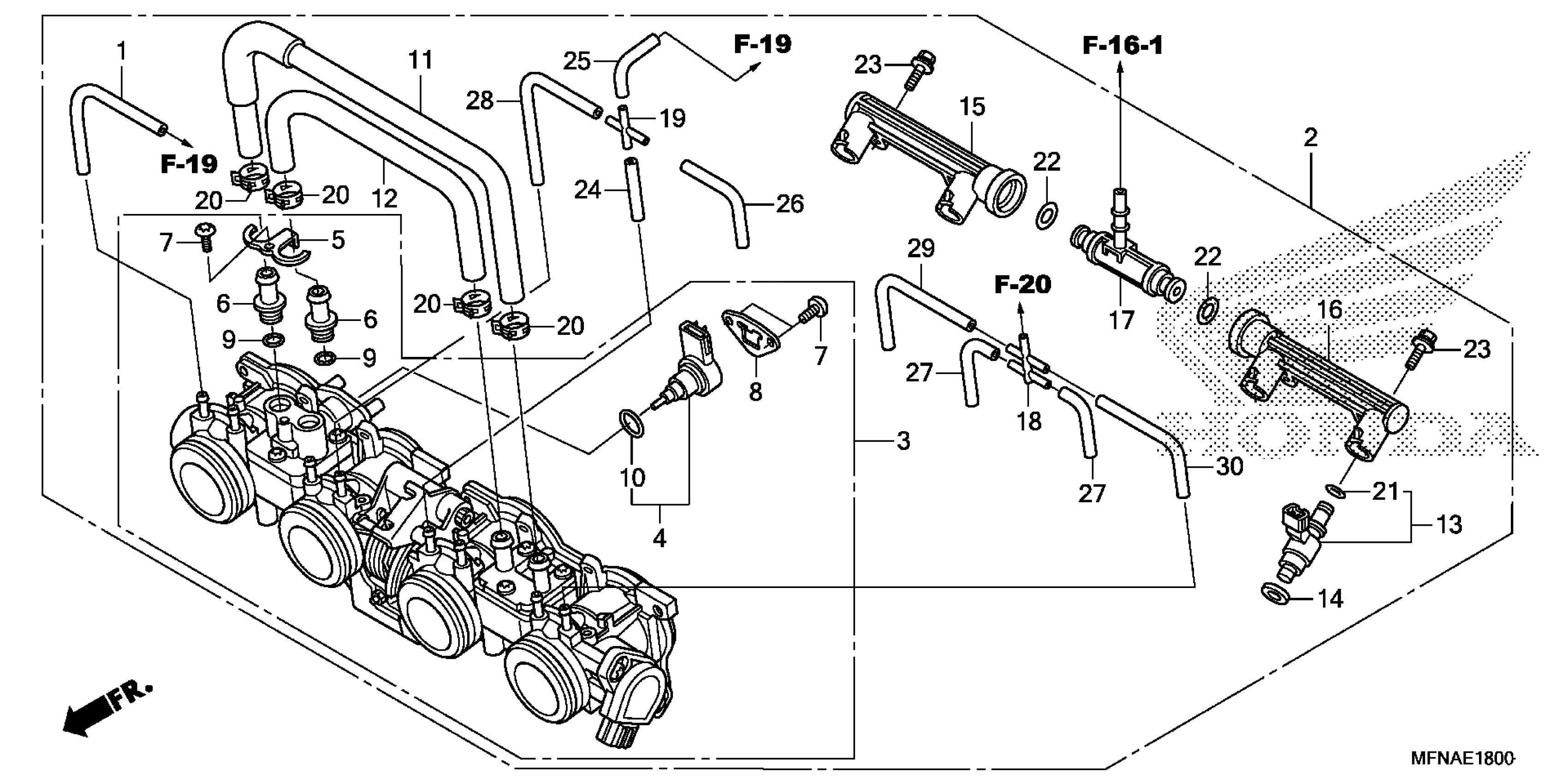

Honda CB1000R4AC (16) MOTORCYCLE, ITA, VIN# ZDCSC601-GF225001 THROTTLE BODY Diagram

#

Description
Price

1

TUBE (3.5X970)

16197-MFN-D01

$13.77

2

BODY ASSY., THROTTLE (GQ3VA B) (ENGINE NO.)

16400-MFN-L62

$2,171.13

3

BODY ASSY., THROTTLE (THROTTLE BODY NO.)

16401-MFN-L62

$1,280.74

4

MOTOR ASSY.

16430-MFJ-D01

$164.85

5

PLATE, JOINT

16431-MFJ-D01

$8.28

6

JOINT, IDLE AIR CONTROL VALVE

16432-MFG-D01

$7.89

7

SCREW, TORX

16433-HN8-A61

$1.49

8

PLATE, IDLE AIR CONTROL VALVE

16433-MEW-921

$10.34

9

O-RING

16434-MFJ-D01

$3.03

10

O-RING (17.8X1.9)

16435-MFJ-D01

$3.03

11

TUBE (9X285)

16440-MFA-D01

$7.37

12

TUBE

16441-MFA-D01

$6.52

13

INJECTOR ASSY., FUEL

16450-MFA-D02

$145.49

14

SEAL RING, INJECTOR

16472-MCW-000

$2.39

15

PIPE A, FUEL

16610-MFA-D01

$66.85

16

PIPE B, FUEL

16620-MFA-D01

$66.85

17

T-JOINT, FUEL

16630-MFM-003

$33.43

18

JOINT, FIVE-WAY

17201-MCJ-003

$8.61

19

JOINT, FOUR-WAY

17201-MCZ-003

$7.30

20

CLAMP, MASTER CYLINDER OIL HOSE

43514-MN9-006

$14.40

21

O-RING (7.8X1.9)

91301-P7A-004

$3.35

22

O-RING (7.47X3.6)

91301-PLC-000

$3.11

23

BOLT-WASHER (5X20)

93401-05020-00

$1.49

24

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$9.67

25

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$9.67

26

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$9.67

27

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$9.67

28

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$9.67

29

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$9.67

30

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$9.67
