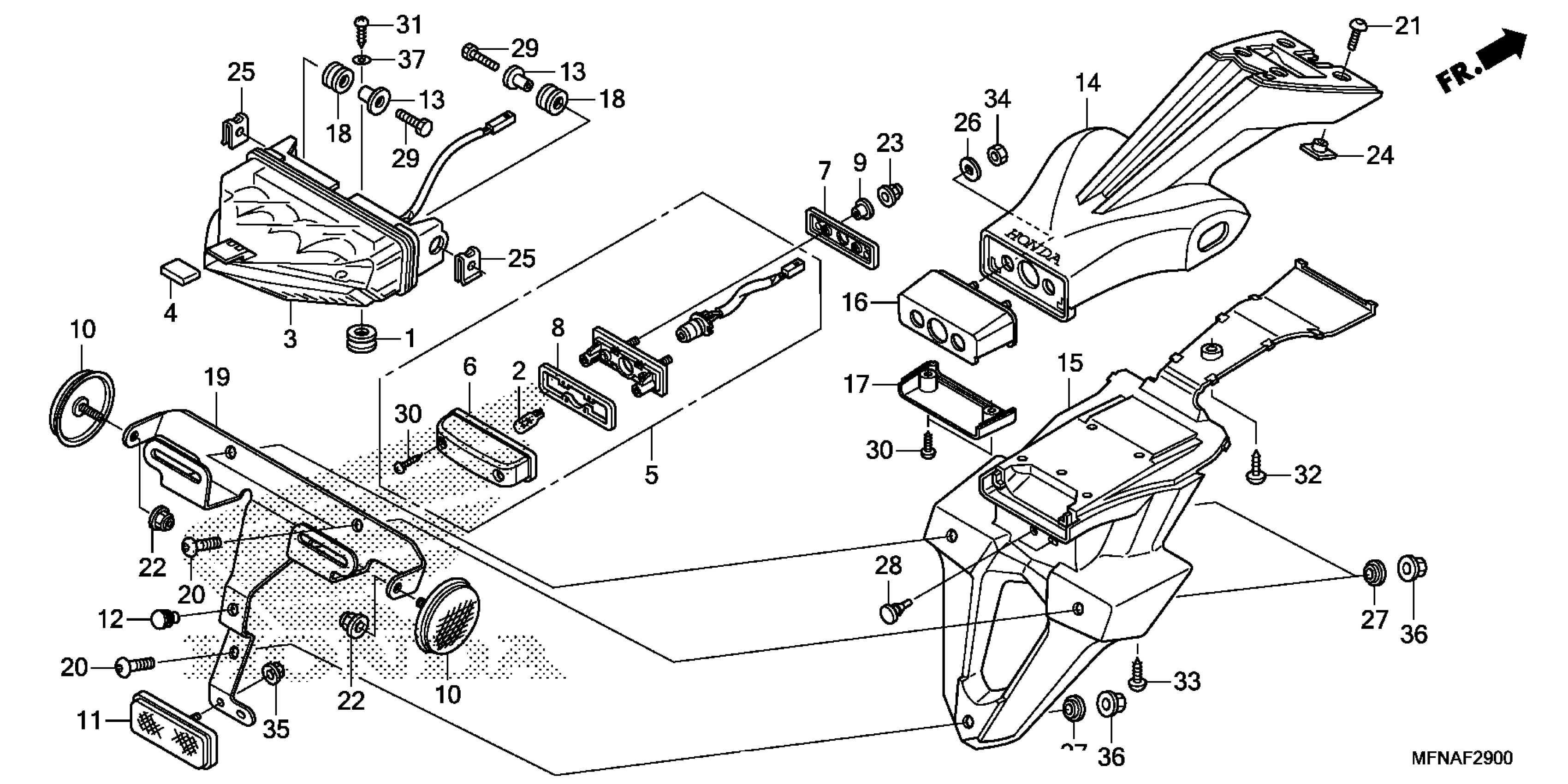

Honda CB1000R4AC (16) MOTORCYCLE, ITA, VIN# ZDCSC601-GF225001 TAILLIGHT Diagram

GROMMET, RADIATOR SETTING

19034-MB3-000

$4.50

BULB (12V 5W) (STANLEY)

33301-SA0-741

$3.74

TAILLIGHT UNIT (COO)

33701-MFN-305

$179.32

SUSPENSION, TAILLIGHT

33706-MFN-D00

$0.82

LIGHT ASSY., LICENSE (12V 5W)

33720-MFN-L61

$81.29

COVER, LICENSE

33721-GET-671

$17.66

RUBBER, LICENSE LIGHT

33728-MFL-000

$2.74

GASKET, LENS

33729-MCZ-003

$8.75

COLLAR, REGULATOR MOUNTING

33731-MJ0-940

Unavailable

REFLECTOR, RR. REFLEX (RED)

33741-HB9-641

$12.18

REFLECTOR, REFLEX (STANLEY)

33741-MS6-921

$13.92

PLUG, HANDLE COVER (LOWER)

53125-174-670

$1.79

COLLAR, TAILLIGHT

61104-MFN-D00

$10.60

STAY SET, RR. FENDER (TYPE1) (WL)

80050-MFN-D02ZA

$18.06

FENDER A

80100-MFN-L60

$24.46

BRACKET, LICENSE LIGHT

80107-MFN-L60

$8.12

COVER, LICENSE LIGHT

80108-MFN-L60

$18.72

RUBBER A, MOUNTING

80119-MEL-000

$2.32

BRACKET, LICENSE PLATE

84700-MFN-L60

$16.84

BOLT, SPECIAL (6X17)

90085-MZ1-000

$3.50

SCREW, PAN (6X12)

90106-MAV-000

$2.01

NUT, U (6MM) NUT, FLANGE (6MM)

90301-473-003

$3.89

NUT, FLANGE (5MM) (FUSE RASHI)

90301-MG8-000

$4.31

NUT, SPECIAL (6MM)

90302-MCZ-000

$2.91

NUT, SPRING (5MM)

90320-GE2-760

$1.82

WASHER (6.5X25X1.5)

90404-680-000

$4.64

COLLAR, SEAT COWL MOUNT (INNER)

91505-MBT-C40

$10.43

STOPPER, FR. BUMPER FACE

91602-SL4-000

$7.71

BOLT, HEX. (5X20) (USE ONLY WITH ORIGINAL OIL PUMP ASSY. P/N 15100-437-672.)

92101-05020-0A

$1.18

SCREW, TAPPING (4X16)

93901-24480

$0.82

SCREW, TAPPING (4X12)

93903-24320

$0.90

SCREW, TAPPING (5X16)

93903-25320

$0.90

SCREW, TAPPING (5X20)

93903-25480

$0.90

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.31

NUT, HEX. (6MM)

94001-06200-0S

$1.31

NUT, FLANGE (5MM)

94050-05000

$1.31

NUT, FLANGE (6MM)

94050-06070

$1.44

WASHER, PLAIN (5MM)

94103-05700

$0.87
