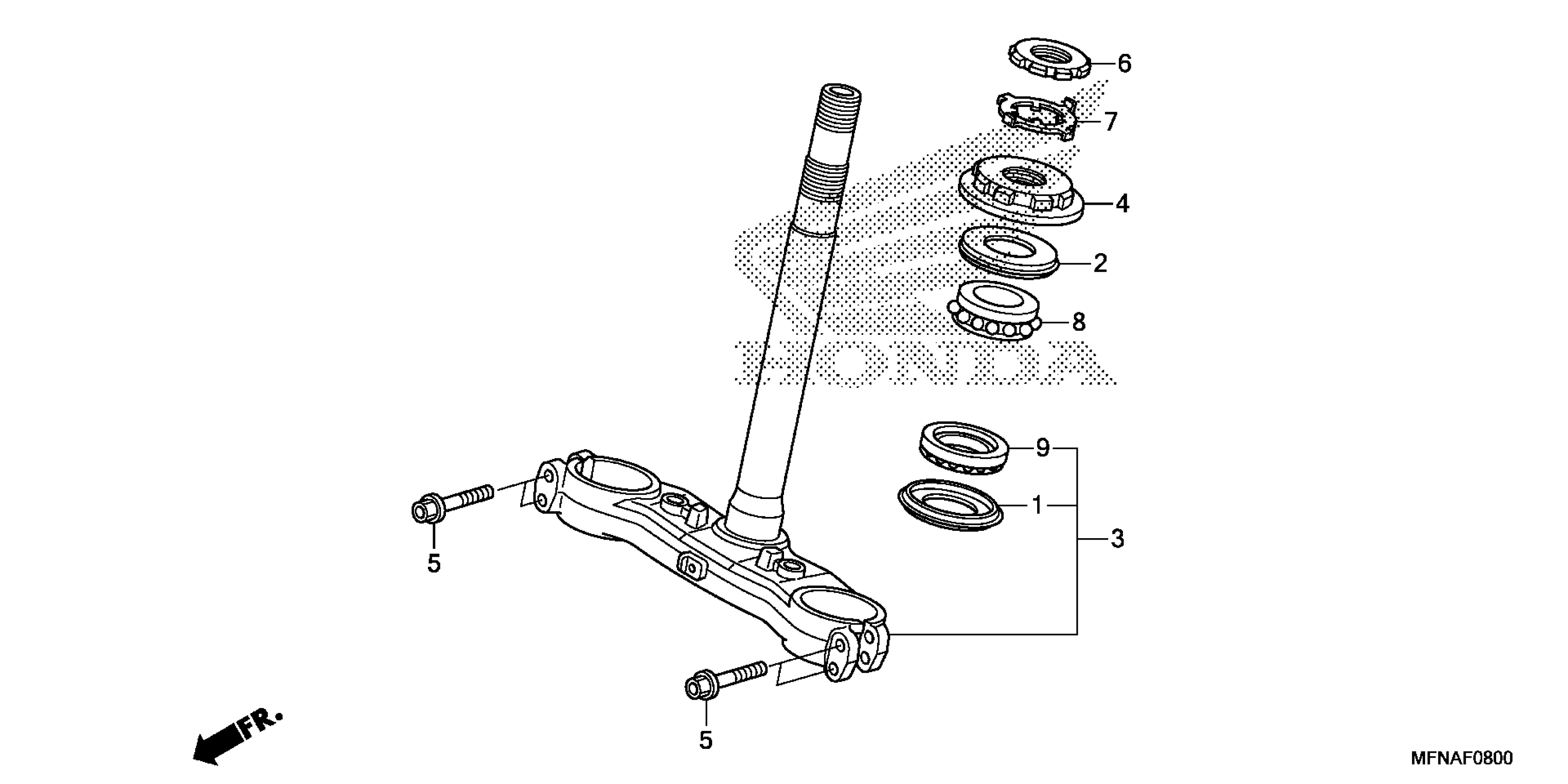

Honda CB1000R4AC (16) MOTORCYCLE, ITA, VIN# ZDCSC601-GF225001 STEERING STEM Diagram

#

Description

Price

1

DUST SEAL, STEERING HEAD

53214-371-010

$11.53

2

DUST SEAL, STEERING HEAD (ARAI)

53214-KA4-701

$6.32

3

STEM SUB-ASSY., STEERING

53219-MFN-D00

$224.35

4

THREAD, STEERING HEAD TOP

53220-MCJ-D10

$14.69

5

BOLT (8X42)

90134-MEE-D00

$2.44

6

THREAD, STEERING HEAD TOP (B)

90302-425-830

$19.95

7

WASHER

90506-MBL-610

$4.47

8

BEARING, HEAD PIPE (UPPER) (KOYO)

91015-KT8-005

$32.59

8

BEARING, HEAD PIPE (UPPER) This part replaces 91015-MB4-771.

91015-KT8-005

$32.59

9

BEARING, HEAD PIPE (LOWER) (KOYO)

91016-KT8-005

$32.59

9

BEARING, HEAD PIPE (LOWER) This part replaces 91016-MB4-771.

91016-KT8-005

$32.59
