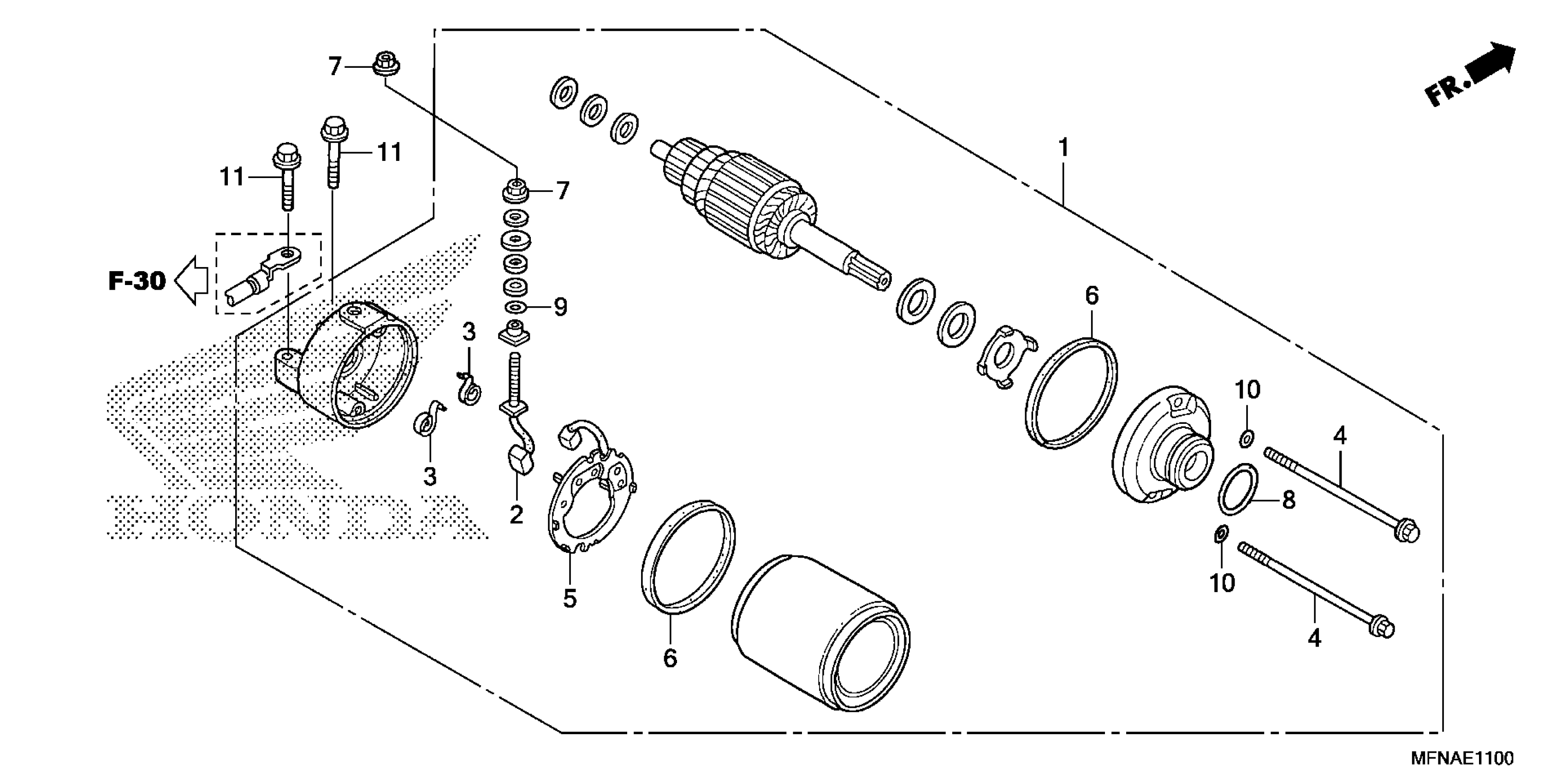

Honda CB1000R4AC (16) MOTORCYCLE, ITA, VIN# ZDCSC601-GF225001 STARTING MOTOR Diagram

STARTER MOTOR ASSY.

31200-MEL-003

$468.30

TERMINAL SET, BRUSH

31201-MBE-008

$10.26

SPRING, CARBON BRUSH

31204-KS5-901

$2.80

BOLT, SETTING

31205-MEL-D20

$2.25

HOLDER SET, BRUSH

31206-MBE-008

$23.38

RING

31207-MBE-008

$3.90

NUT-WASHER (6MM)

90071-MB0-000

$1.88

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

Unavailable

O-RING (24.4X3.1) (Honda Code 2618221)

91312-MG7-003

Unavailable

O-RING (Honda Code 1292184)

91320-MB0-000

$2.20

O-RING

91320-MBE-008

$2.22

BOLT, FLANGE (6X25)

95801-06025-08

$1.64
