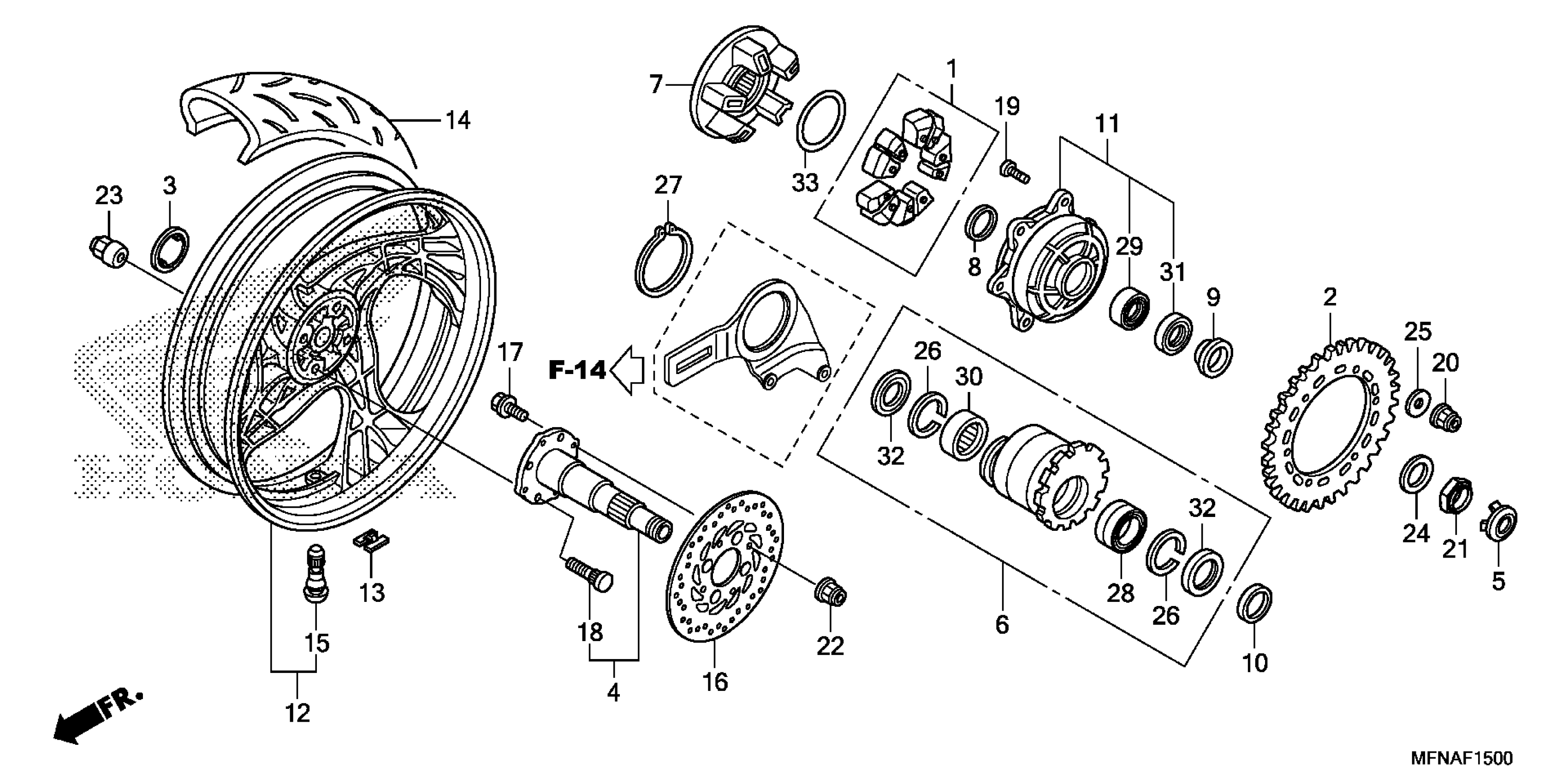

Honda CB1000R4AC (16) MOTORCYCLE, ITA, VIN# ZDCSC601-GF225001 REAR WHEEL Diagram

#

Description
Price

1

DAMPER SET, FINAL DRIVEN

06410-MFN-D00

$97.69

2

SPROCKET, FINAL DRIVEN (44T)

41201-MFN-D00

$69.13

3

CAP, RR. WHEEL

42120-GCM-900

$5.26

4

AXLE, RR.

42300-MFN-D00

$289.57

5

CAP, RR. AXLE

42303-MFN-D00

$1.49

6

HOLDER, BEARING

42500-MBG-000

$296.16

7

HUB, FINAL DRIVEN

42605-MFN-D00

$227.59

8

COLLAR, RR. AXLE DISTANCE

42621-MT4-000

$19.77

9

COLLAR, RR. AXLE SIDE

42622-MT4-000

$21.89

10

COLLAR, RR. AXLE

42623-MBG-000

$22.56

11

HUB ASSY., SPROCKET

42630-MFN-D00

$220.82

12

WHEEL SUB-ASSY., RR. (COO)

42650-MFN-305

$311.10

13

WEIGHT, BALANCE (10G)

42704-MER-D00

$9.61

13

WEIGHT, BALANCE (20G)

42705-MER-D00

$17.93

13

WEIGHT, BALANCE (30G)

42706-MER-D00

$17.67

14

TIRE (180/55ZR17) This part replaces 42711-MFN-D01.

42711-MFN-D02

$206.53

15

VALVE, RIM (BS) This part replaces 42753-KBS-901.

42753-ML7-003

$12.74

15

VALVE, RIM This part replaces 42753-KWF-901.

42753-K38-901

$1.49

15

VALVE, RIM (BS) VALVE, RIM (MICHELIN)

42753-ML7-003

$12.74

15

VALVE, RIM (BS) This part replaces 42753-MR4-901.

42753-ML7-003

$12.74

16

DISK, RR. BRAKE

43251-MFN-D01

$80.74

17

BOLT, FLANGE (8X20)

90102-MFN-D00

$1.92

18

BOLT, WHEEL (ROCKNEL FASTENER) This part replaces 90113-SA0-025.

90113-SM1-005

$2.78

18

BOLT, WHEEL (ROCKNEL FASTENER)

90113-SM1-005

$2.78

19

BOLT (10X30)

90121-MFN-D00

$2.92

20

NUT, U FLANGE (10MM)

90304-MFN-D01

$2.64

21

NUT, LOCK (35MM)

90306-MFN-D00

$11.61

22

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

22

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.35

23

NUT, WHEEL (FUSE RASHI)

90381-S4L-003

$10.64

24

WASHER, CONICAL SPRING (35)

90501-MBG-003

$7.72

25

WASHER (10MM)

90502-MFN-D00

$2.43

26

CIRCLIP (INNER) (62MM)

90651-ML0-731

$5.98

27

CIRCLIP (OUTER) (75MM)

90652-ML0-731

$10.43

28

BEARING, RADIAL BALL (6908LU)

91061-ML0-731

$47.56

29

BEARING, RADIAL BALL (35X55X10)

91061-MT4-003

$88.96

30

BEARING, RR. AXLE NEEDLE

91062-MR7-003

$42.42

31

DUST SEAL (45X55X5) (ARAI)

91258-ML7-003

$8.66

32

DUST SEAL (50X62X5)

91284-MR7-003

$12.78

33

O-RING, SPROCKET HUB (52X2)

91352-MN8-003

$2.61
