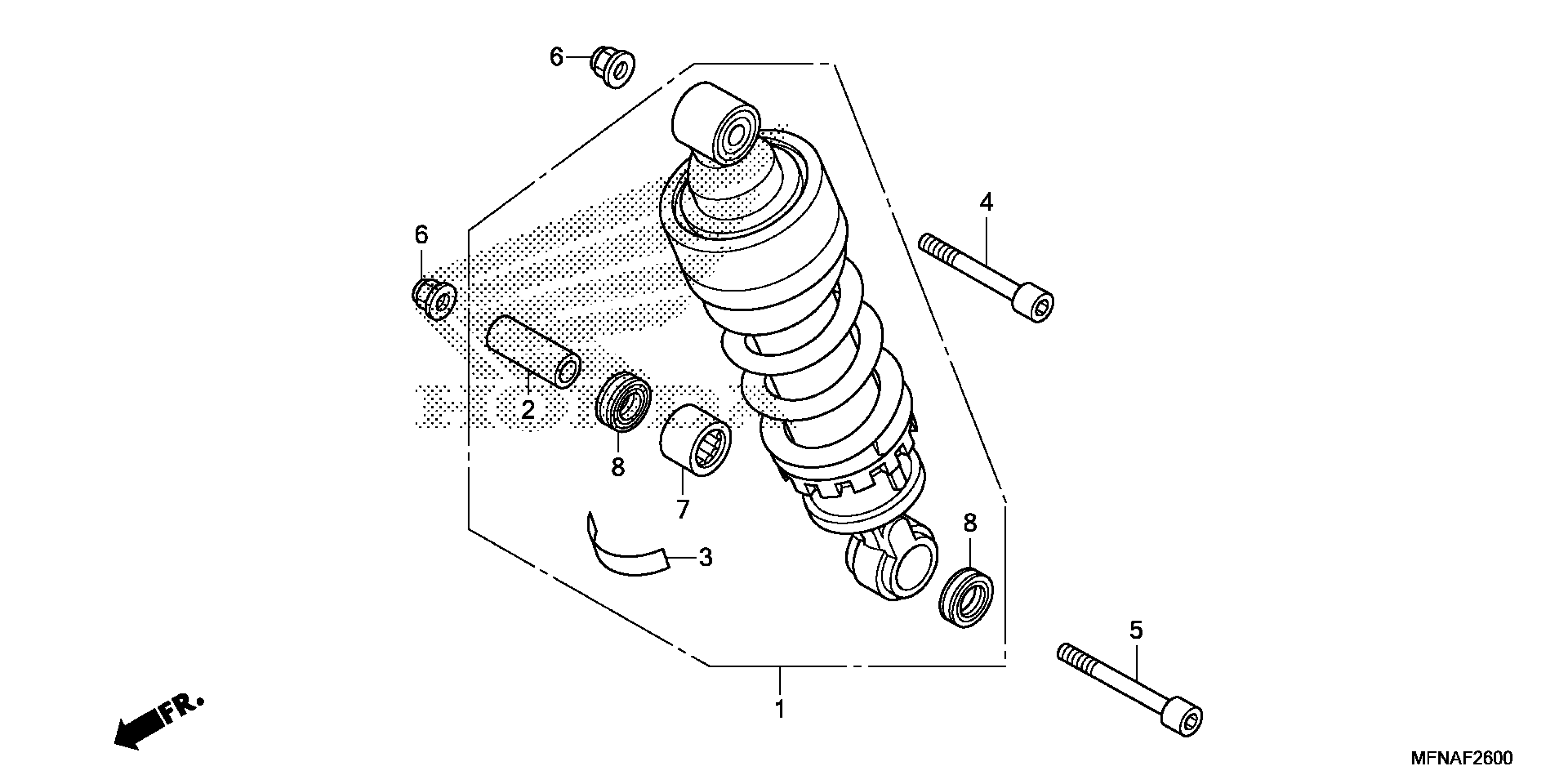

Honda CB1000R4AC (16) MOTORCYCLE, ITA, VIN# ZDCSC601-GF225001 REAR SHOCK ABSORBER Diagram

#

Description

Price

1

CUSHION ASSY., RR. (COO)

52400-MFN-315

$812.35

2

COLLAR, CUSHION CONNECTING ROD

52463-MAL-G00

$10.49

3

LABEL, RR. DAMPER

87516-MBL-610

$3.93

4

BOLT, SOCKET (10X57)

90107-MBL-610

$4.04

5

BOLT, SOCKET (10X70)

90110-MR7-000

$7.67

6

NUT U, FLANGE (10MM)

90304-MCS-G01

$2.93

7

BEARING, NEEDLE (KOYO)

91071-KV3-005

$22.18

8

DUST SEAL (17X24X5) (ARAI)

91262-KV3-831

$5.77
