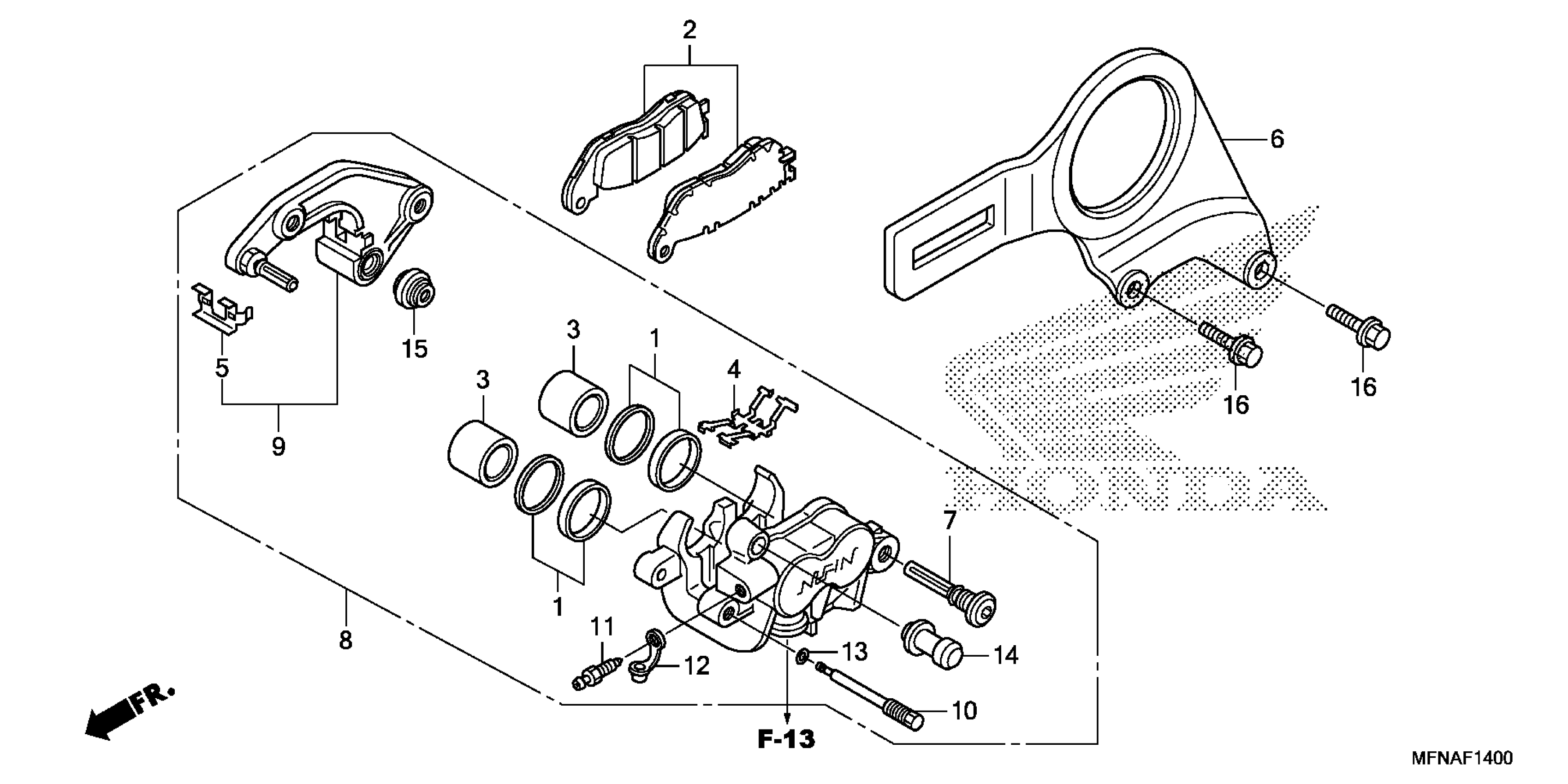

Honda CB1000R4AC (16) MOTORCYCLE, ITA, VIN# ZDCSC601-GF225001 REAR BRAKE CALIPER Diagram

Description

Price

SEAL SET, PISTON (RIGHT SIDE, QTY-1)

06431-MA3-405

$7.00

PAD SET, RR.

06435-MFN-D02

$50.78

PISTON (27X31)

43107-MAJ-G41

$36.21

SPRING, PAD

43108-MFN-D02

$3.85

RETAINER

43112-MEL-D21

$5.03

BRACKET, RR. BRAKE

43120-MFN-D00

$87.28

BOLT, PIN

43131-KW3-006

$9.48

CALIPER SUB-ASSY., RR. BRAKE (NISSIN)

43150-MFN-D01

$327.12

BRACKET SUB-ASSY., RR.

43190-MFN-D01

$105.81

PIN, HANGER

43215-KZ4-J41

Unavailable

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

CAP, BLEEDER

43353-461-771

Unavailable

RING, STOPPER

45111-MAJ-G41

$3.63

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.21

BOOT B

45133-MA3-006

$5.21

BOLT, FLANGE (8X25)

90131-MCJ-000

$2.32
