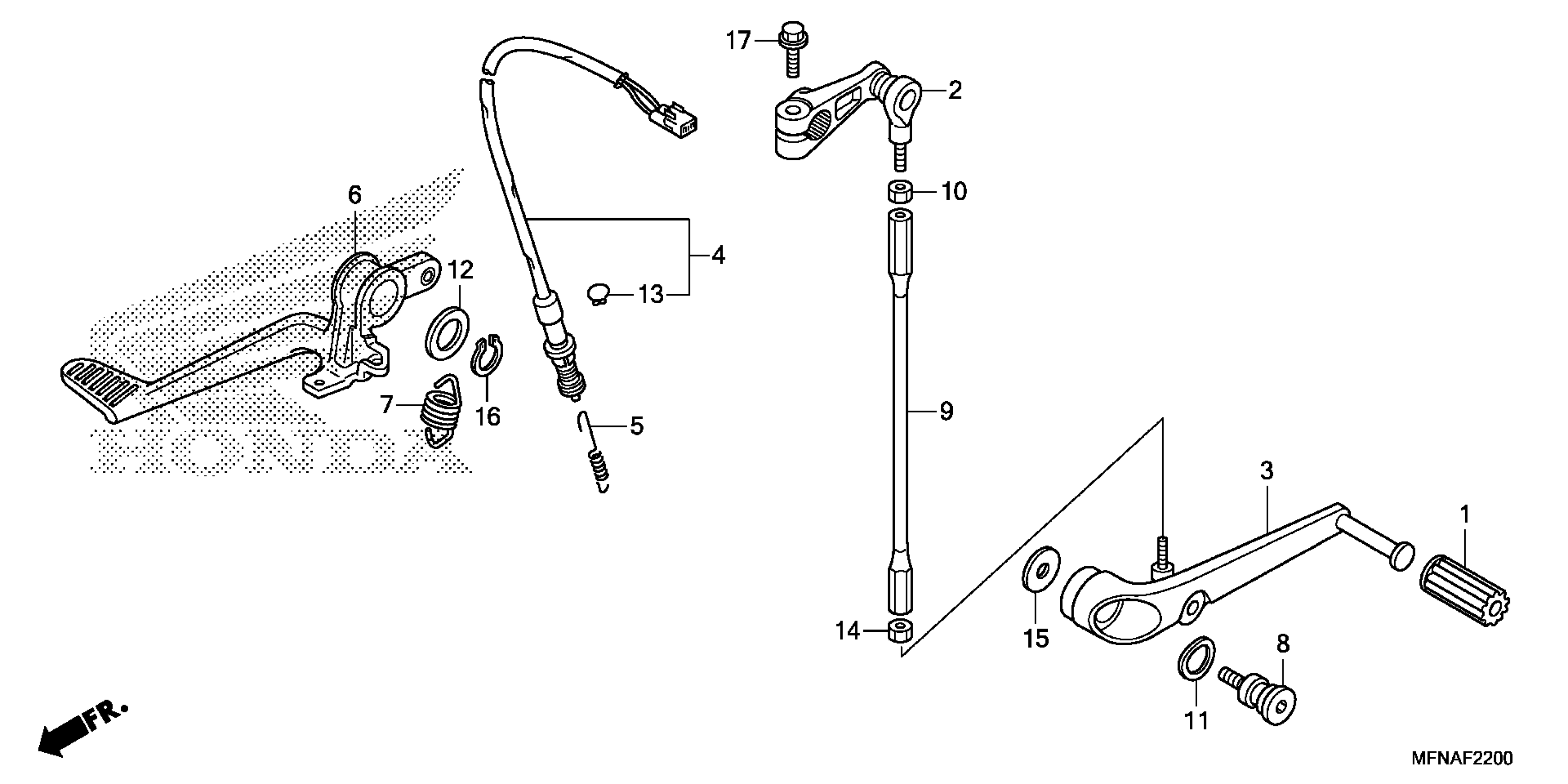

Honda CB1000R4AC (16) MOTORCYCLE, ITA, VIN# ZDCSC601-GF225001 PEDAL Diagram

RUBBER, GEARSHIFT PEDAL

24705-MR7-000

$3.76

ARM, GEARSHIFT

24710-MEE-000

$66.12

PEDAL, GEARSHIFT This part replaces 24720-MFJ-305.

24720-MFJ-D01

$84.31

SWITCH ASSY., RR. STOP

35350-MFN-D02

$51.16

SPRING, STOP SWITCH

35357-MCH-000

$2.92

PEDAL, RR. BRAKE (COO)

46500-MFN-305

$88.93

SPRING, BRAKE PEDAL

46514-MFN-D00

$1.97

BOLT, CHANGE PIVOT

90113-MCF-000

$7.96

BAR, CHANGE

90165-MFN-D00

$12.33

NUT, GOVERNOR ARM FIXING (LEFT HAND THREAD)

90201-700-000

$1.49

WASHER, CHANGE PEDAL WAVE

90505-MBW-000

$4.03

WASHER (15.2X25)

90557-230-000

$2.39

CLIP, SWITCH COVER

90601-KAF-003

$2.67

NUT, HEX. (6MM)

94001-06020-0S

$1.49

WASHER, PLAIN (8MM)

94103-08700

$1.49

CIRCLIP (OUTER) (15MM)

94511-15000

$1.49

BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)

95701-06020-00

$1.55
