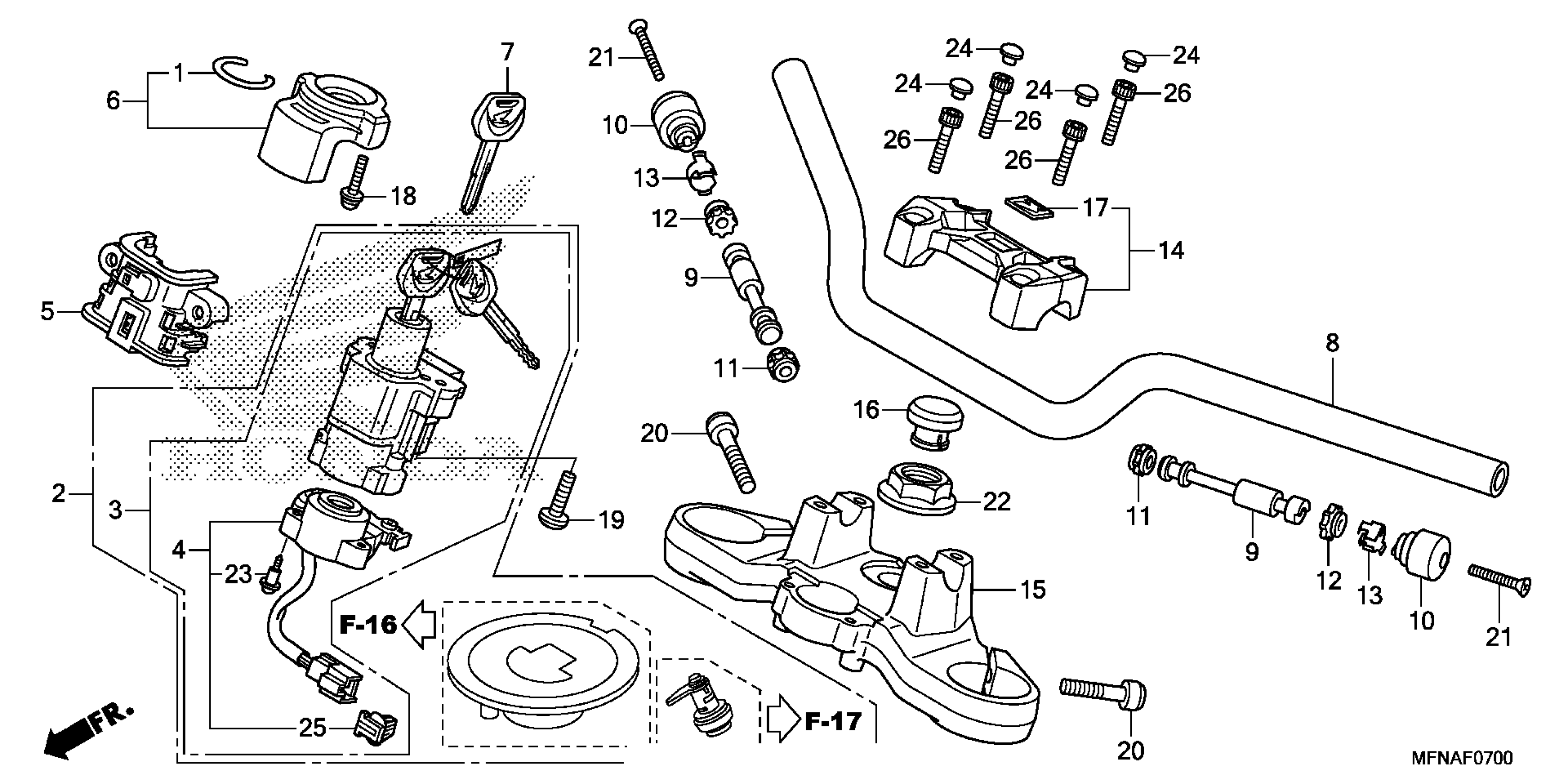

Honda CB1000R4AC (16) MOTORCYCLE, ITA, VIN# ZDCSC601-GF225001 HANDLEBAR@TOP BRIDGE Diagram

#

Description
Price

1

SEAL, IGNITION SWITCH

30433-MBW-602

$2.62

2

KEY SET This part replaces 35010-MFN-L61.

35010-MFN-L62

$384.32

3

SWITCH ASSY., COMBINATION & LOCK

35100-MFN-L61

$182.28

4

BASE, CONTACT

35101-MFN-D00

$76.46

5

GUIDE, WIRE

35105-MFN-D00

$1.81

6

COVER, COMBINATION SWITCH

35106-MFN-L61

$72.99

7

KEY, BLANK (TYPE1) | (Optional).

35121-MAS-G01

$11.69

8

HANDLEBAR

53100-MFN-710

$205.90

9

WEIGHT B, HANDLE

53104-KT7-010

$19.52

10

WEIGHT, HANDLEBAR

53105-MFJ-D00

$18.40

11

RUBBER A, HANDLE WEIGHT

53106-MFN-D60

$4.10

12

RUBBER B, HANDLE WEIGHT

53107-MFN-D60

$2.94

13

RING, HANDLE WEIGHT SNAP

53108-KR3-940

$5.36

14

HOLDER ASSY., HANDLE (UPPER)

53130-MFN-D60

$48.01

15

BRIDGE, FORK TOP

53230-MFN-D60

Unavailable

16

CAP, STEERING STEM NUT

53232-MJ4-670

$12.33

17

EMBLEM, PRODUCT (MARUI)

86150-GFC-901

$2.80

18

SCREW-WASHER (5X22)

90020-MBW-610

$2.37

19

BOLT, ONE-WAY (8MM)

90107-MBG-000

$2.80

20

BOLT, SOCKET (8X32)

90160-MN0-000

$3.93

21

SCREW, OVAL (6X50) SCREW, OVAL (6X55)

90191-MJ0-000

$3.26

22

NUT, STEERING STEM FLANGE

90304-MCF-000

Unavailable

23

SCREW, TAPPING (3X16)

91059-KY2-711

$2.83

24

CAP, SOCKET BOLT

91456-371-770

$3.31

25

CLIP, CONNECTOR (NATURAL)

91533-S04-003

$3.60

26

BOLT, SOCKET (8X32) This part replaces 96600-08032-00.

96600-08032-10

$1.91

26

BOLT, SOCKET (8X32)

96600-08032-10

$1.91
