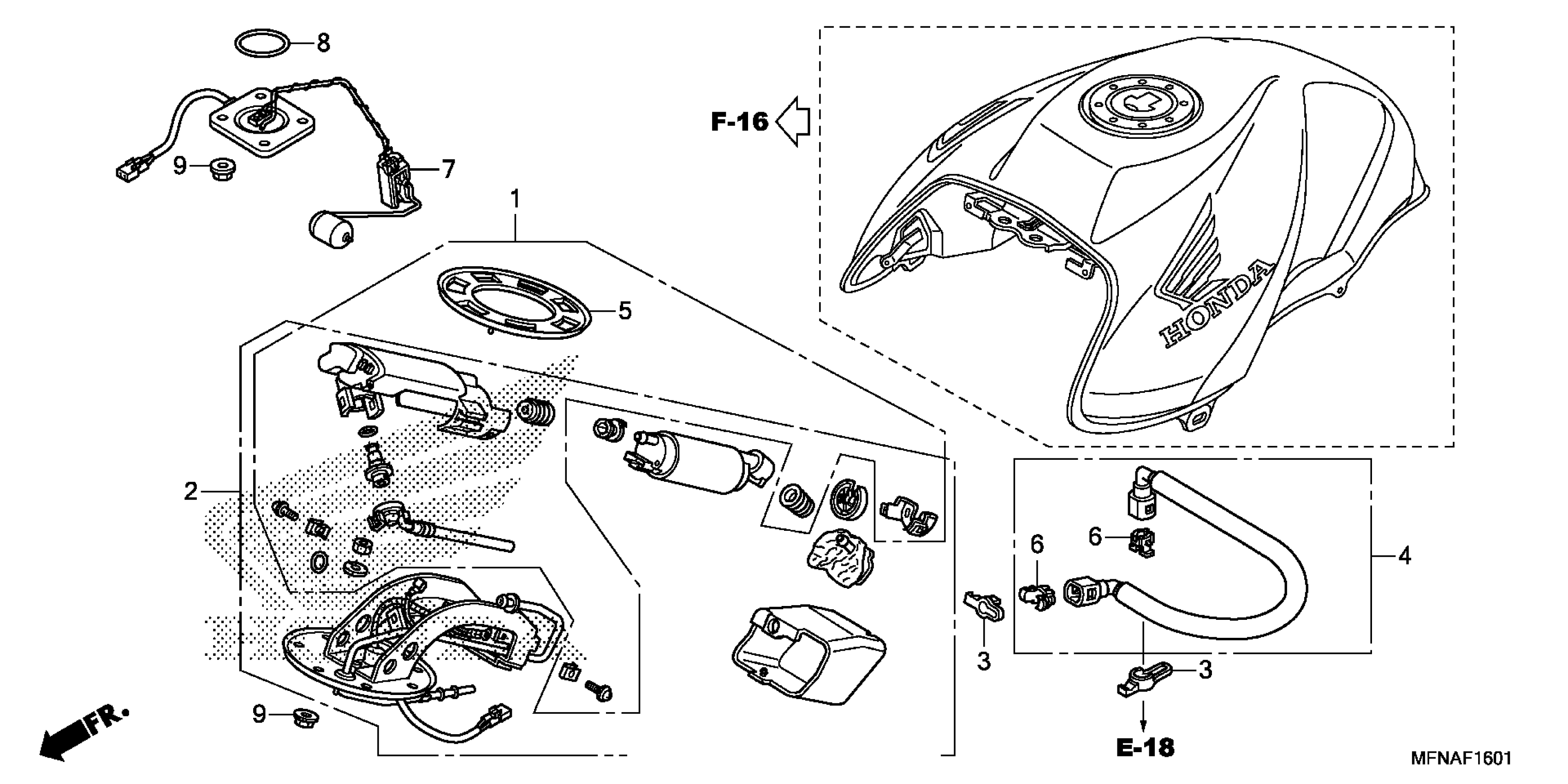

Honda CB1000R4AC (16) MOTORCYCLE, ITA, VIN# ZDCSC601-GF225001 FUEL PUMP Diagram

#

Description
Price

1

FILTER ASSY., FUEL

16011-MGJ-D01

$305.74

2

PUMP ASSY., FUEL (MSDS)

16700-MGJ-D02

$708.41

3

DAMPER, CONNECTOR

16719-MFJ-D00

$2.80

4

HOSE, FUEL FEED

17570-MFG-D01

$99.47

5

GASKET, BASE

17574-MCF-000

$14.61

6

RETAINER (BLUE GREEN) (TOKAI) (Honda Code 5928312)

17711-S0X-931

$3.15

7

FUEL UNIT

37800-MFN-D01

$98.33

8

O-RING (39.5X5)

91305-MC7-000

$3.16

9

NUT, FLANGE (6MM)

94050-06080

$0.60
