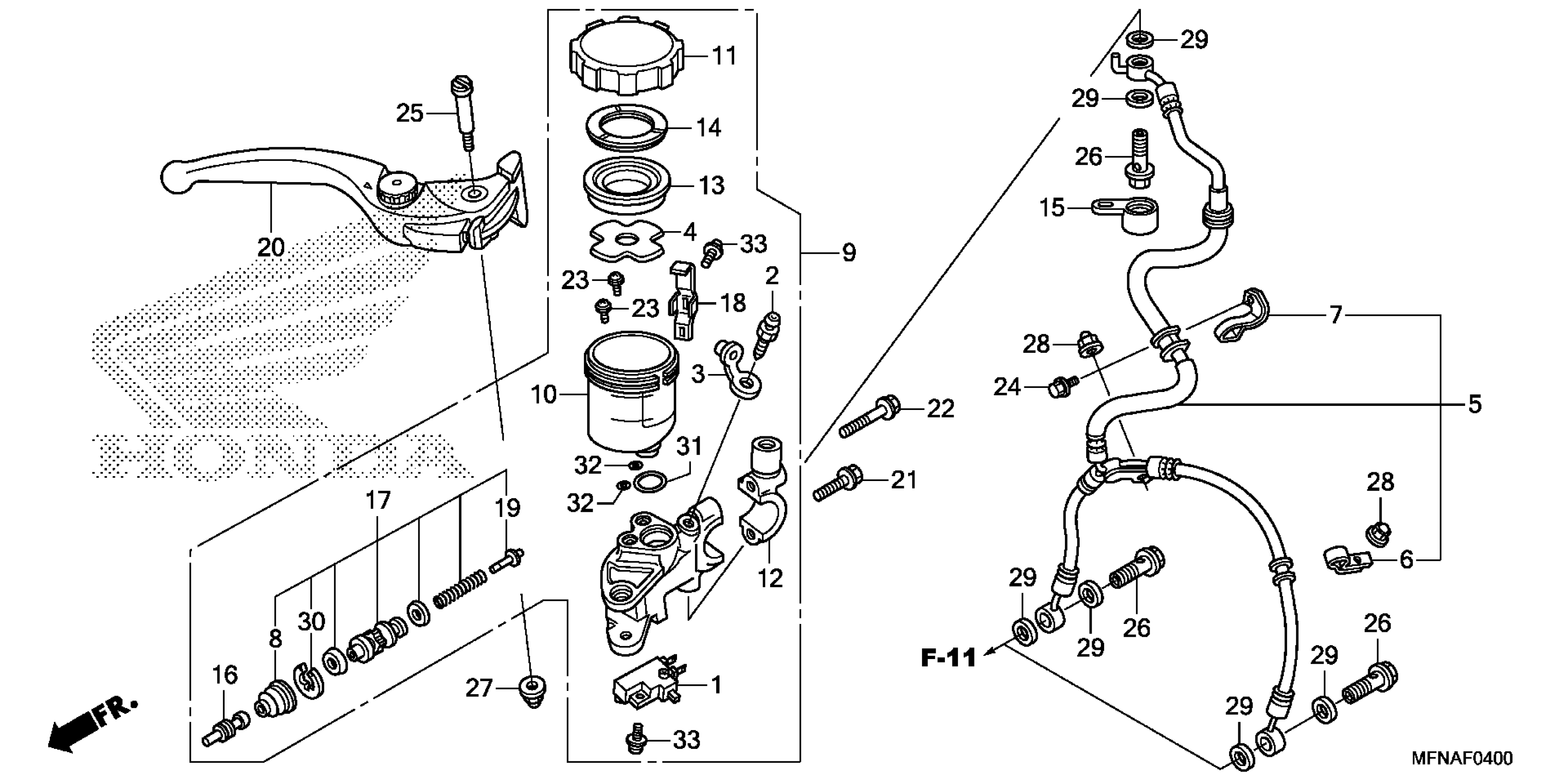

Honda CB1000R4AC (16) MOTORCYCLE, ITA, VIN# ZDCSC601-GF225001 FRONT BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MEL-003

$13.97

2

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

3

CAP, BLEEDER

43353-461-771

Unavailable

4

FLOAT, RR. MASTER CYLINDER

43523-MAH-671

$4.12

5

HOSE, FR. BRAKE

45125-MFN-D61

$74.87

6

CLAMP A, FR. BRAKE HOSE

45158-MFN-D00

$6.24

7

CLAMP B, FR. BRAKE HOSE

45159-MFN-D00

$5.84

8

BOOT

45504-MCF-006

$10.31

9

SUB ASSY FR M/C This part replaces 45510-MFN-305.

45510-MFN-D02

$412.26

10

CUP, OIL

45511-MFN-D02

$12.84

11

CAP, OIL CUP

45513-MEL-D21

$16.92

12

HOLDER, MASTER CYLINDER

45518-MFN-D01

$11.39

13

DIAPHRAGM

45520-300-000

$8.34

14

PLATE, DIAPHRAGM

45521-MJ6-006

$3.87

15

BOOT, MASTER CYLINDER

45522-MFN-D00

$4.25

16

ROD, PUSH

45525-MEL-016

$13.09

17

MASTER CYLINDER SET

45530-MFN-D01

$48.25

18

PLATE, STOP

45535-MR8-901

$5.20

19

GUIDE, SPRING

46140-MEL-006

$4.10

20

LEVER ASSY., R. HANDLE This part replaces 53170-MEL-305.

53170-MEL-006

$46.84

21

BOLT, FLANGE (6X22)

90101-MBZ-G00

$1.32

22

BOLT, FLANGE (6X32)

90101-MFN-D00

$2.31

23

SCREW, TRIPLE (4X11)

90101-MR7-006

$2.87

24

BOLT, FLANGE (6X10)

90102-MW3-600

$1.28

25

BOLT, HANDLE LEVER

90114-MCF-006

$5.56

26

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.99

27

NUT, CAP (6MM)

90201-415-000

Unavailable

28

NUT, CAP (L. SIDE ONLY)

90201-428-900

$2.06

29

WASHER, OIL BOLT

90545-300-000

$5.79

30

CIRCLIP

90651-MCF-006

$2.09

31

O-RING (14.8X2.4)

91212-422-006

$2.37

32

O-RING (5.8X1.9) (NISSIN)

91355-MG9-006

$3.00

33

SCREW-WASHER (4X12)

93893-04012-07

$1.32

33

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.32
