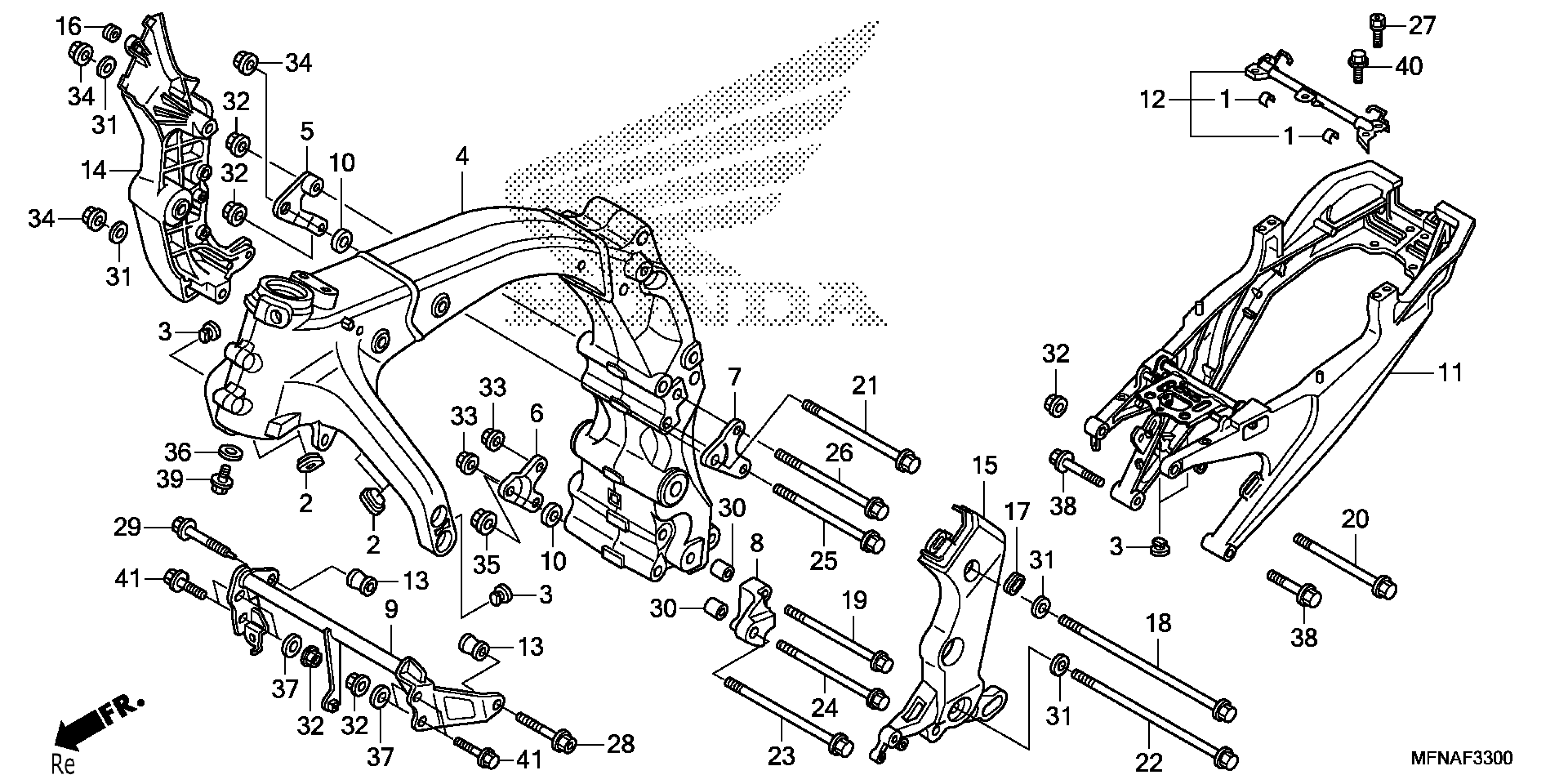

Honda CB1000R4AC (16) MOTORCYCLE, ITA, VIN# ZDCSC601-GF225001 FRAME Diagram

#

Description
Price

1

PROTECTOR

16911-MAH-300

$5.91

2

GROMMET, RR. RADIATOR COVER

19111-MFG-D00

$0.42

3

RUBBER, STOPPER

47117-196-000

$2.55

4

FRAME *NH303M* (MAT AXIS GRAY METALLIC)

50100-MFN-L60ZA

Unavailable

5

PLATE B, R. ENGINE HANGER

50125-MFN-D00

$19.41

6

PLATE C, R. ENGINE HANGER

50126-MFN-D00

$8.61

7

PLATE B, L. ENGINE HANGER

50127-MFN-D00

$5.90

8

BRACKET C, L. ENGINE HANGER

50128-MFN-D00

$53.46

9

HANGER, FR. ENGINE

50130-MFN-L60

$124.20

10

COLLAR, ENGINE HANGER

50192-MFN-D00

$5.83

11

RAIL ASSY., SEAT *NH303M* (MAT AXIS GRAY METALLIC)

50200-MFN-D60ZA

$556.67

12

PIPE, CENTER CROSS

50204-MFN-D60

$34.35

13

COLLAR, FR. ENGINE HANGER

50350-MFN-D60

$6.83

14

BRACKET, R. PIVOT *R348* (HYPER RED)

50600-MFN-D00ZF

$264.88

15

BRACKET, L. PIVOT *R348* (HYPER RED)

50700-MFN-D00ZF

$296.88

16

GROMMET, SIDE COVER (16MM ATTACHES PROTECTOR SET, SIDE TO COVER, PILLION STEP)

83501-MG7-000

$2.38

17

GROMMET A, SIDE COVER

83601-MB0-000

$4.20

18

BOLT, FLANGE (12X306)

90101-MFG-D00

$15.16

19

BOLT, FLANGE (10X190)

90102-MER-R60

$6.26

20

BOLT, ENGINE HANGER

90103-162-000

$10.93

21

BOLT, FLANGE (12X186)

90103-MFN-D00

$13.88

22

BOLT, ENGINE HANGER (12X312)

90104-MFA-D00

$12.25

23

BOLT, FLANGE (12X216)

90104-MFN-D00

$14.29

24

BOLT, FLANGE (10X196)

90105-MFN-D00

$6.33

25

BOLT, FLANGE (10X164)

90106-HN8-000

$5.57

26

BOLT, FLANGE (10X180)

90106-KJ9-000

$9.67

27

BOLT, SPECIAL (8MM)

90115-MJ1-830

$2.41

28

BOLT, FLANGE (12X65)

90164-MFG-D00

$9.22

29

BOLT, FLANGE (12X80)

90164-MFN-L60

$20.87

30

PIN, DOWEL (10X16)

90199-MBW-000

$2.95

31

WASHER, PLAIN (12MM)

90440-GT4-970

$2.38

32

NUT, FLANGE (10MM)

94050-10000

$1.41

33

NUT, FLANGE (10MM)

90303-428-900

$3.12

33

NUT, FLANGE (10MM) This part replaces 94050-10070.

90303-428-900

$3.12

34

NUT, FLANGE (12MM)

94050-12000

$0.94

35

NUT, FLANGE (12MM)

94050-12070

$1.23

36

WASHER, PLAIN (6MM)

94101-06700

$0.86

37

WASHER, PLAIN (10MM)

94101-10000

Unavailable

38

BOLT, FLANGE (10X62) BOLT, FLANGE (10X65)

90151-HC5-000

$7.22

38

BOLT, FLANGE (10X62) This part replaces 95801-10065-00.

90151-HC5-000

$7.22

39

BOLT, FLANGE (6X8)

96001-06008-07

$0.86

40

BOLT, FLANGE (8X16)

96300-08016-00

$1.28

41

BOLT, FLANGE (10X40)

96300-10040-00

$2.80
